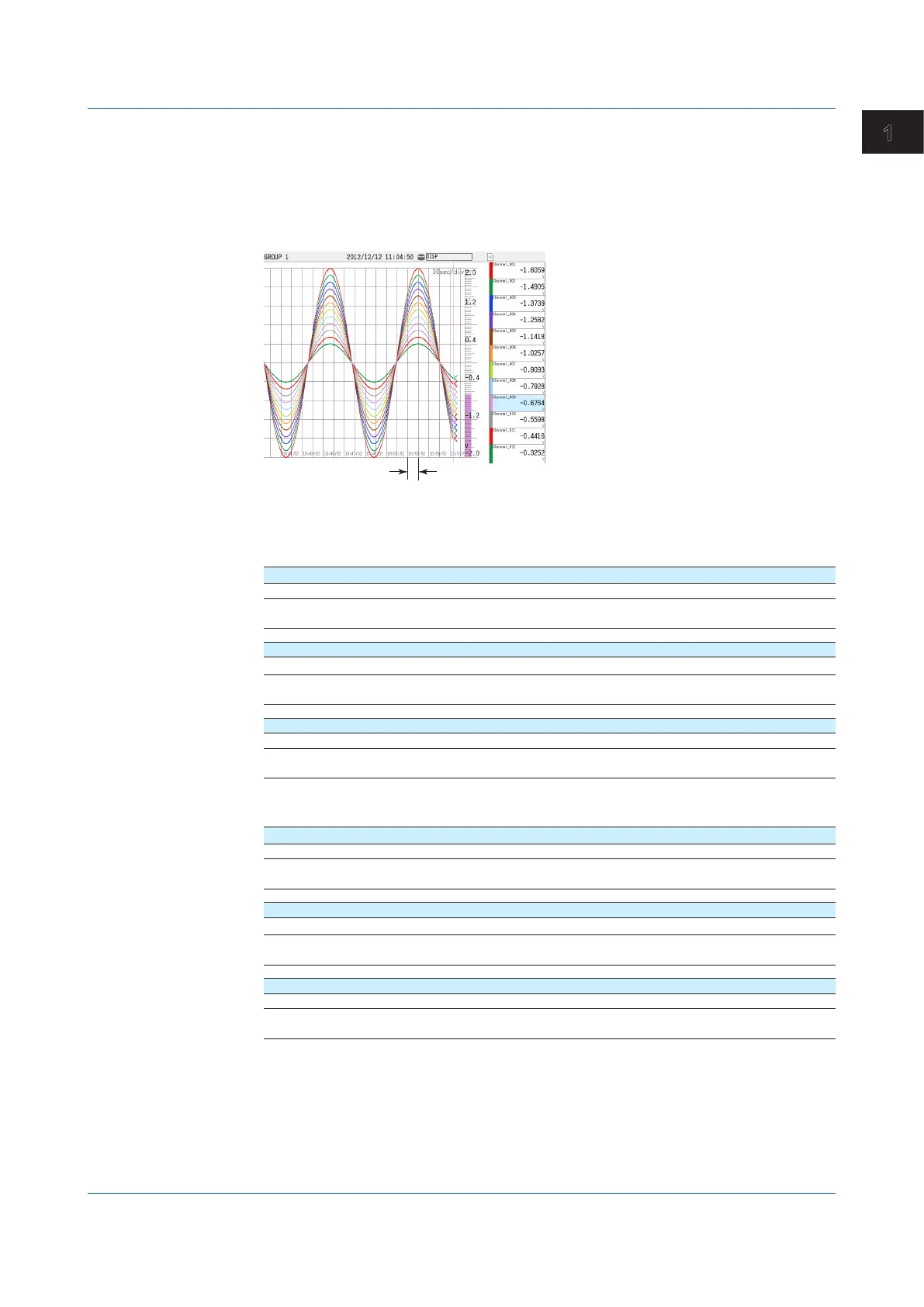

Waveform Updating
On the screen, 30 dots along the time axis is represented by a unit called division.
The displayed waveform is updated at an interval corresponding to one dot. This interval is
determined by the specified recording interval (which corresponds to one division referred to
as the trend interval).
The table below shows the relationship between the trend interval and the speed of
movement of waveforms on the screen.
1 div
Trend Interval and the Speed of Movement of Waveforms
GX20/GP20
RecordingInterval(Trendinterval) 5 s
1
10 s
1
15 s 30 s 1 min
Time corresponding to one dot (s) 0.1 0.2 0.5 1 2
Speed of waveform movement
(approximation in mm/h)
11070 5535 2214 1107 554
RecordingInterval(Trendinterval) 2 min 5 min 10 min 15 min 20 min
Time corresponding to one dot (s) 4 10 20 30 40
Speed of waveform movement
(approximation in mm/h)
277 111 55 37 28
RecordingInterval(Trendinterval) 30 min 1 h 2 h 4 h 10 h
Time corresponding to one dot (s) 60 120 240 480 1200
Speed of waveform movement
(approximation in mm/h)
18 9.2 4.6 2.3 0.9
1 50 dots per division
GX10/GP10
RecordingInterval(Trendinterval) 5 s
1
10 s
1
15 s 30 s 1 min
Time corresponding to one dot (s) 0.1 0.2 0.5 1 2
Speed of waveform movement
(approximation in mm/h)
6534 3267 1307 653 327
RecordingInterval(Trendinterval) 2 min 5 min 10 min 15 min 20 min
Time corresponding to one dot (s) 4 10 20 30 40
Speed of waveform movement
(approximation in mm/h)
163 65 33 22 16
RecordingInterval(Trendinterval) 30 min 1 h 2 h 4 h 10 h
Time corresponding to one dot (s) 60 120 240 480 1200
Speed of waveform movement
(approximation in mm/h)
11 5.4 2.7 1.4 0.5
1 50 dots per division
