2.2.4 DisplayingtheMultiPanel(GX20/GP20only)
You can divide the screen into several areas and assign the displays of your choosing to the
areas.
There are nine display division patterns available.
You can set up to 20 multi panels.
Procedure
Displaying the Multi Panel
1 Press MENU.
The menu screen appears.
2 Tap the Browse tab and then Multi panel.
The multi panel appears.
Operation complete
SwitchingtheMultiPanel
1 Press MENU.
The menu screen appears.

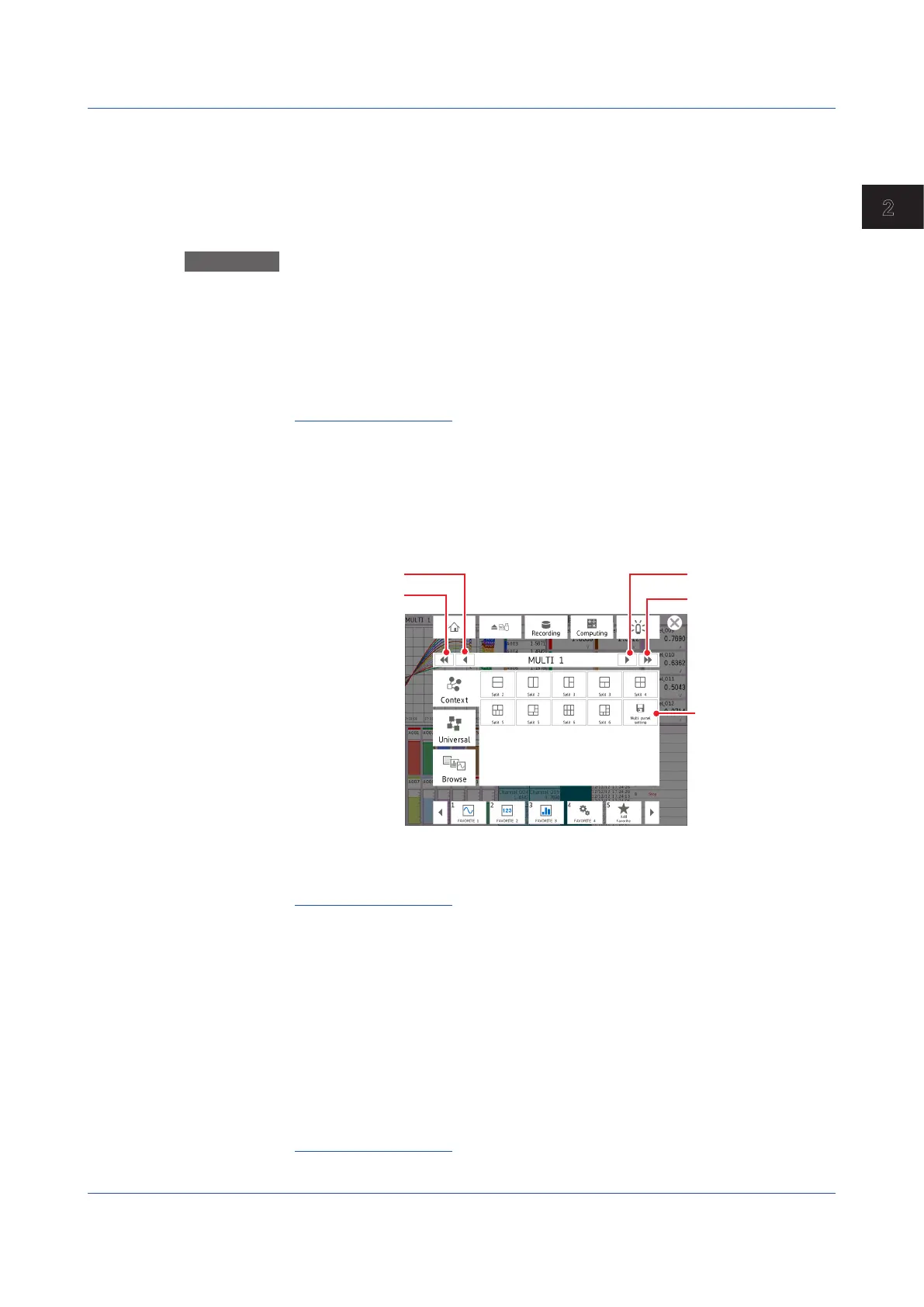

2 Tap the multi panel switch icons to change the multi panel.
The selected multi panel appears.
Goes back 1 screen
Goes back 10 screens
Advances 1 screen
Advances 10 screens
Register screens.
3 Tap the Close icon to close the menu screen.
Operation complete
Changing the Number of Areas on the Multi Panel
1 Press MENU.
The menu screen appears.
2 Tap the Context tab.
3 Tap a multi panel icon.
The multi panel with the selected number of areas appears.
4 Tap the Close icon to close the menu screen.
Operation complete
