York XT AHU - ENERGY RECOVERY WHEEL OPERATION AND TEMPERATURE LIMITS

To Next Page

To Previous Page

JOHNSON CONTROLS

FORM 102.20-OM2

ISSUE DATE: 6/01/2015

SECTION 2 - START-UP AND OPERATION

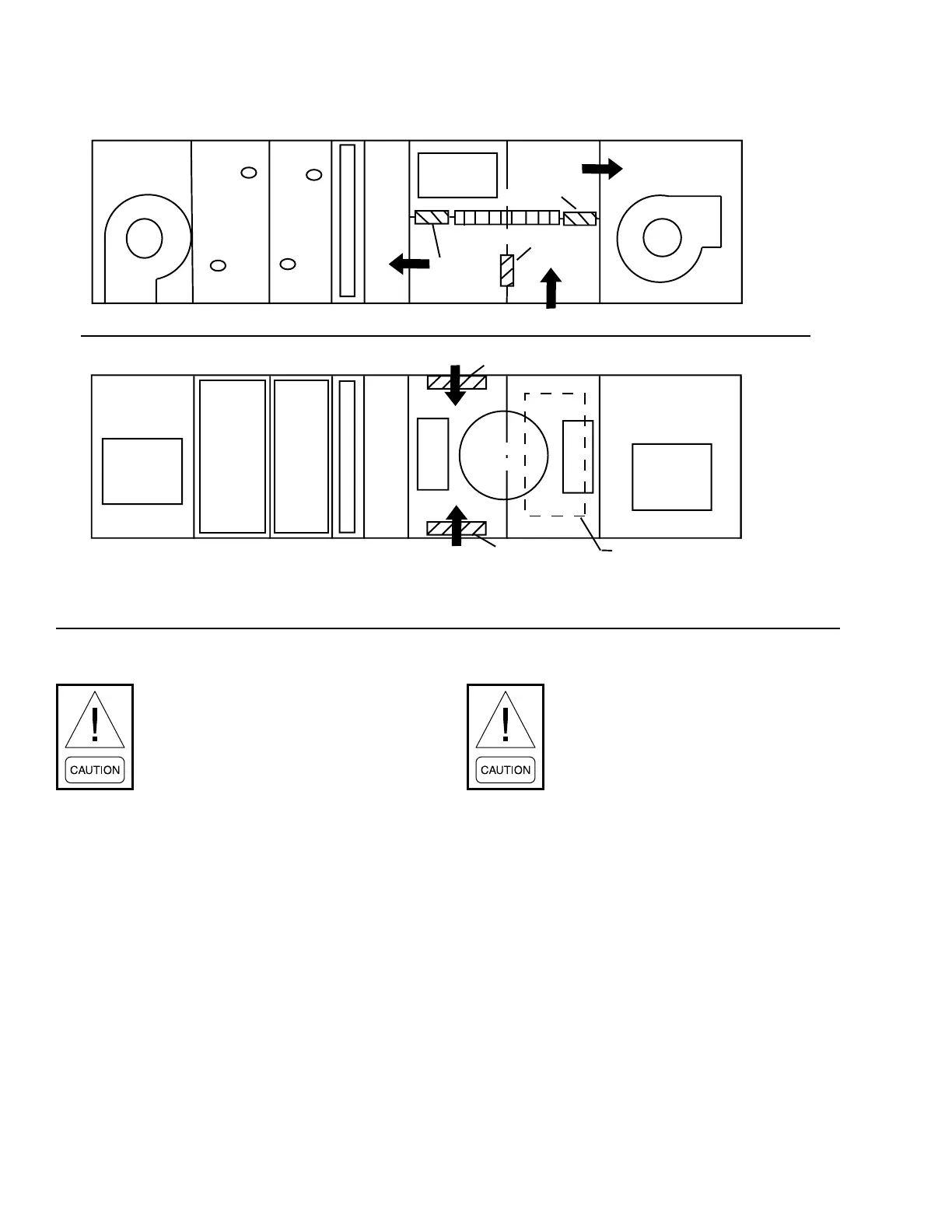

FIGURE 22 - HORIZONTAL WHEEL FOR OUTDOOR AHU

LD09641a

Elevation View

Plan (Top) View

Supply Fan

Cooling

Coil

Cooling

Coil

Heating

Coil

Heating

Coil

Filter

AccessAccess

Engery

Wheel

Engery

Wheel

O/A Damper

Return Air

R/A Damper

O/A

Bypass

E/A Bypass

O/A Damper

Exhaust Fan

When the AHU is operating normally or

temporarily, the energy recovery wheel

must rotate to prevent clogging.

Many energy recovery wheels are sus-

ceptible to damage if the AHU reaches a

maximum temperature, which can occur

if the heating valve remains open when the

AHU is off. The maximum temperatures

across energy recovery wheels:

1. Thermotech - 140°F

2. Innergy Tech - 122°F

3. NovelAire

Technologies - 200°F

4. Airxchange

- 170°F
