York XT AHU - TYPICAL AHU WIRING DIAGRAM

To Next Page

To Previous Page

JOHNSON CONTROLS

FORM 102.20-OM2

ISSUE DATE: 6/01/2015

SECTION 2 - START-UP AND OPERATION

Connect Signal

Generator here for test

and start up

Jumper may be

required here for test

and start up

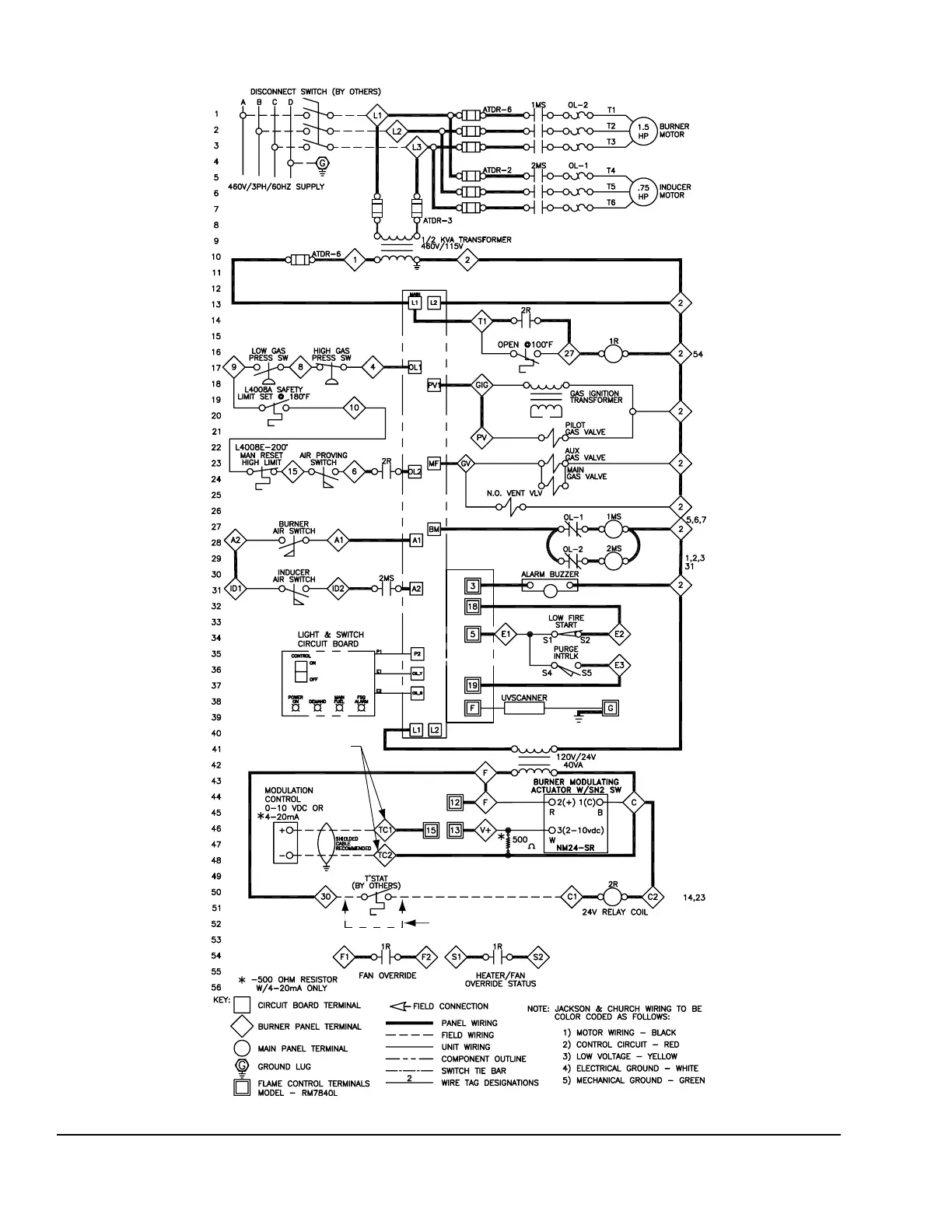

FIGURE 36 - TYPICAL WIRING DIAGRAM

LD13315
