JOHNSON CONTROLS
65
SECTION 3 - MAINTENANCE
FORM 102.20-OM2
ISSUE DATE: 6/01/2015
3

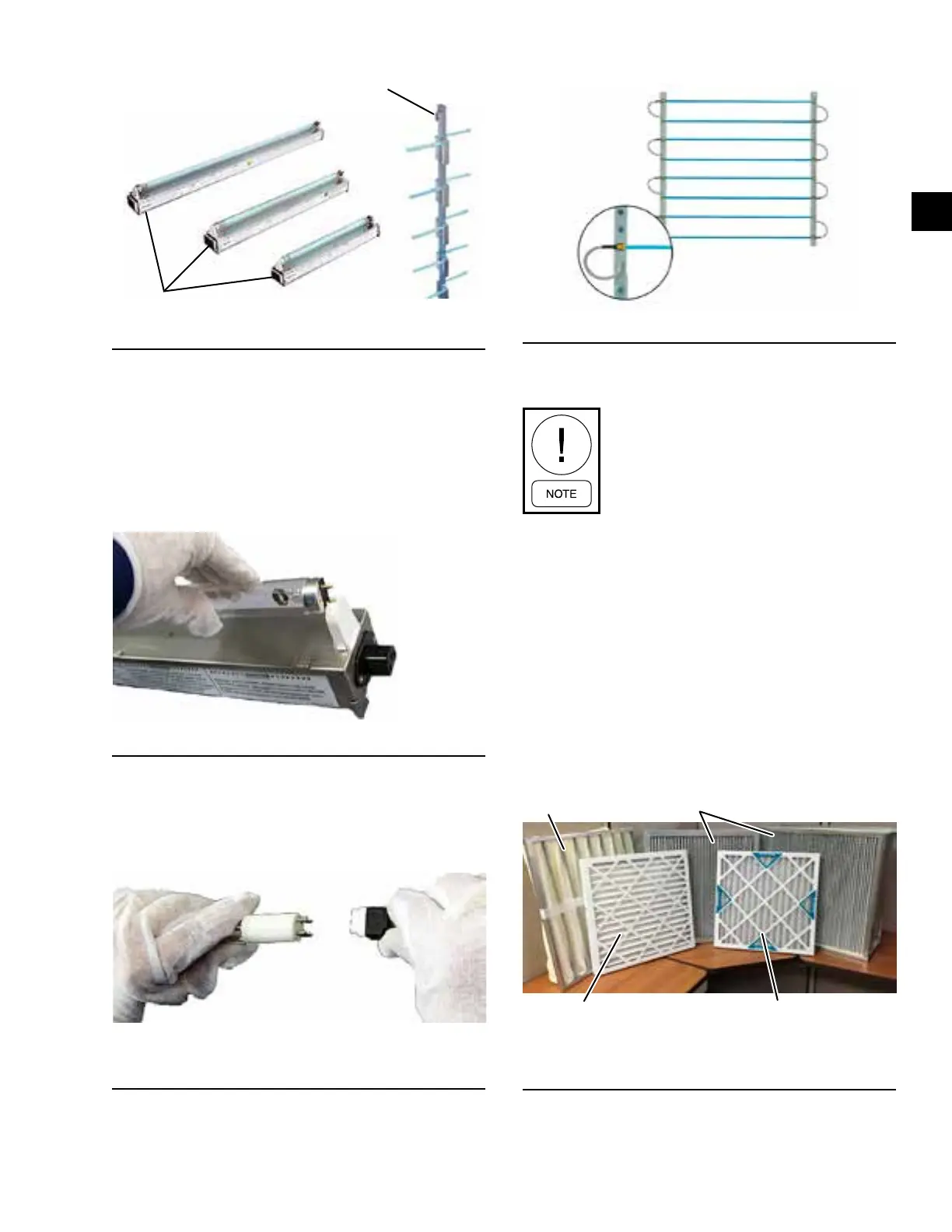

UV LIGHT LAMPS
UV LIGHT LAMPS
(INSTALLED BY CONTRACTOR)
UV Light Lamps
UV Light Lamps Installed
FIGURE 61 - UV LAMPS
LD16516
Three Types of Lamps
Three different types of UV lamps are used in AHUs:
V-Mod, V-Ray, and V-Max Grid.
V-Mod Lamps - Install the two-pronged lamps into
the slotted fixtures as shown in Figure 62 on page
65, then rotate the lamp 90°.
FIGURE 62 - INSTALLING V-MOD LAMP
LD16551
V-Ray and V-Max Grid Lamps - Fit the four-pronged
lamp into the clamp mounted on the UV segment
where a pigtail is installed. Insert the prongs into the
pigtail plug.
FIGURE 63 - INSTALLING V-RAY AND V-MAX GRID
LAMPS
LD16552
FIGURE 64 - V-MAX GRID LAMPS
V_Max
MAINTAINING AND REPLACING FILTER
SEGMENTS
A list of lter part numbers, sizes and
quantities are shown on a label located on
each lter segment of each AHU.
Every month, check the cleanliness of the filters, and
if necessary, replace them. Filters should be replaced
when the pressure drop, measured by a manometer,
reaches the prescribed limits for the installation.
Filter Types
Flat, angle, rigid, bag, HEPA and charcoal are the typi-
cal filter types as shown in Figure 65 on page 65.
If your AHU has HEPA filters, the filter frames, bulk-
heads and segment panels are factory sealed, and must
remain sealed for NO air bypass.
Multi-Sak
Bag Filter
Multi-Pleat Elite
2 in. Pleated Filter
Multi-Pleat XL8
2 in. Pleated Filter
Multi-Cell
12 in. Rigid Filter
FIGURE 65 - TYPICAL FILTER TYPES
LD09650a
