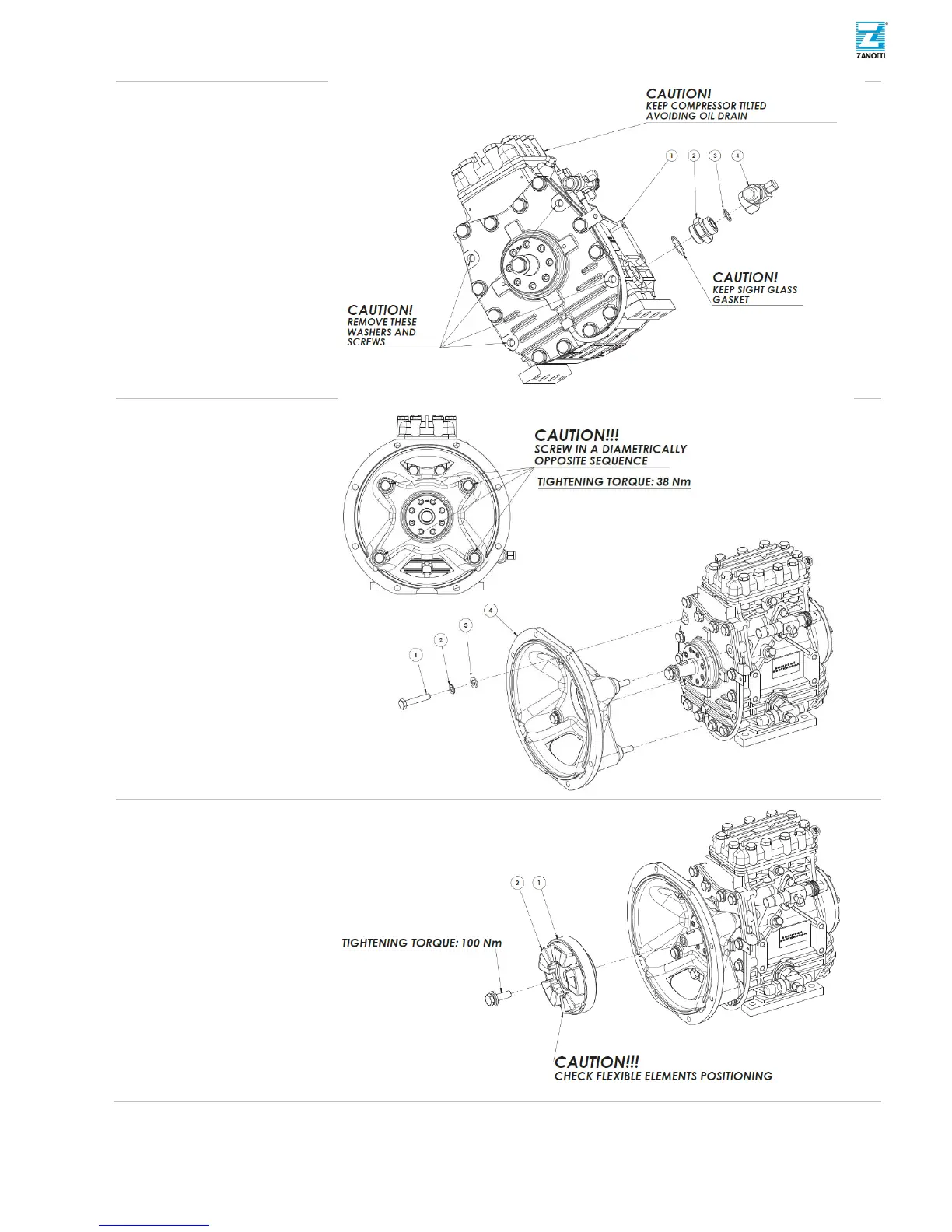

3.10 Alternative Road
Compressor
Cooling Circuit
(l) Dismount oil return shut
off valve.
(m) Install oil return shut off
valve on new
comp
ress
or.
(n) Remove 4 screws from
new roa
d compressor.
(o) Install bell-housing on
to a new com
pressor.
CAUTION
! With a
rubber hammer ensure bell
housing contact with
compressor.
CAUTION
! Screw in a
diametri- cally opposite
sequence.
CAUTION
! Tightening
Torque: 38N m (336lb−in).
(p) Connect junction hub to
comp
ress
or.
CAUT
ION
! CHECK
FLEXIBLE ELEMENTS
POSITIONING
(q) Check and eventually
replaceflexible
eleme
nts.
