OPERATION
Axio Observer TFT display touchscreen on the Axio Observer 7, 7 materials ZEISS
12/2016 431004-7244-001 123
5.11.5.4 Virt. Reflector
Instructions for the virtual reflector wheel can be
found in the separate Quick Reference Guide for
the filter wheel excitation 8-pos. mot. and dual
filter wheel mot. (452358-7044-001).
5.11.5.5 Optovar
This tab will not be displayed if there is
no motorized Optovar turret installed.
If an equipped Optovar turret is fitted, the available
magnifications are displayed.
• Touch the button for the Optovar required to
move it into the optical path.

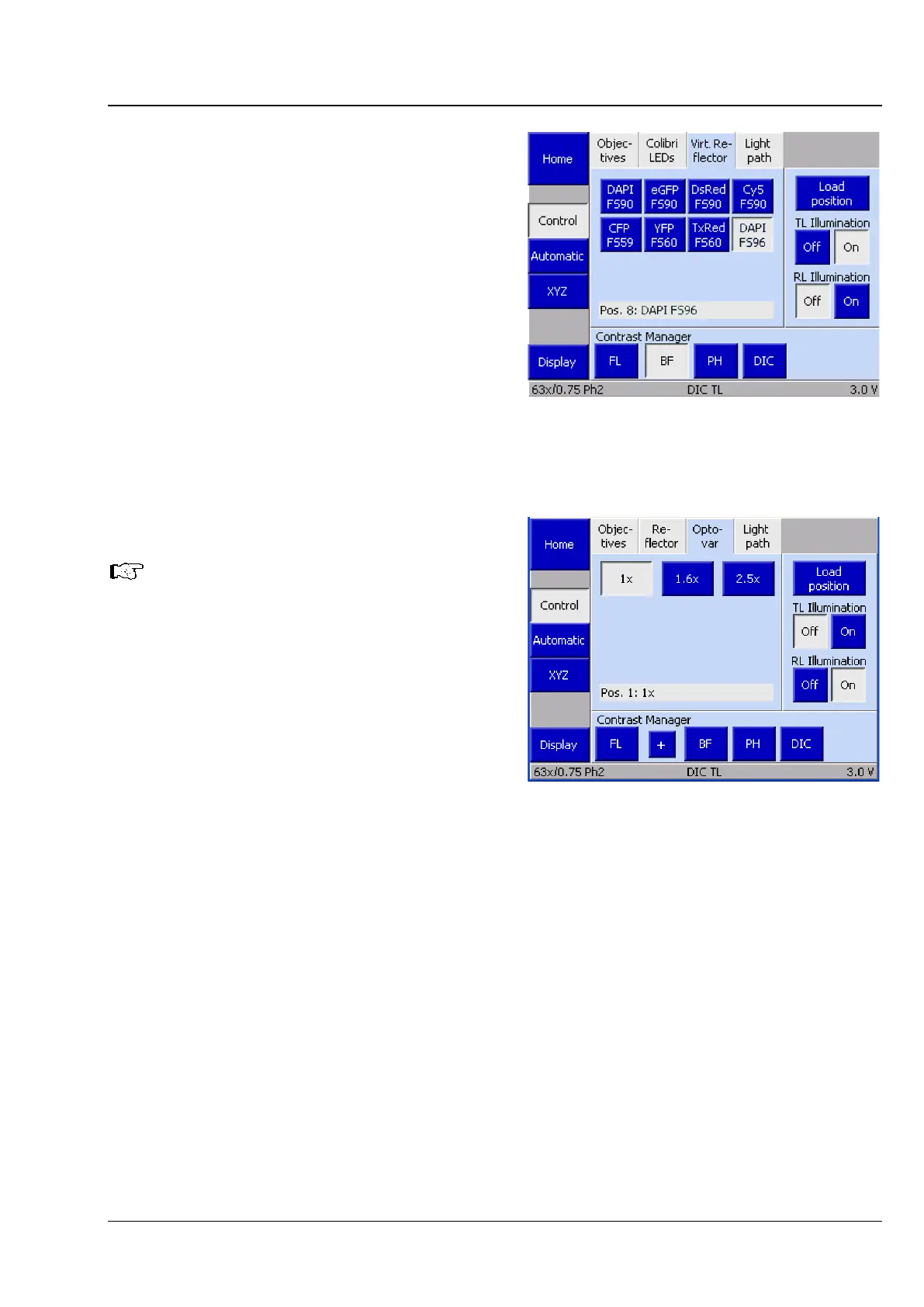

Fig. 103 Microscope -> Control -> Virt.
Reflector page
Fig. 104 Microscope -> Control -> Optovar
page
