4.23 HBO 100 illuminator
4.23.1 Inserting the HBO 103 W/2 mercury vapor short-arc bulb
For safety reasons, the HBO 100 illuminator and the HBO 103 W/2 mercury vapor short-arc bulb are
packed separately.
The first step in setting up the illuminator is therefore to insert the HBO 103 W/2 bulb into the lamp
housing.
Instructions on inserting or replacing the HBO 103 W/2 bulb can be found in the operating manual
supplied with the illuminator.
An FL attenuator, discrete (manual or motorized) should be fitted into reflected-light
illuminator FL to change the transmission.
4.23.2 Fitting the HBO 100 illuminator
• Remove the cover from the reflected light
socket (Fig. 54/3).
• Insert the dovetail of the lamp housing
(Fig. 54/1) into the reflected light socket
(Fig. 54/3) on the rear of the instrument and
tighten the clamping screw (Fig. 54/2) using the
3 mm ball-headed screwdriver.
• Insert the multi-pin plug of the HBO 100
illuminator (Fig. 54/6) into the device socket
(Fig. 54/5) on the HBO 100 power supply unit
(Fig. 54/4) and secure with the coupling ring.
• Insert the power supply cable (Fig. 54/8) into
the power connector (Fig. 54/7) on the
HBO 100 power supply unit, then insert the
cable plug into a mains socket.

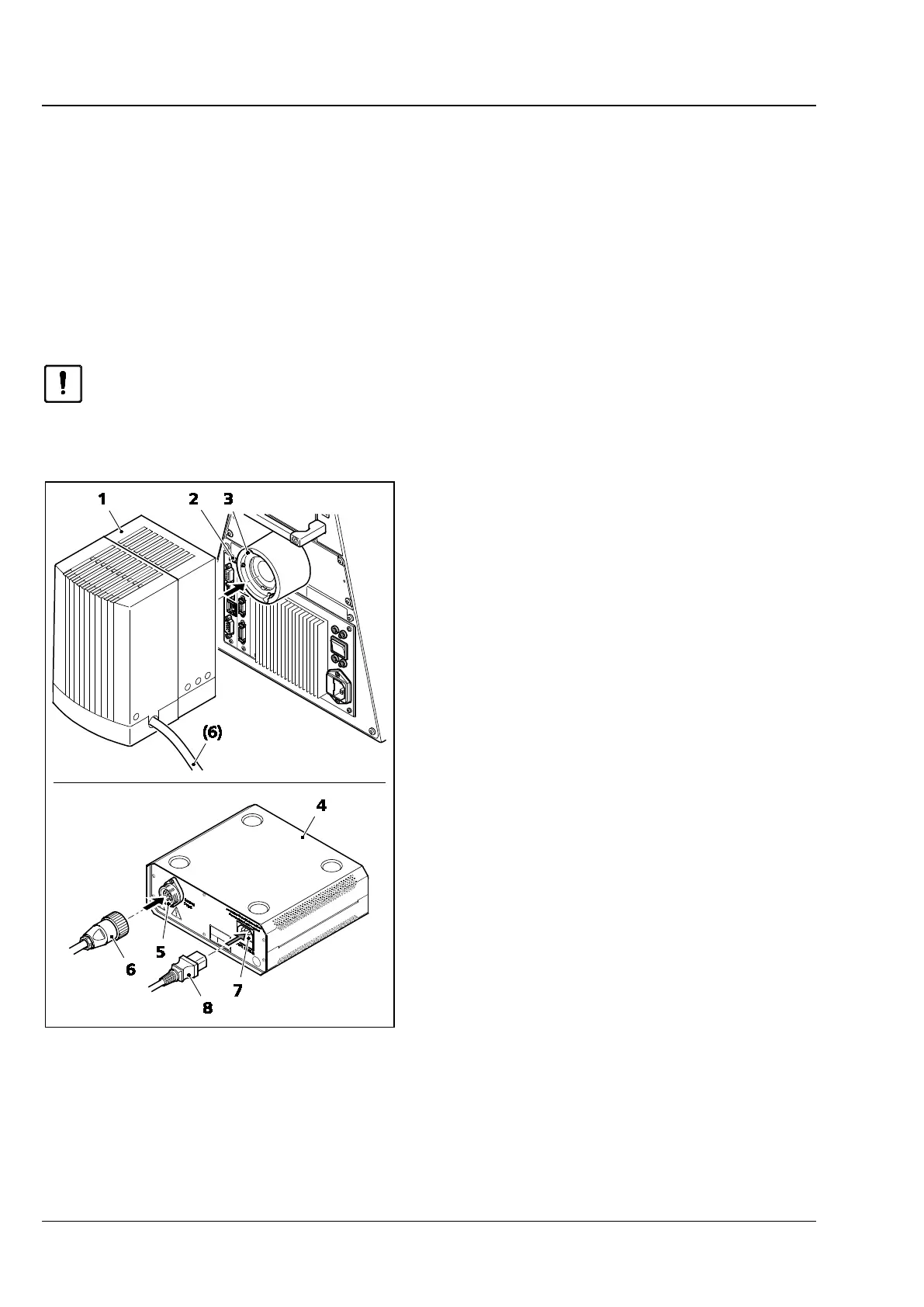

Fig. 54 Power supply unit (ballast unit) for
HBO 100
