OPERATION
Carl Zeiss Illumination and contrasting techniques Axiovert 200
3-30 B 40-080 e 03/01

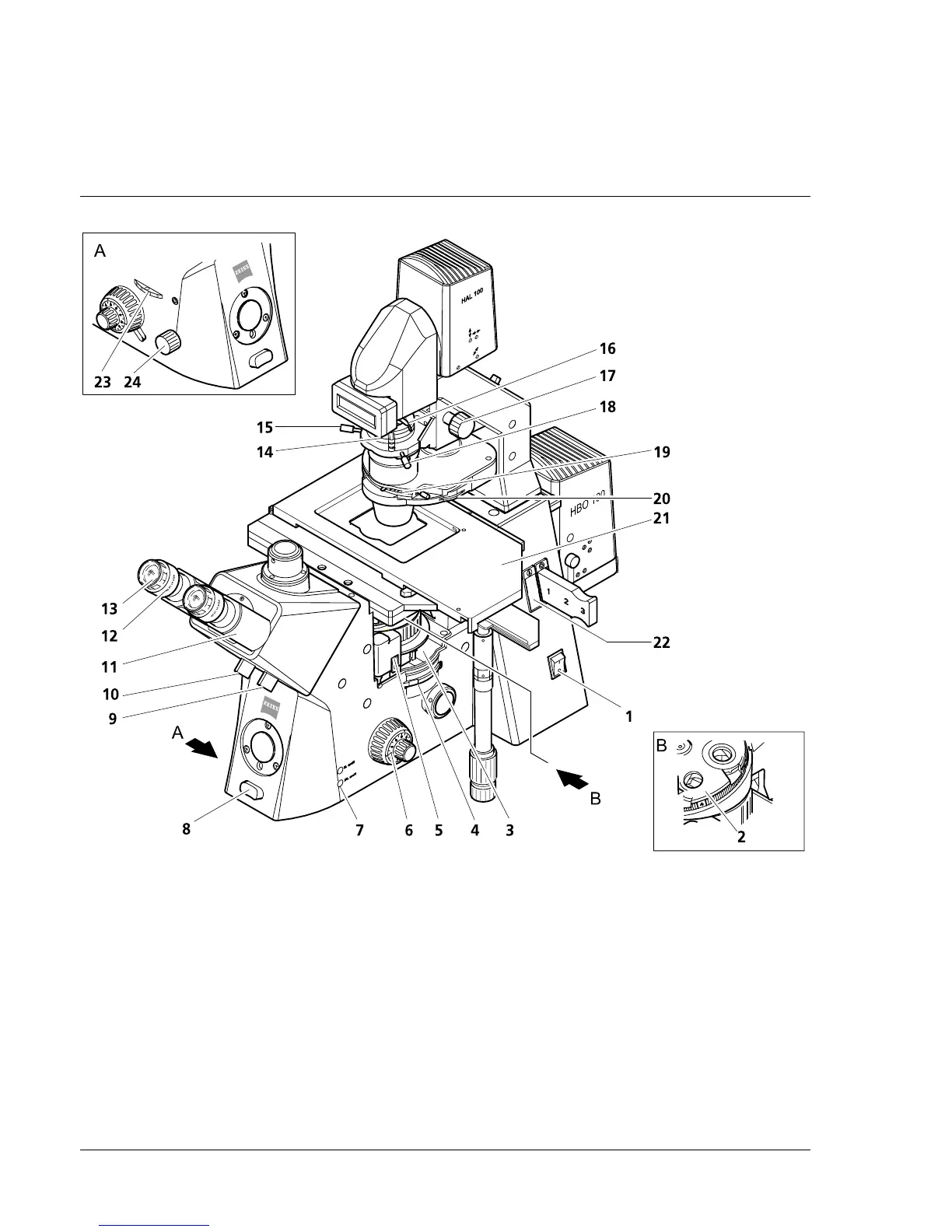

1 On / Off switch
2Nosepiece
3 Compartment for slider
analyzer
4 Setting wheel for Optovar turret
5 Reflector turret
6 Focusing drive coarse / fine
7 HAL on/off key
8 Toggle switch for illumination
intensity
9 Rotary or slider knob for
vis / doc beam splitting
10 Rotary or slider knob for Bertrand
lens and manual shutter
11 Binocular component of the tube
12 Setting ring of eyepiece
13 Eyepiece
14 Polarizer D with 2-position filter
changer
15 Centering screw for condenser
16 Adjusting lever of luminous-field
diaphragm
17 Setting knob for vertical
adjustment of the condenser
18 Centering screw for condenser
19 Turret of condenser
20 Setting wheel for aperture stop
on the condenser
21 Microscope stage
22 Compartment for aperture stop
slider
23 Setting wheel for Sideport
24 Setting knob for
Frontport / Baseport
Fig. 3-16 Axiovert 200
