Suspension
Front Suspension 40-13
40

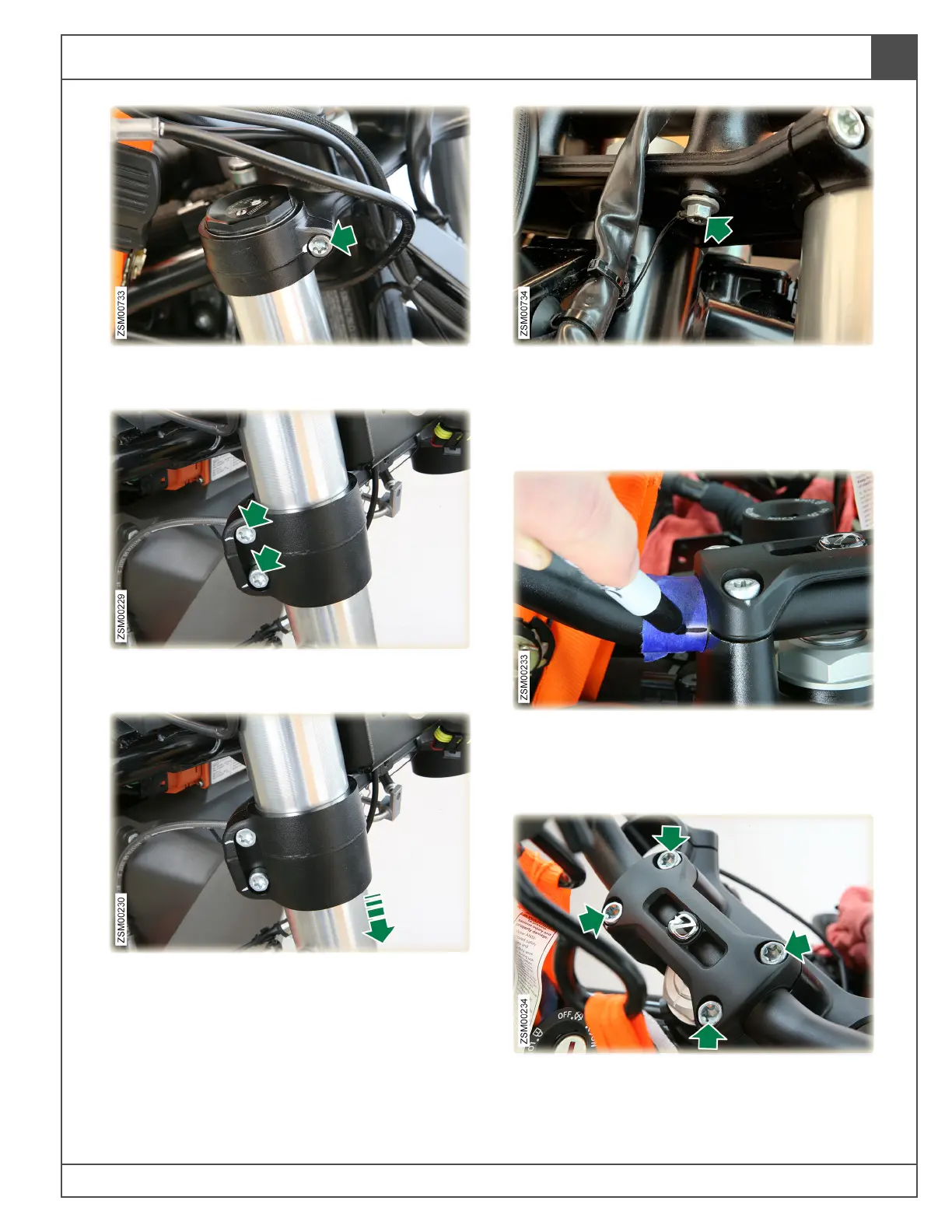

15. Loosen right front suspension upper clamp
bolt. Tool: T45. Torque: 16 lb-ft (22 Nm).
16. Loosen right front suspension lower clamp
bolt. Tool: T45. Torque: 16 lb-ft (22 Nm).
17. Slide the right front suspension out through
the bottom.
18. Remove bolt capturing harness ground wire to
the upper triple clamp. Collect star washer
located between ground cable eyelet and
upper triple clamp. Tool: T30. Torque: 8 lb-ft
(11 Nm).
19. Wrap tape around handlebar and mark the
parting line of the handlebar clamp, to ensure
the handlebars can be re-installed in their
original location and angle.
20. Remove handlebar clamp bolts (x4) securing
handlebar to upper triple clamp. Tool: T45.
Torque: 19 lb-ft (26 Nm).
To Next Page
