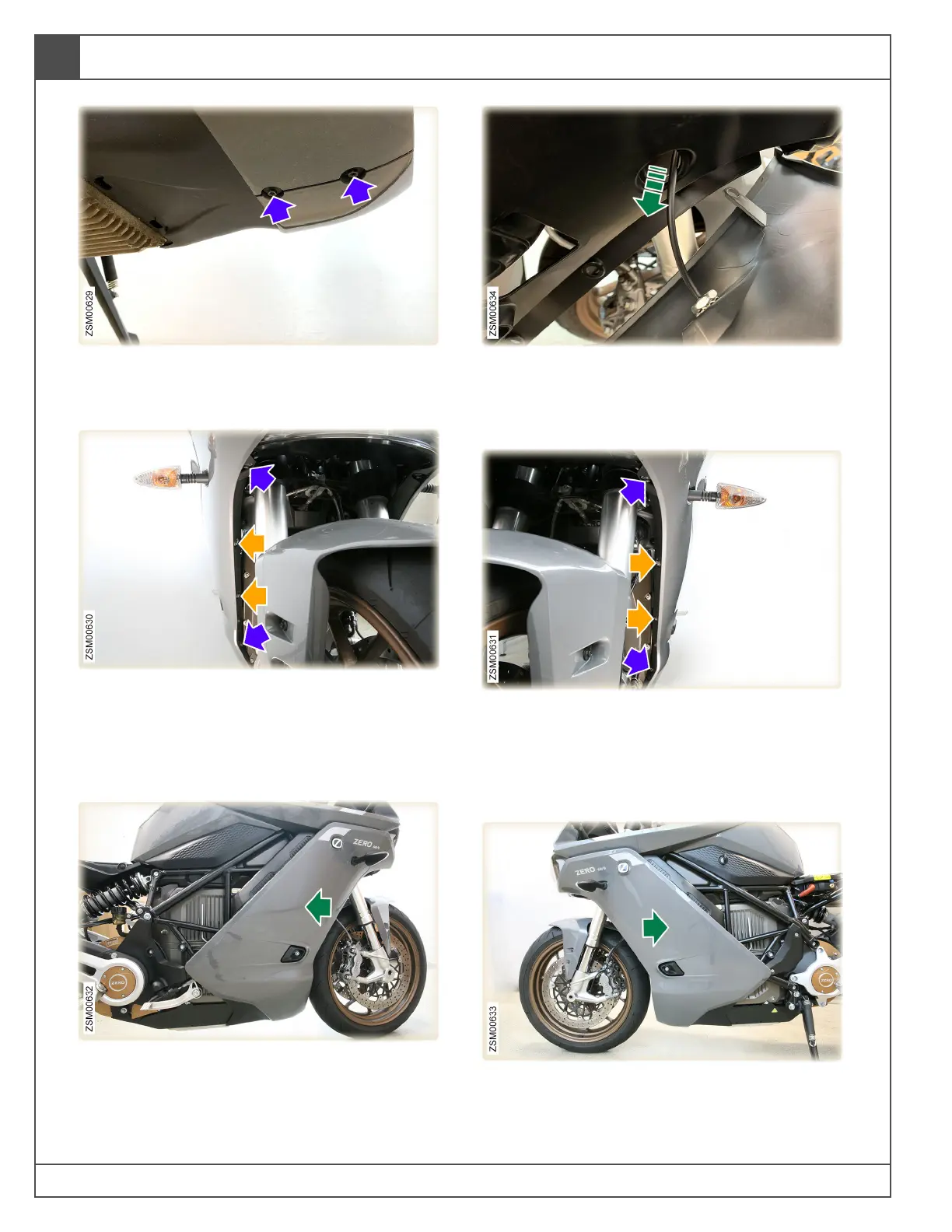

10. Remove long bolts (x2) securing bottom of
right outer side fairing to bodywork. Tool: T25.
Torque: 3 lb-ft (4 Nm).
11. Remove long bolts (x2[blue arrows]) and
short bolts (x2[orange arrows]) securing the
leading edge of the right outer side fairing to
bodywork. Tool: T25. Torque: 3 lb-ft (4 Nm).
Note: Take note of length of the bolts.
12. Remove right outer side fairing.
13. While removing right outer side fairing, guide
the right front turn signal harness wires
through their access hole in the right inner
side fairing.
14. Remove long bolts (x2[blue arrows]) and
short bolts (x2[orange arrows]) securing the
leading edge of the left outer side fairing to
bodywork. Tool: T25. Torque: 3 lb-ft (4 Nm).
Note: Take note of length of the bolts.
15. Remove left outer side fairing.
