Power Pack
Power Pack 20-9
20

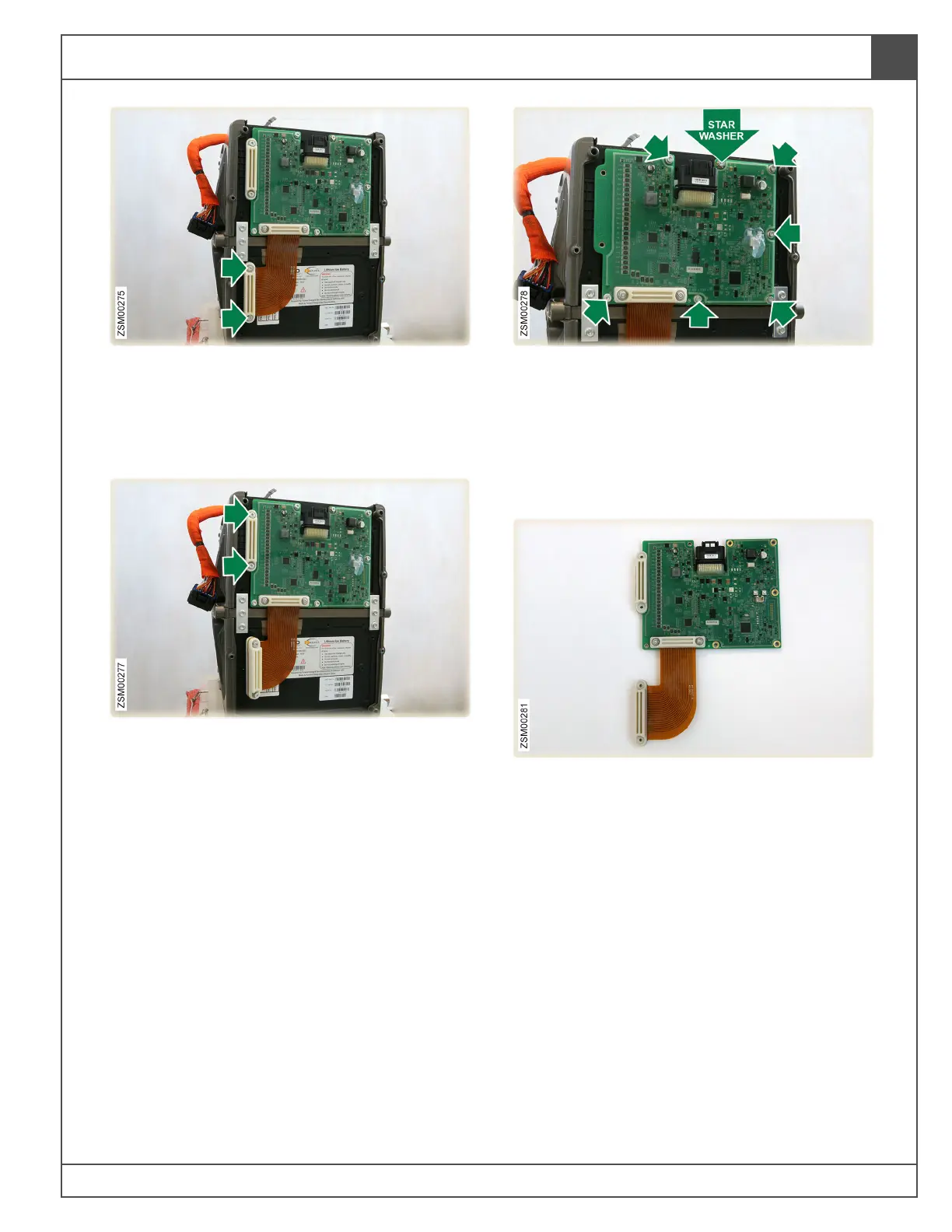

16. Remove bolts (x2) securing the bottom
connector of the BMS. Collect washers (x2).
Tool: T20. Torque: 12 in-lb (1.36 Nm).
Note: If plastic connector cover is loose,
remove it.
17. Remove bolts (x2) securing the upper
connector of the BMS. Collect washers (x2).
Tool: T20. Torque: 12 in-lb (1.36 Nm).
Note: If plastic connector cover is loose,
remove it.
18. Remove bolts (x7) securing the BMS to the
power pack. Collect flat washers (x6) and star
washer (x1). Tool: T20. Torque: 12 in-lb
(1.36 Nm).
Note: Discard BMS attaching bolts and
washers. Replace attaching bolts and washers
upon installation.
19. Remove BMS.
Installation
1. Installation is the reverse of the removal
procedure, with the exception of the following:
