5.2.7 Available auxiliary devices
The appliance is capable of controlling 2 devices in addion to the lter pump. For example, it can control Zodiac®
monochrome or polychrome lighng systems. In any case, the equipment must be connected to the appliance using the
appropriate auxiliary line:
• AUX 2 = for equipment powered by the low voltage supply (12/24 V)
• AUX 1 = for equipment powered by the high voltage supply (230V)
• Unlike the lter pump, the appliance does not supply power to these two external devices
(AUX1 and AUX2). Ensure that these appliances are properly connected to the power supply
in accordance with the regulaons in force.

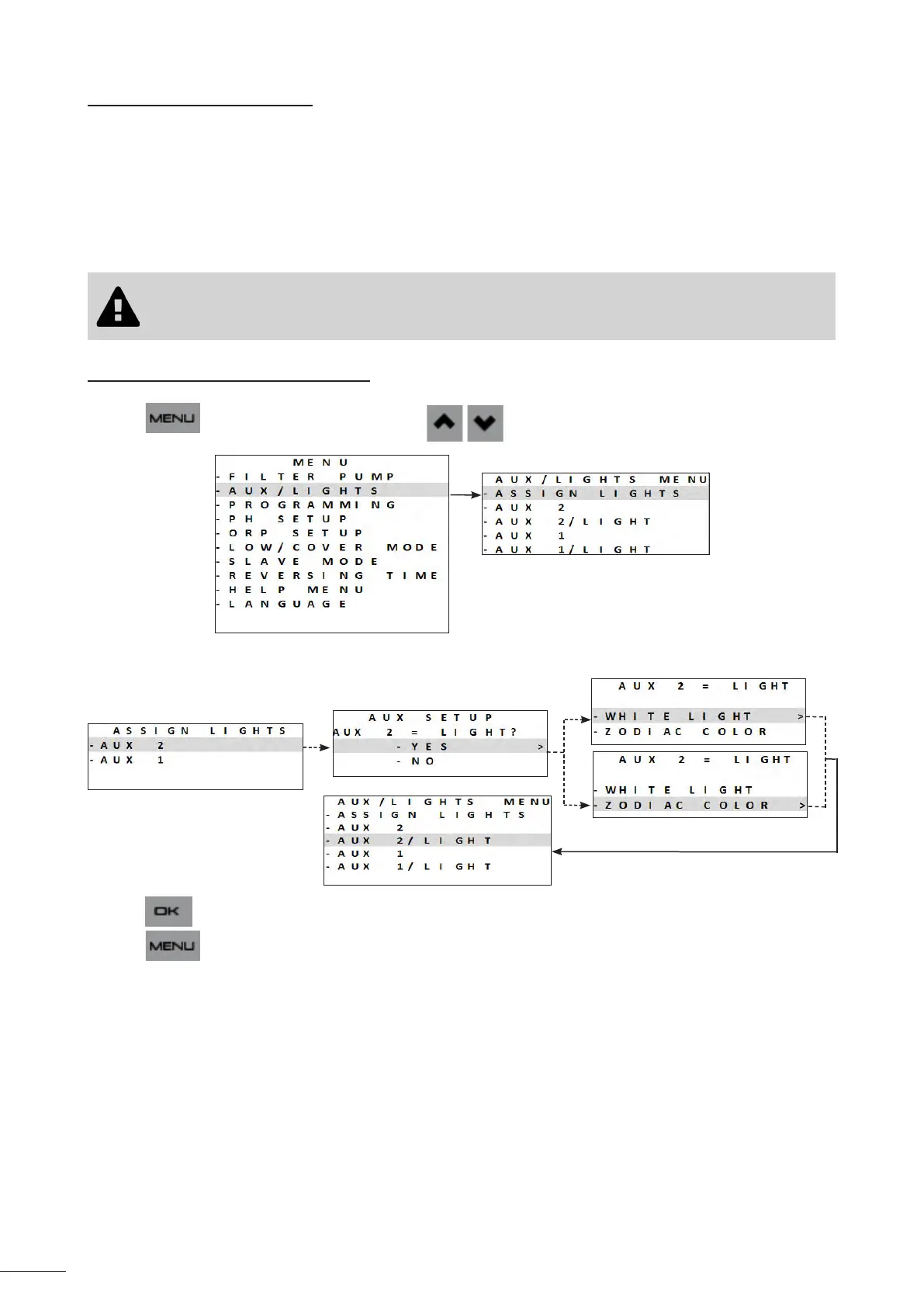

5.2.8 Selecng a lighng system (AUX 2)
• Press and browse the menu using the buons.
• 2 auxiliary devices can be controlled with the opon of assigning one device as a lighng system:
• Press to conrm.
• Press to exit.
