Chapter 2 Hardware
Multy WiFi System User’s Guide
21
Follow these steps for the WSM20 wall mounting:
1 Use the mounting base to mark two holes on the wall. Drill two holes at the distance of 53.40 mm.

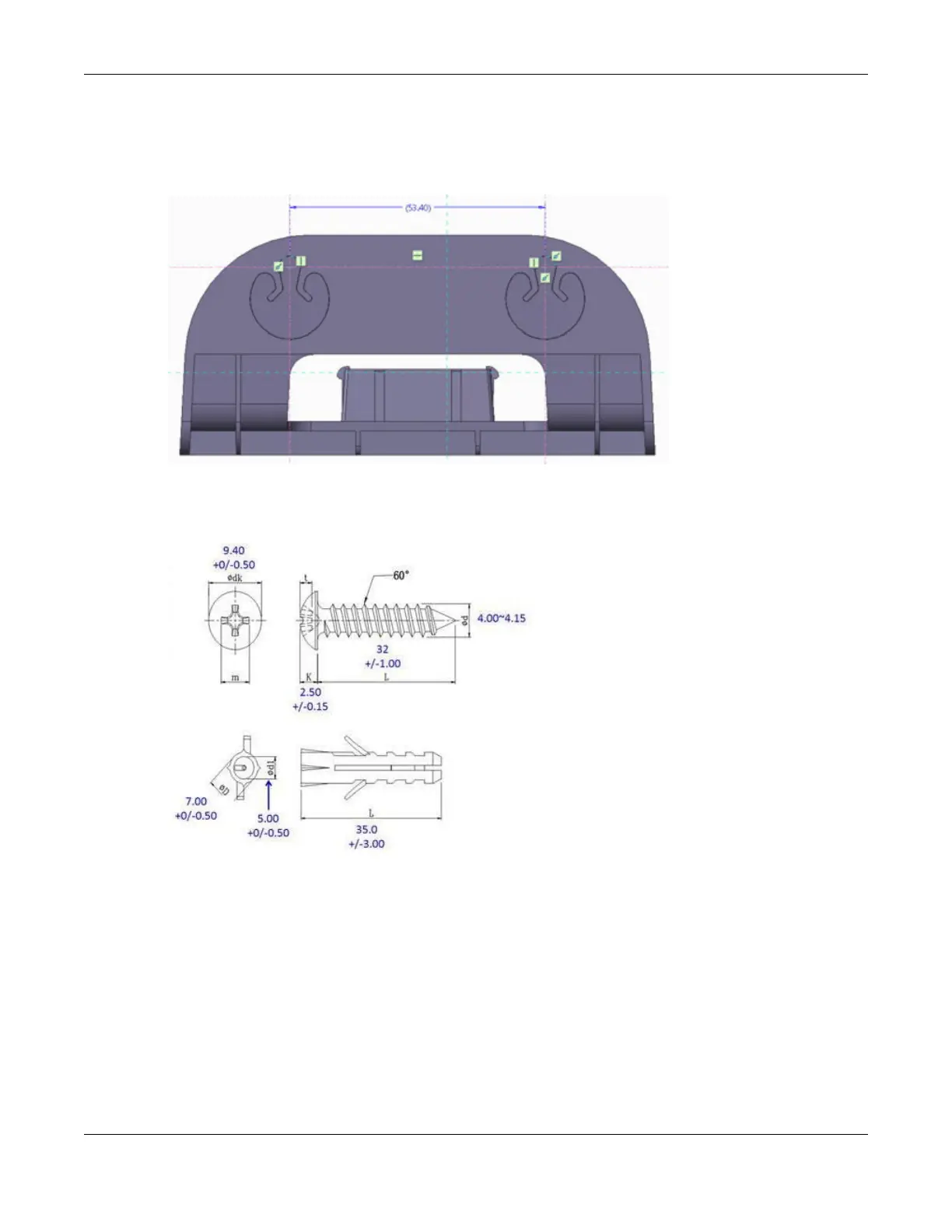

Figure 15 WSM20 Mounting Distance
2 Insert the anchors and then screw the mounting base into the wall using the screws of the required
specifications as shown below.
Figure 16 WSM20 M4 Screw and Anchor Specifications
3 Slide the WSM20 down gently until it is secured to the mounting base.
