Chapter 2 Hardware
Multy WiFi System User’s Guide
22

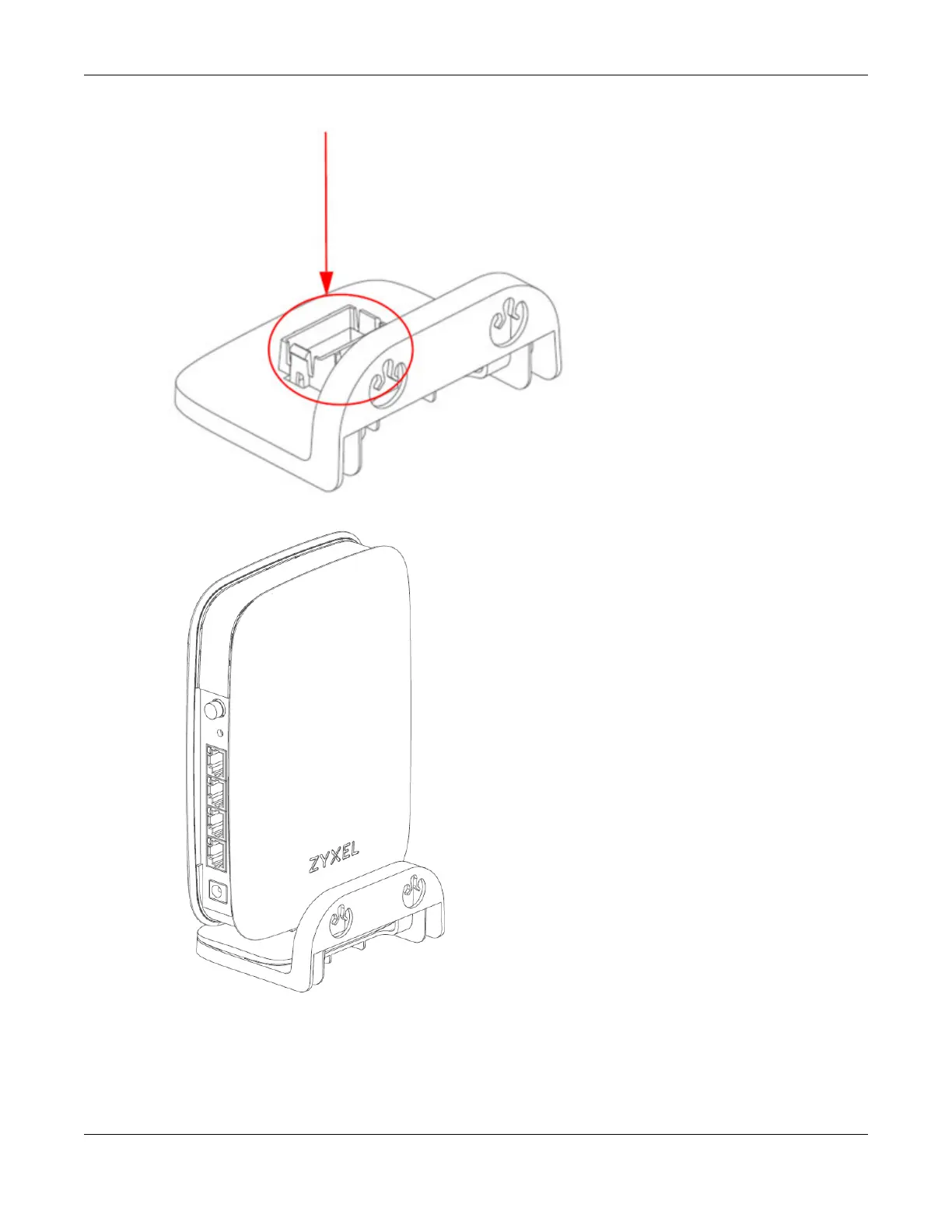

Figure 17 Slide the WSM20 Down
Figure 18 Secure the WSM20 to the Mounting Base
2.2.1.2 WSM20 Removal
There are two hooks on the WSM20. Use a thin object to press the hooks down on the front and rear
panel of the WSM20 to release the WSM20 from the mounting base.
