2 for ARP traffic received on port 1, 2 and 3. You can also have a protocol based
VLAN B with priority 3 for Apple Talk traffic received on port 6 and 7. All upstream
ARP traffic from port 1, 2 and 3 will be grouped together, and all upstream Apple
Talk traffic from port 6 and 7 will be in another group and have higher priority than
ARP traffic when they go through the uplink port to a backbone switch C.

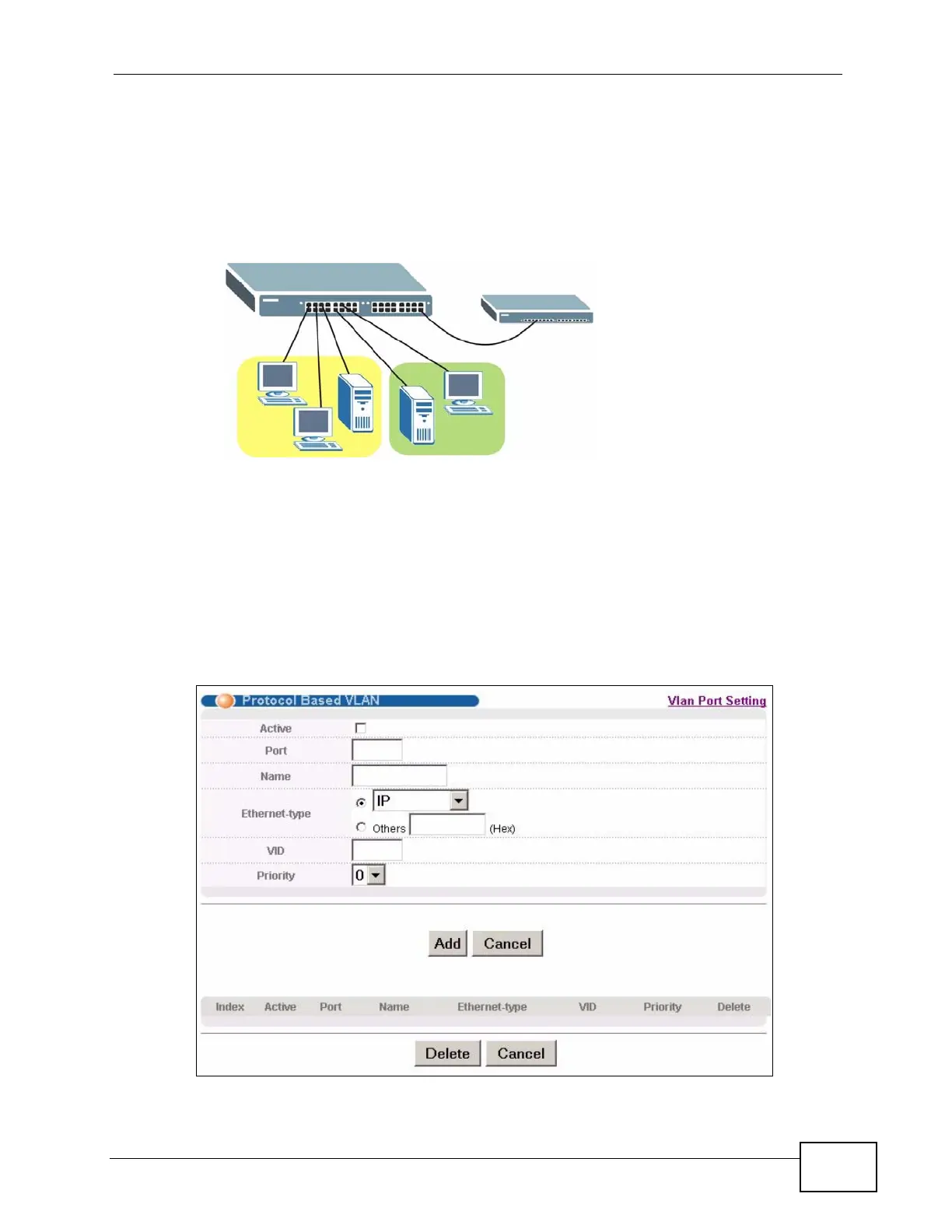

Figure 50 Protocol Based VLAN Application Example
9.9 Configuring Protocol Based VLAN
Click Protocol Based VLAN in the VLAN Port Setting screen to display the
configuration screen as shown.
Figure 51 Advanced Application > VLAN > VLAN Port Setting > Protocol Based
VLAN
