Chapter 13 Spanning Tree Protocol
XGS4700-48F User’s Guide
160
13.6 Configure Multiple Rapid Spanning Tree
Protocol
To configure MRSTP, click MRSTP in the Advanced Application > Spanning
Tree Protocol screen. See Section 13.1 on page 149 for more information on
MRSTP.

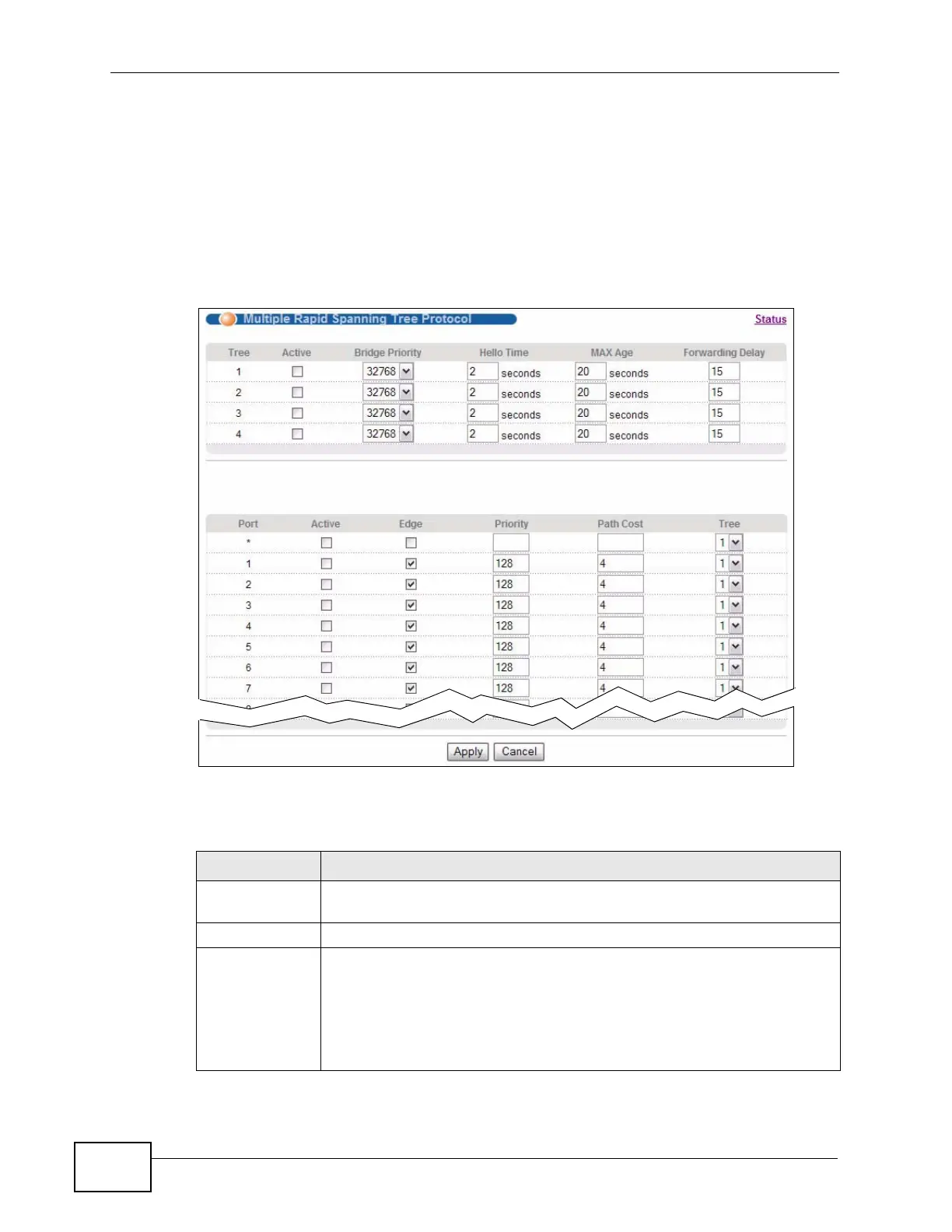

Figure 70 Advanced Application > Spanning Tree Protocol > MRSTP
The following table describes the labels in this screen.
Table 31 Advanced Application > Spanning Tree Protocol > MRSTP
LABEL DESCRIPTION
Status Click Status to display the MRSTP Status screen (see Figure 69 on
page 159).
Tree This is a read only index number of the STP trees.
Active Select this check box to activate an STP tree. Clear this checkbox to
disable an STP tree.
Note: You must also activate Multiple Rapid Spanning Tree in the
Advanced Application > Spanning Tree Protocol >
Configuration screen to enable MRSTP on the Switch.
