Chapter 3 Hardware Overview
XGS4700-48F User’s Guide
42
Factor Pluggable (SFP) Transceiver MultiSource Agreement (MSA). See the SFF
committee’s INF-8074i specification Rev 1.0 for details.
You can change transceivers while the Switch is operating. You can use different
transceivers to connect to Ethernet switches with different types of fiber-optic
connectors.
• Type: SFP connection interface
• Connection speed: 1 Gigabit per second (Gbps)
To avoid possible eye injury, do not look into an operating fiber-
optic module’s connectors.
3.1.1.1 Transceiver Installation
Use the following steps to install a mini GBIC transceiver (SFP or XFP module).
1 Insert the transceiver into the slot with the exposed section of PCB board facing
down.

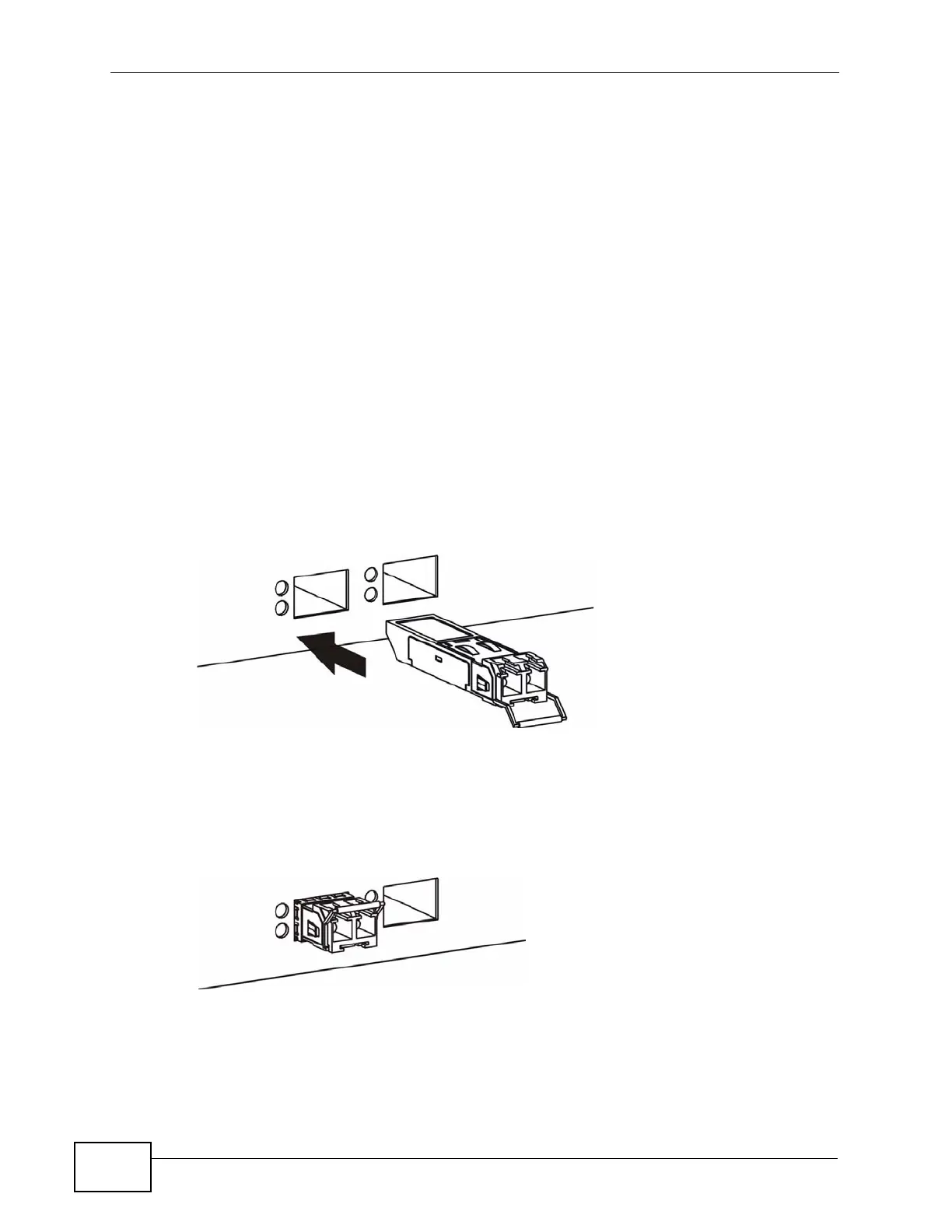

Figure 10 Transceiver Installation Example
2 Press the transceiver firmly until it clicks into place.
3 The Switch automatically detects the installed transceiver. Check the LEDs to
verify that it is functioning properly.
Figure 11 Installed Transceiver
3.1.1.2 Transceiver Removal
Use the following steps to remove a mini GBIC transceiver (SFP module).
