ZyXEL Communications XGS4700-48F - Classifier Example

Chapter 20 Classifier
XGS4700-48F User’s Guide
208
20.4 Classifier Example
The following screen shows an example of configuring a classifier that identifies all
traffic from MAC address 00:50:ba:ad:4f:81 on port 2.

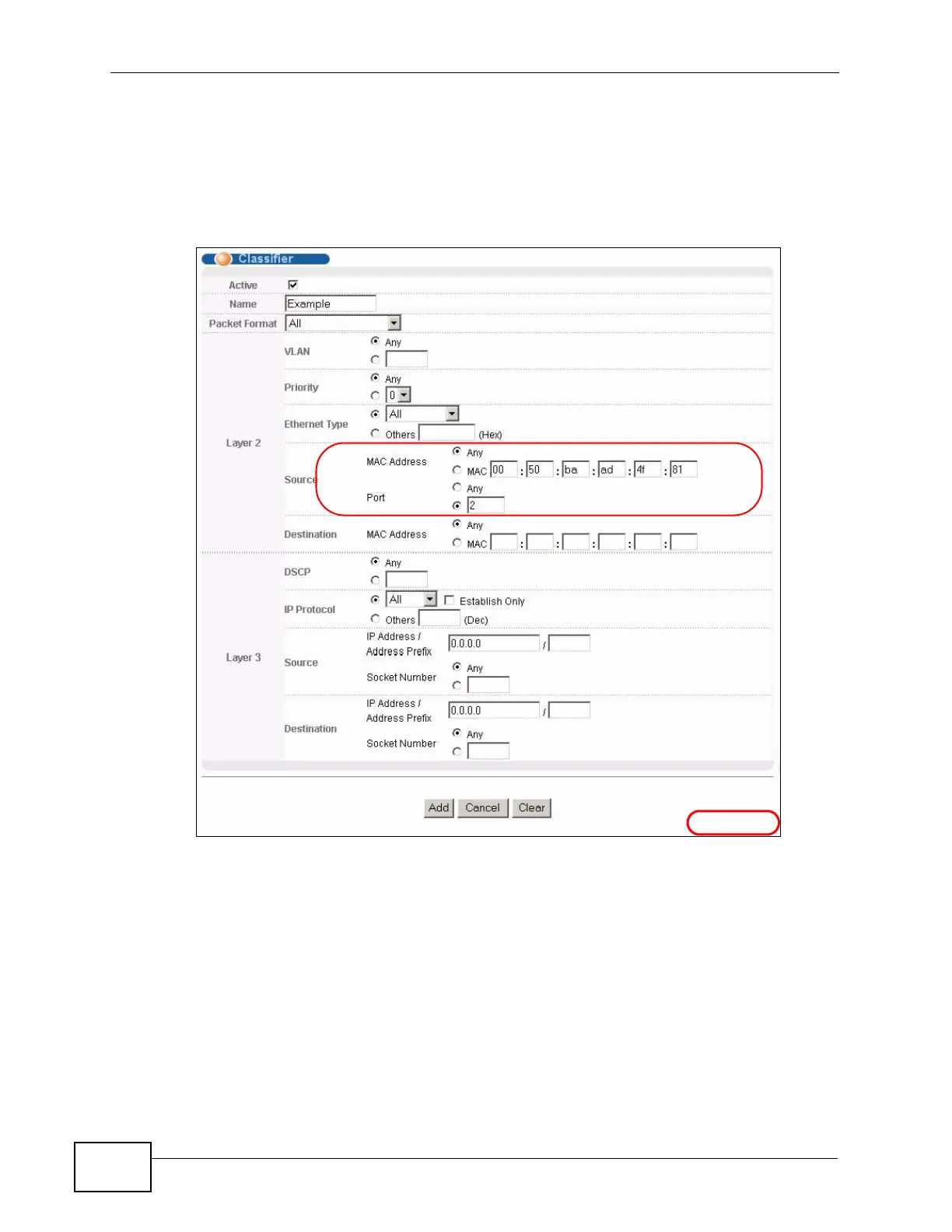

Figure 94 Classifier: Example
After you have configured a classifier, you can configure a policy to define
action(s) on the classified traffic flow. See Chapter 21 on page 209 for information
on configuring a policy rule.
