Chapter 41 VRRP
XGS4700-48F User’s Guide
370
default gateway. If switch A has a higher priority, it is the master router. Switch B,
having a lower priority, is the backup router.

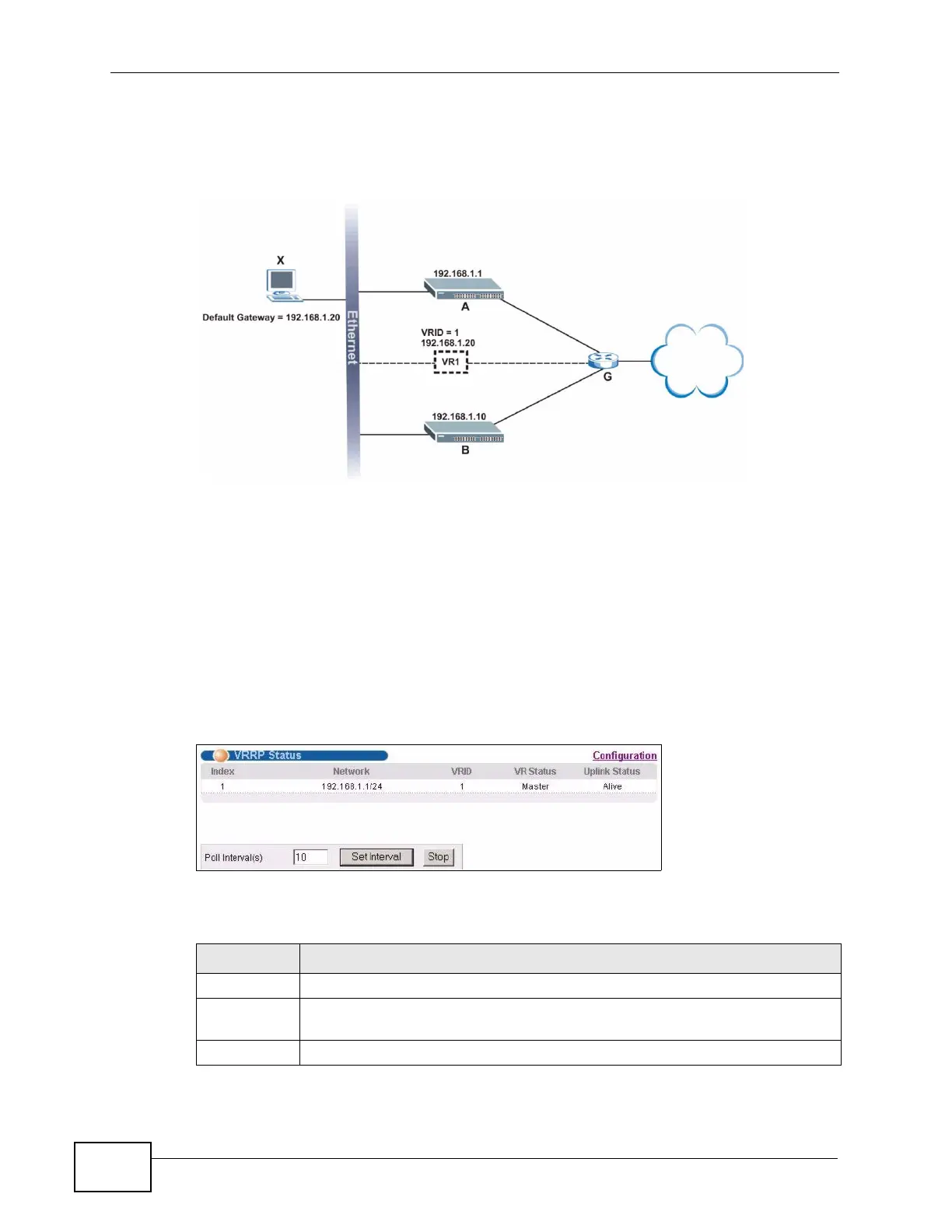

Figure 196 VRRP: Example 1
If switch A (the master router) is unavailable, switch B takes over. Traffic is then
processed by switch B.
41.2 VRRP Status
Click IP Application > VRRP in the navigation panel to display the VRRP Status
screen as shown next.
Figure 197 IP Application > VRRP Status
The following table describes the labels in this screen.
172.21.1.100
172.21.1.1
172.21.1.10
Table 134 IP Application > VRRP Status
LABEL DESCRIPTION
Index This field displays the index number of a rule.
Network This field displays the IP address and the subnet mask bits of an IP routing
domain that is associated to a virtual router.
VRID This field displays the ID number of the virtual router.
