Chapter 5 Initial Setup Example
XGS4700-48F User’s Guide
70
5.1.5 Enabling RIP
To exchange routing information with other routing devices across different
routing domains, enable RIP (Routing Information Protocol) in the RIP screen.

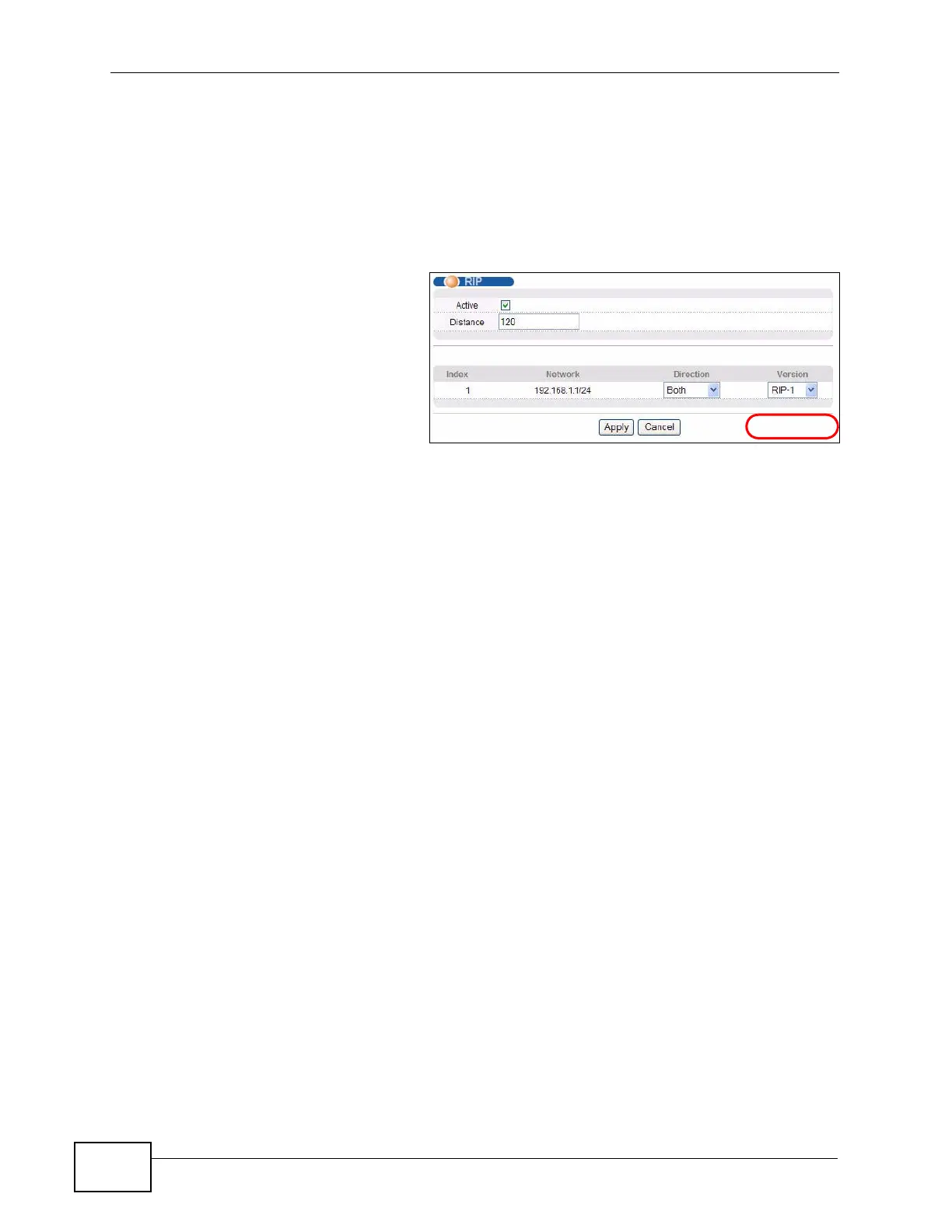

1 Click IP Application and RIP in the navigation panel.
2 Select Both in the Direction
field to set the Switch to
broadcast and receive routing
information.
3 In the Version field, select
RIP-1 for the RIP packet
format that is universally
supported.
4 Click Apply to save your changes back to the run-time memory. Settings in the
run-time memory are lost when the Switch’s power is turned off.
