Chapter 41 VRRP
XGS4700-48F User’s Guide
378
VR1 (refer to Section 41.4.2 on page 377). Configure the VRRP parameters on the
switches as shown in the figures below.

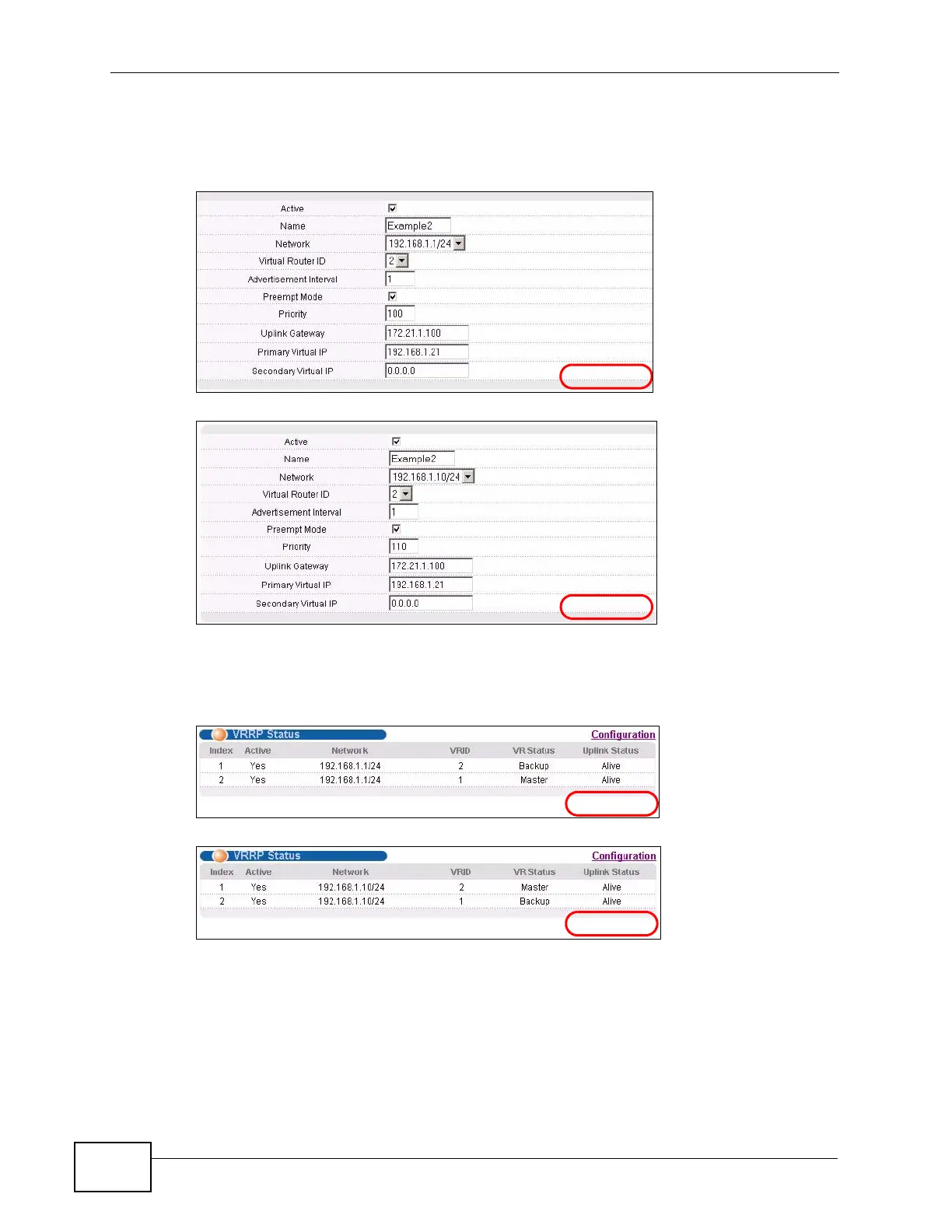

Figure 207 VRRP Example 2: VRRP Parameter Settings for VR2 on Switch A
Figure 208 VRRP Example 2: VRRP Parameter Settings for VR2 on Switch B
After configuring and saving the VRRP configuration, the VRRP Status screens for
both switches are shown next.
Figure 209 VRRP Example 2: VRRP Status on Switch A
Figure 210 VRRP Example 2: VRRP Status on Switch B
