Chapter 5 Initial Setup Example
XGS4700-48F User’s Guide
66
new IP interface. This allows the Switch to route traffic between the RD and Sales
networks.

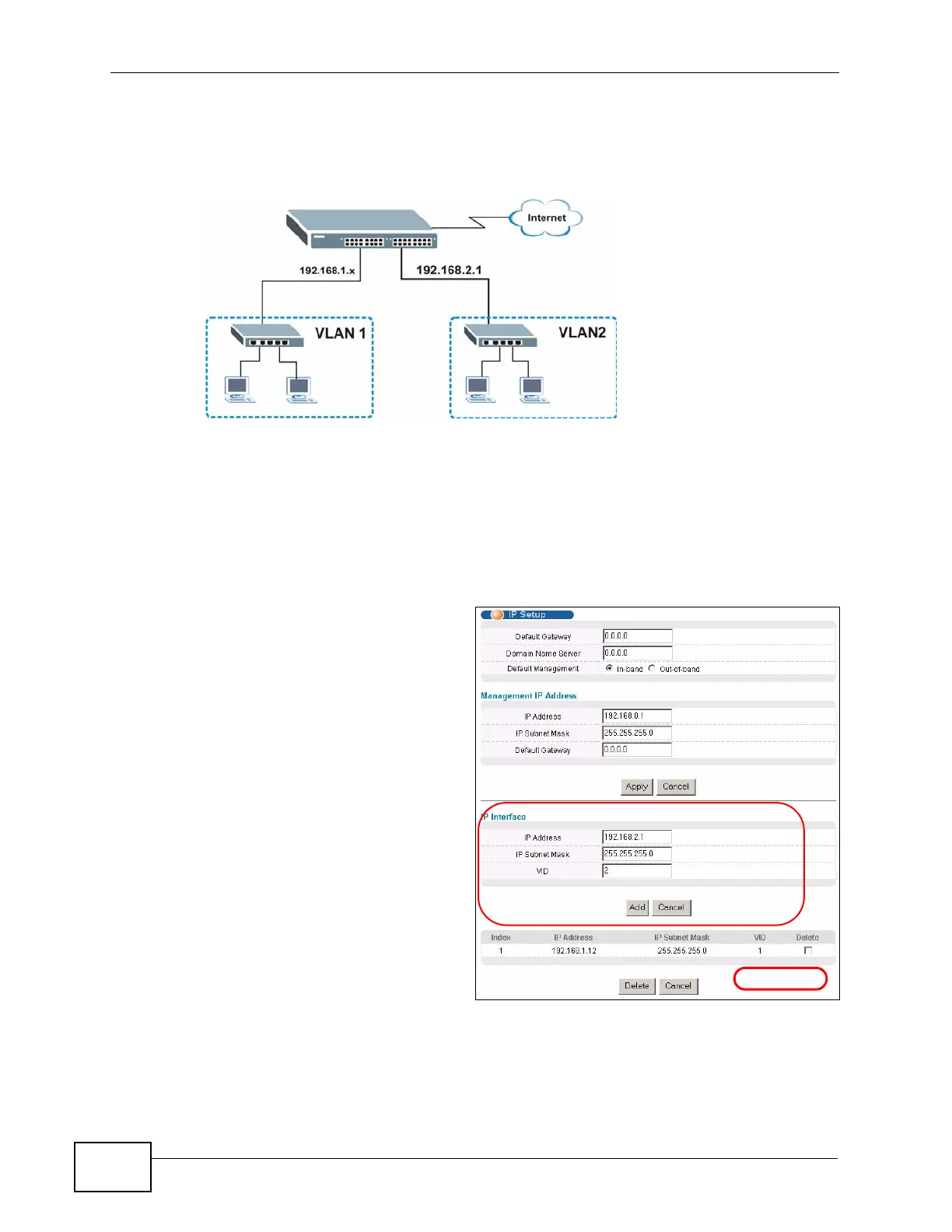

Figure 29 Initial Setup Network Example: IP Interface
1 Connect your computer to the MGMT port that is used only for management.
Make sure your computer is in the same subnet as the MGMT port.
2 Open your web browser and enter 192.168.0.1 (the default MGMT port IP
address) in the address bar to access the web configurator. See Section 4.2 on
page 55 for more information.
3 Click Basic Setting and IP Setup
in the navigation panel.
4 Configure the related fields in the
IP Setup screen.
For the Sales network, enter 192.168.2.1 as the IP address and 255.255.255.0 as
the subnet mask.
