Chapter 5 Initial Setup Example
XGS4700-48F User’s Guide
68
In this example, you want to configure port 1 as a member of VLAN 2.

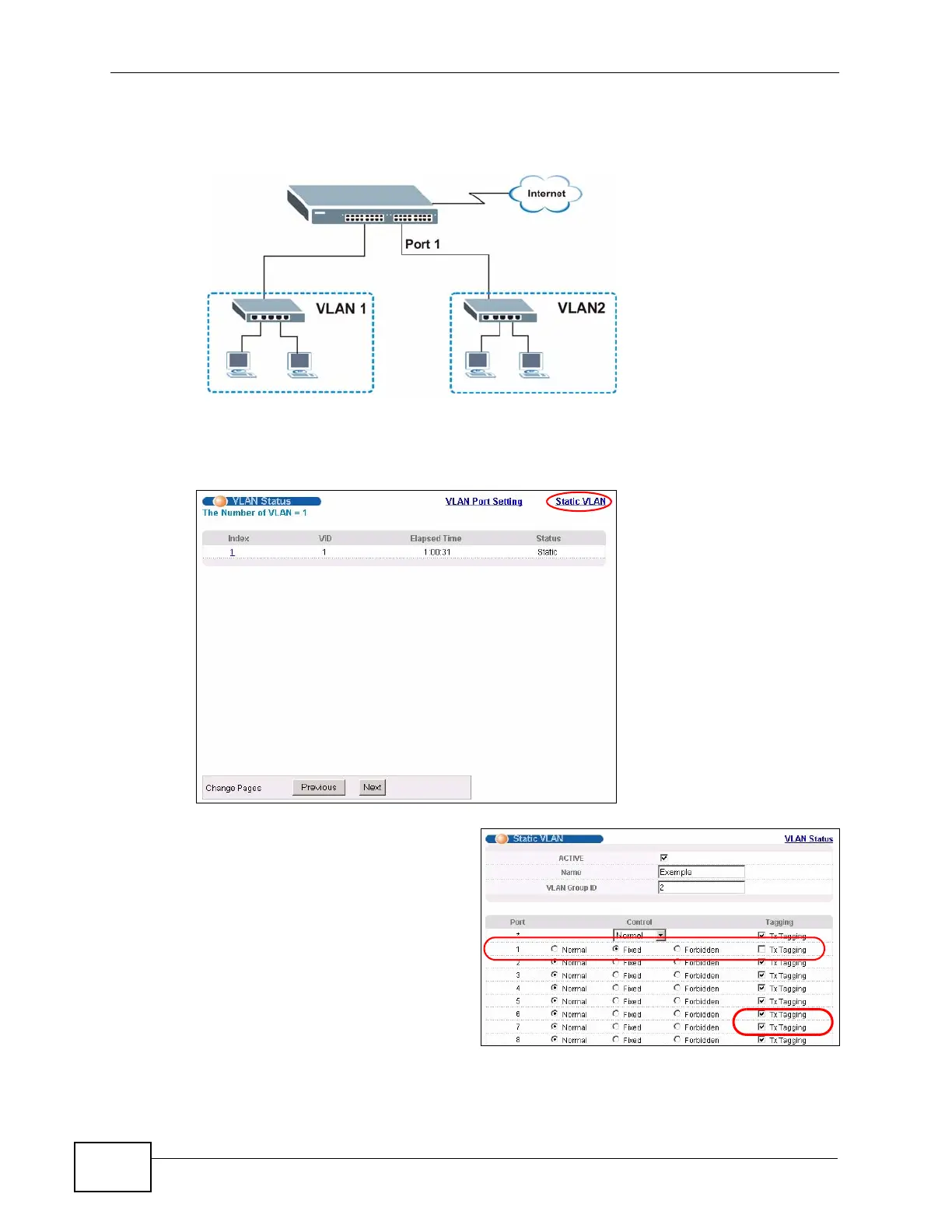

Figure 30 Initial Setup Network Example: VLAN
1 Click Advanced Application > VLAN in the navigation panel and click the Static
VLAN link.
2 In the Static VLAN screen, select
ACTIVE, enter a descriptive name
in the Name field and enter 2 in
the VLAN Group ID field for the
VLAN2 network.
Note: The VLAN Group ID field in this screen and the VID field in the IP Setup
screen refer to the same VLAN ID.
