Chapter 6 Tutorials
XGS4700-48F User’s Guide
78

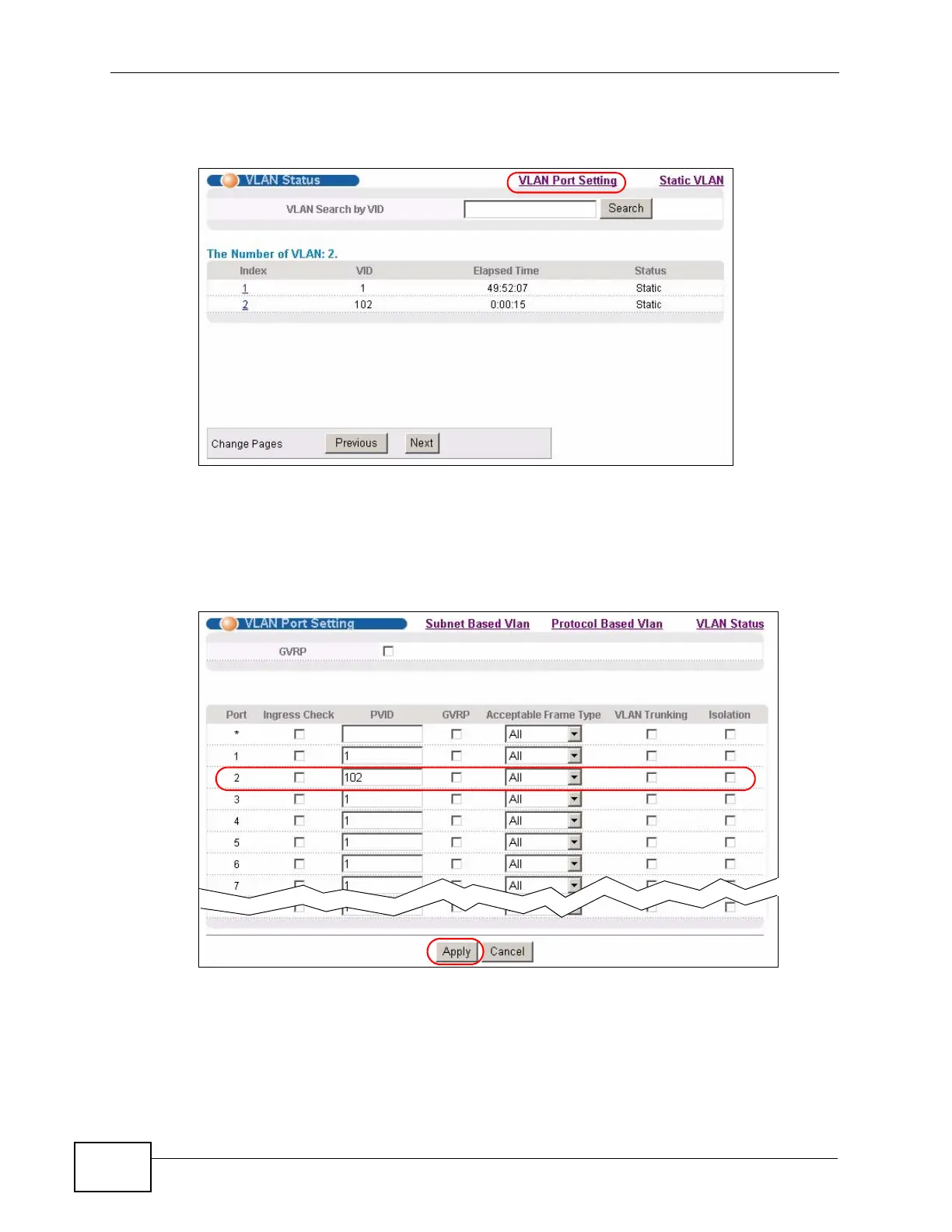

8 Click the VLAN Status link in the Static VLAN screen and then the VLAN Port
Setting link in the VLAN Status screen.
9 Enter 102 in the PVID field for port 2 to add a tag to incoming untagged frames
received on that port so that the frames are forwarded to the VLAN group that the
tag defines.
10 Click Apply to save your changes back to the run-time memory.
11 Click the Save link in the upper right corner of the web configurator to save your
configuration permanently.
