Chapter 6 Tutorials
XGS4700-48F User’s Guide
90

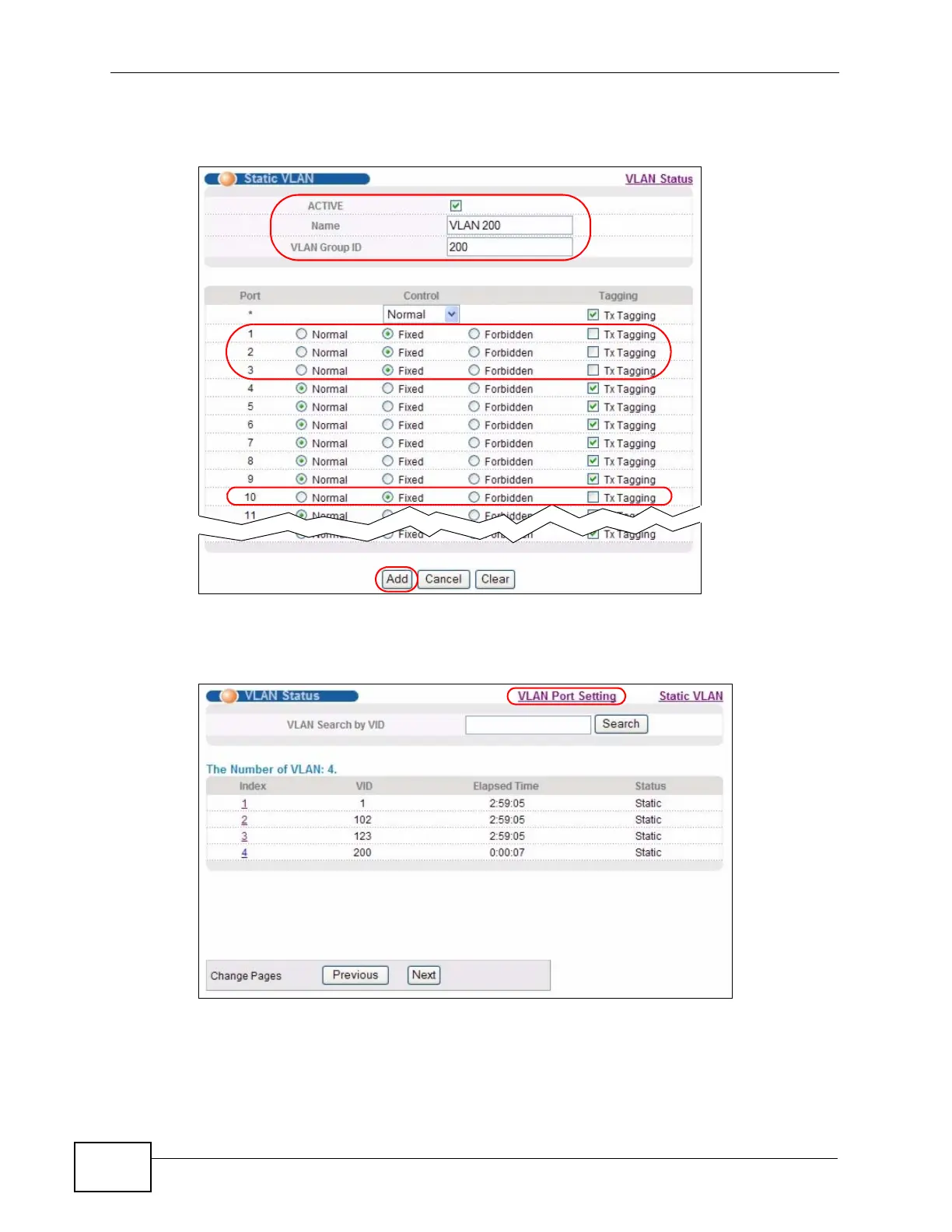

7 Click Add to save the settings to the run-time memory. Settings in the run-time
memory are lost when the Switch’s power is turned off.
8 Click the VLAN Status link in the Static VLAN screen and then the VLAN Port
Setting link in the VLAN Status screen.
9 Enter 200 in the PVID field for ports 1, 2, 3 and 10 to add a tag to incoming
untagged frames received on these ports so that the frames are forwarded to the
VLAN group that the tag defines.
