Chapter 4. H7016 Setup
4-27
4

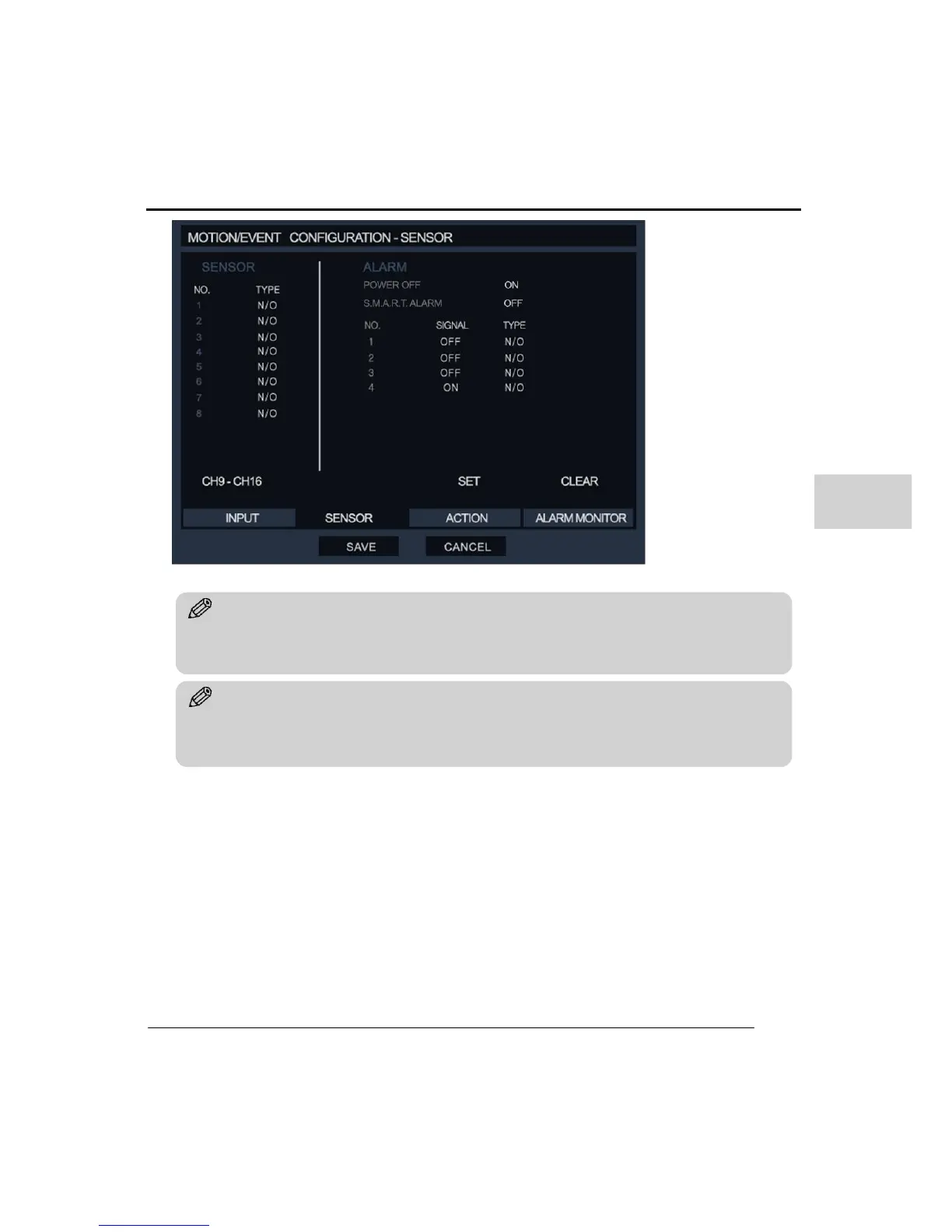

③ ACTION
Set the linking between the sensor/motion events, PTZ preset and alarm output.
Alarm: Select which Alarm output to activate with the sensor/motion channel number.
Delay: The user can set the delay time between ‘0~100’seconds. The delay means time
between that sensor/motion event and the triggering of the alarm output. The default value
is [OFF].
Tip
If the sensor does not work, check sensor type first. If the sensor type is different to your configuration
then change the type on the DVR
Tip
SENSOR is a type of detection device which will then send an electric signal when triggered.
