Wideband Pair (with FED)
The Wideband Test screen displays the type of test
(Basic or Full), the type of service (56 KB, 64 KB,
ISDN, HDSL, T1, E1, ADSL), the wire gauge, the
FED type and the cable type. If the CTC SmartStrap™
has been selected for the FED, two additional test
leads that are used to control the SmartStrap will
be shown on the screen. If the 965DSP has DSL
Parametric Test capability (/SA option) and the 3M
FED II has been selected for the Far End Device, five
additional service types (HDSL2, HDSL4, H2/4ACC,
H4NACC and H4RACC) can also be tested.
Press the [Setup] key to change the Wideband Test
parameters.

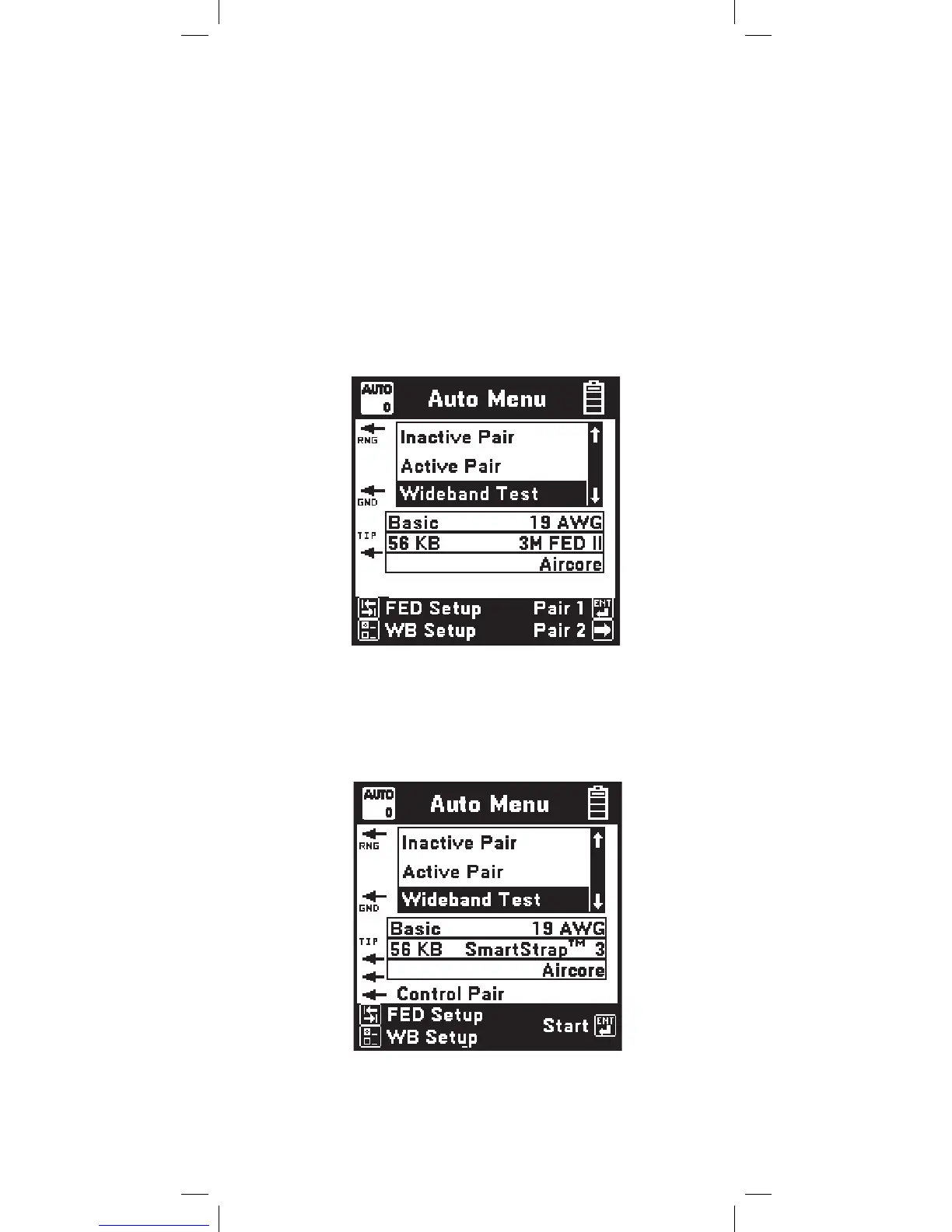

Wideband Auto Menu - SmartStrap
Wideband Auto Menu - FED II
Note: Always connect the 965DSP test leads
to Pair 1 regardless of which pair is being tested.
Pair 2 testing will require the user to move the test
leads to Pair 2 when prompted.
