85
965DSP
Modem
Information
Conditions
af
fecting
the
internal
ADSL
modem
in
the
965DSP
are
displayed
via
warning
screens.
In
the
unlikely case
that
the
warning message
sho
wn
abov
e
appears,
simply
exit
the
ADSL
Modem
application
for
a
fe
w
minutes
to
allow the
modem
to
cool
do
wn.

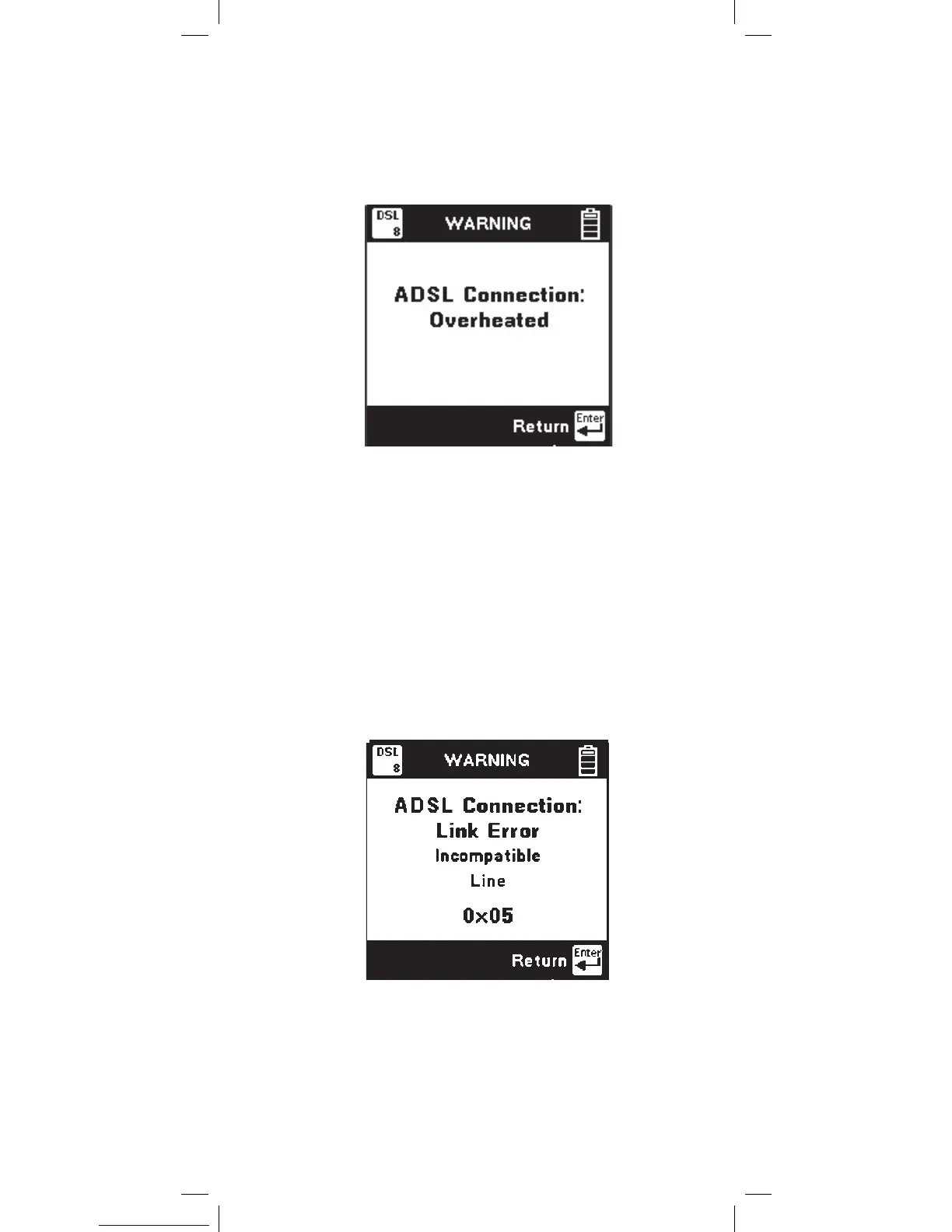

Link Activation Messages
Error
conditions
af
fecting
the
ADSL
modem
link
acti
vation process
are
displayed
as
‘Connection:
Link
Error’
with
numeric
codes
and
abbre
viated
text definitions.
