44
K-Test Results

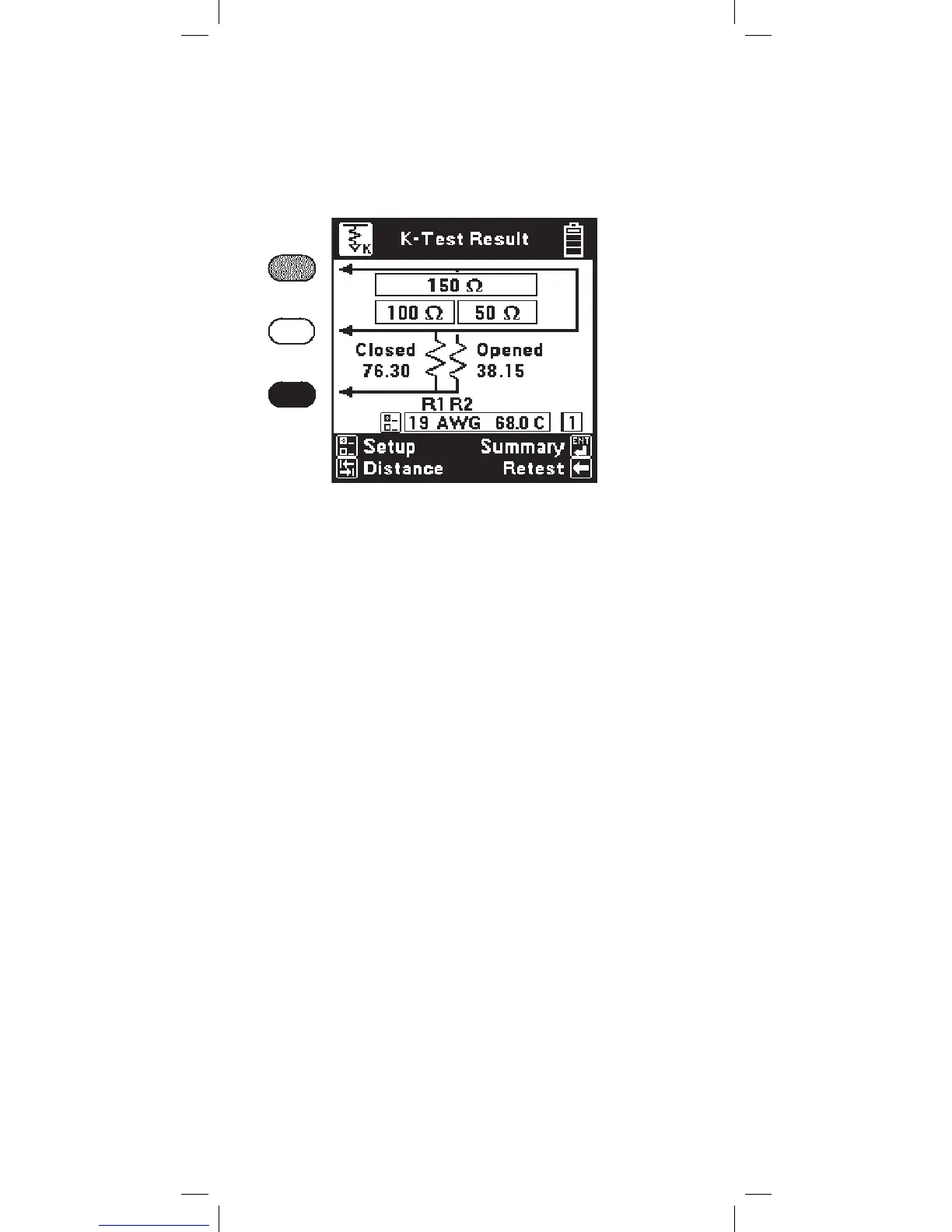

The 965DSP will display the following screen if
there are no problems with the “Close Far-End”
portion of the test:
The 965DSP displays the Resistance to Strap (RTS),
Resistance to Faults (RTF) and the Resistance Strap
to Faults (RSTF).
The 965DSP displays the open and closed fault
ratios. These values are used in some countries as
part of the K-Test.
Use the [Tab] key to display distances to the faults
and strap instead of resistance.
The 965DSP displays the last wire gauge and
temperature selected. Use the [Setup] key to change
either the wire gauge or the temperature used for the
conversion from resistance to distance.
Use the [Left] arrow key to repeat the K-Test on the
same pair. The screen keeps count of the number (in
the lower right) of times the test is repeated.
Use [Enter] to see a summary of up to five K-Test
measurements.
