47

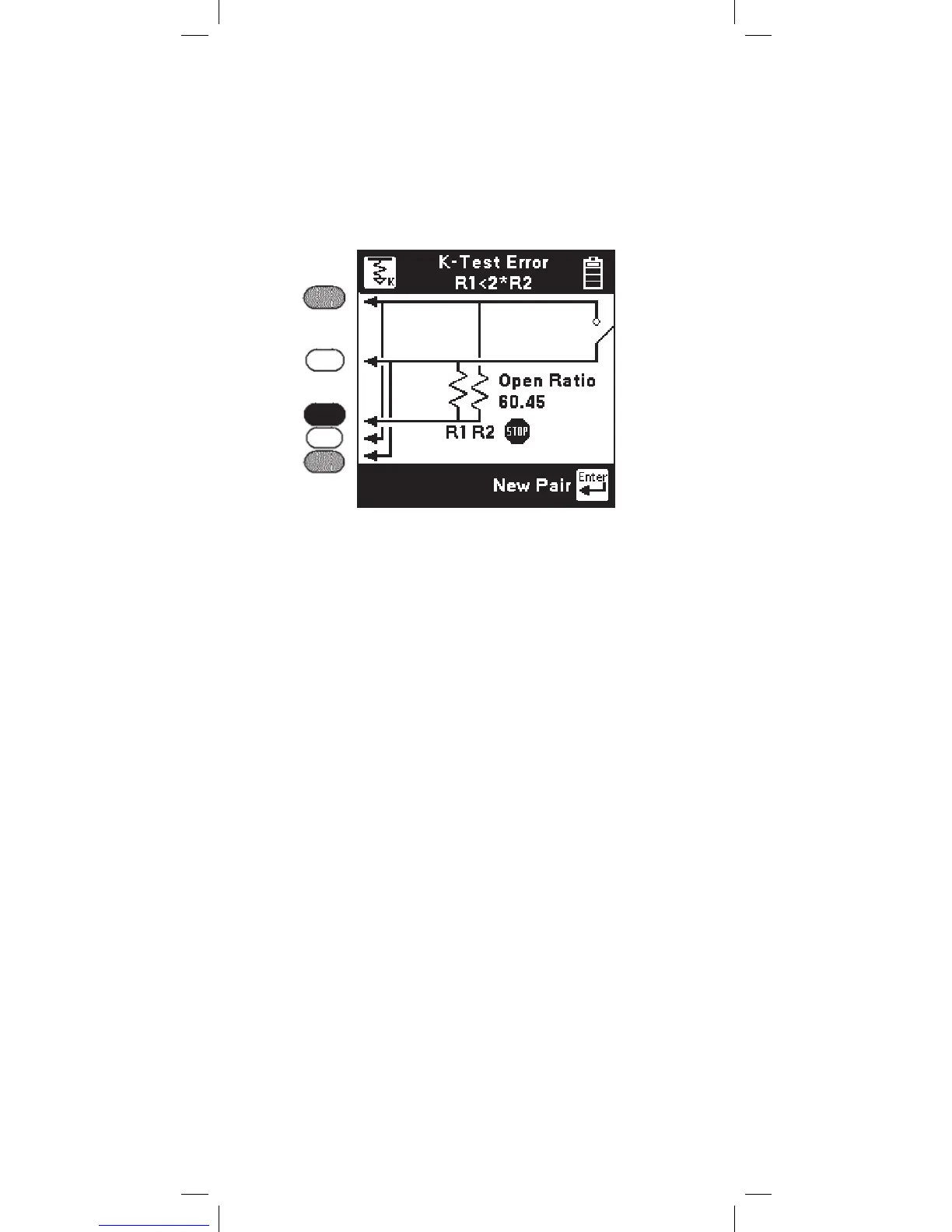

K-Test Error: R1<2*R2
The 965DSP checks to see that the fault on the
green lead is at least twice the value of the fault on
the red lead. This screen indicates that the ratio of
the faults is too low.
Press [Enter] to return to the initial “K-Test Hookup:
Open Far-End” screen. You may also elect to
go to the Resistance function and re-measure the
resistances before repeating the K-Test.
