Press the [Tab] key to select either the wire gauge
menu, cable temperature, or length (distance to
Strap) for editing.
If you select the Wire Gauge menu, press the [Up]
and [Down] keys to select the desired gauge.
If you choose Temperature or Length, enter the
new value using the blue numeric keys. Either
the Temperature or Length must be specified as
unknown by entering a “#” for the value.
Note: Always enter the temperature of the cable,
not the ambient temperature.
Press the [Enter] key to accept the changes and
return to the previous screen. Press the [Return]
key to return without saving the changes. Press the
[Enter] key again to return to the hookup screen.
RFL Setup: Multi-Section
Use RFL Multi-Section when there is more than one
section of cable with different wire gauges between the
near-end and the far-end. Single or Separate pair hookup
can be used in RFL Multi-Section.
While in the “Hookup Single Pair” or “Hookup
Separate Pair” screen, press the [Right] key to select
Multi Section. The wire gauge displayed near the
bottom of the display will be replaced by “Multiple”.
Then press the [Setup] key to go to the Setup screen.

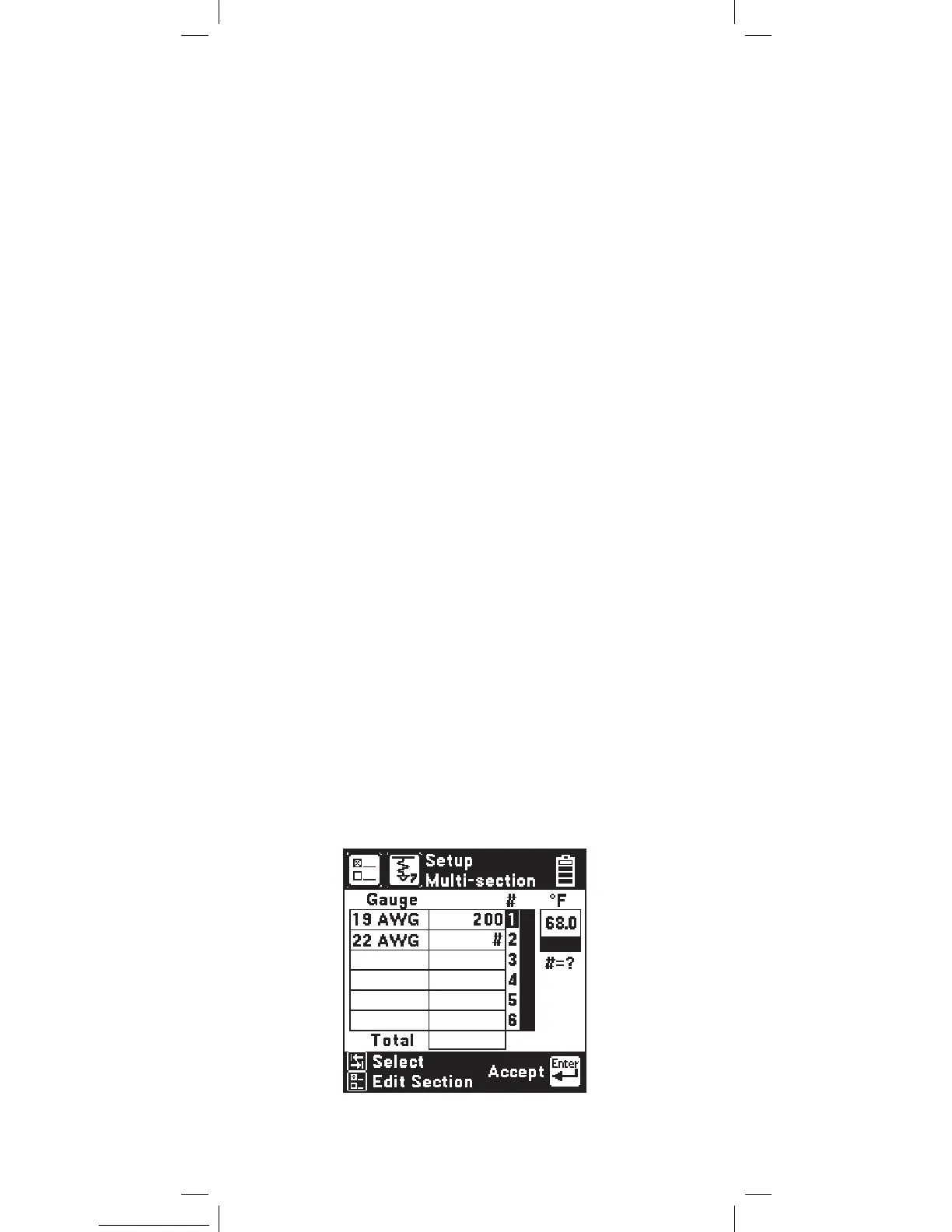

The following is an example of the Setup screen for two
sections. Note that the screen shows a “#” to indicate
the distance is unknown.
To Next Page
