The screen shows the fault resistance beside the
resistor symbol. The wire gauge, temperature and
section number are displayed above the bottom bar.
If the Yield Sign
shows beside the results, this
indicates a possible marginal result (due to noise or
other line conditions).
Press [Tab] to show readings in Ohms instead of
distance. Press again to return to distance. Press
[Enter] to repeat the fault locate on the same pair or
the [Return] key to test a new pair. Press [Setup] to
change the Gauge or Temperature.

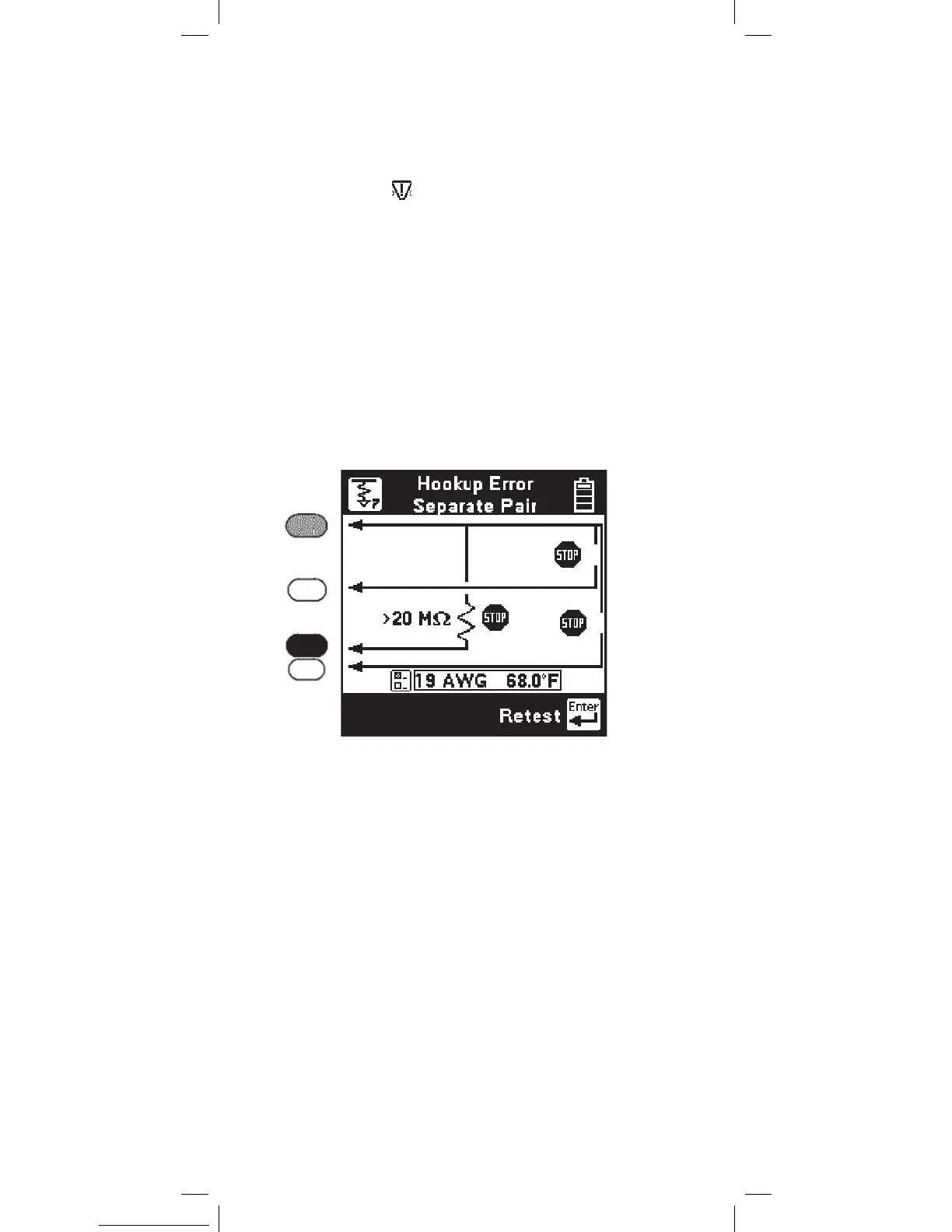

If there is a problem with the connection, you will
see the “Hookup Error” screen.
There are three possible hookup errors: 1) the fault is
greater than 20 M
Ω, 2) the red/green strap is bad, or
3) the red/yellow strap is bad.
The screen will show the combination of errors that
have been detected. Correct the errors and press the
[Enter] key to repeat the hookup test.
