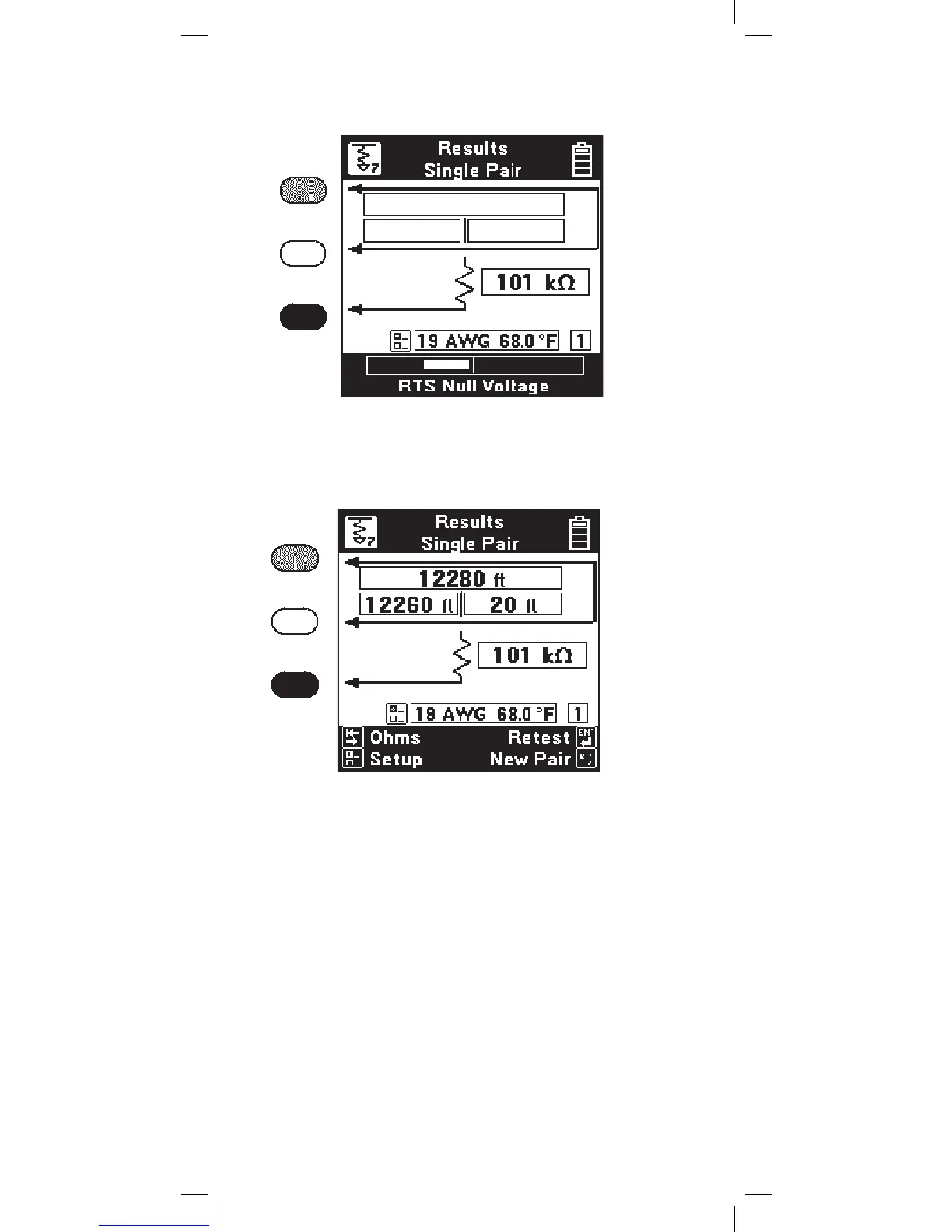

During the measurement a bar graph of the
measurement null voltage for RTS and then RTF will
be visible at the bottom of the screen.
The results at the top of the screen indicate the
“Distance to Strap”. The results on the second line
indicate the “Distance to Fault” and the “Distance,
Strap to Fault”.
The screen shows the fault resistance beside the
resistor symbol. The wire gauge, temperature and
section number are displayed above the bottom bar.
Press [Tab] to show readings in Ohms instead of
distance. Press again to return to distance. Press
[Enter] to repeat the fault locate using the same
Distance to Strap or the [Return] key to test a
new pair. Press [Setup] to change the Gauge or
Temperature.
