97
You may move the cursor by using the [Left] and
[Right] keys. The control settings for the stored trace
can be viewed by pressing the [Tab] or [Enter] keys
but the settings cannot be changed.

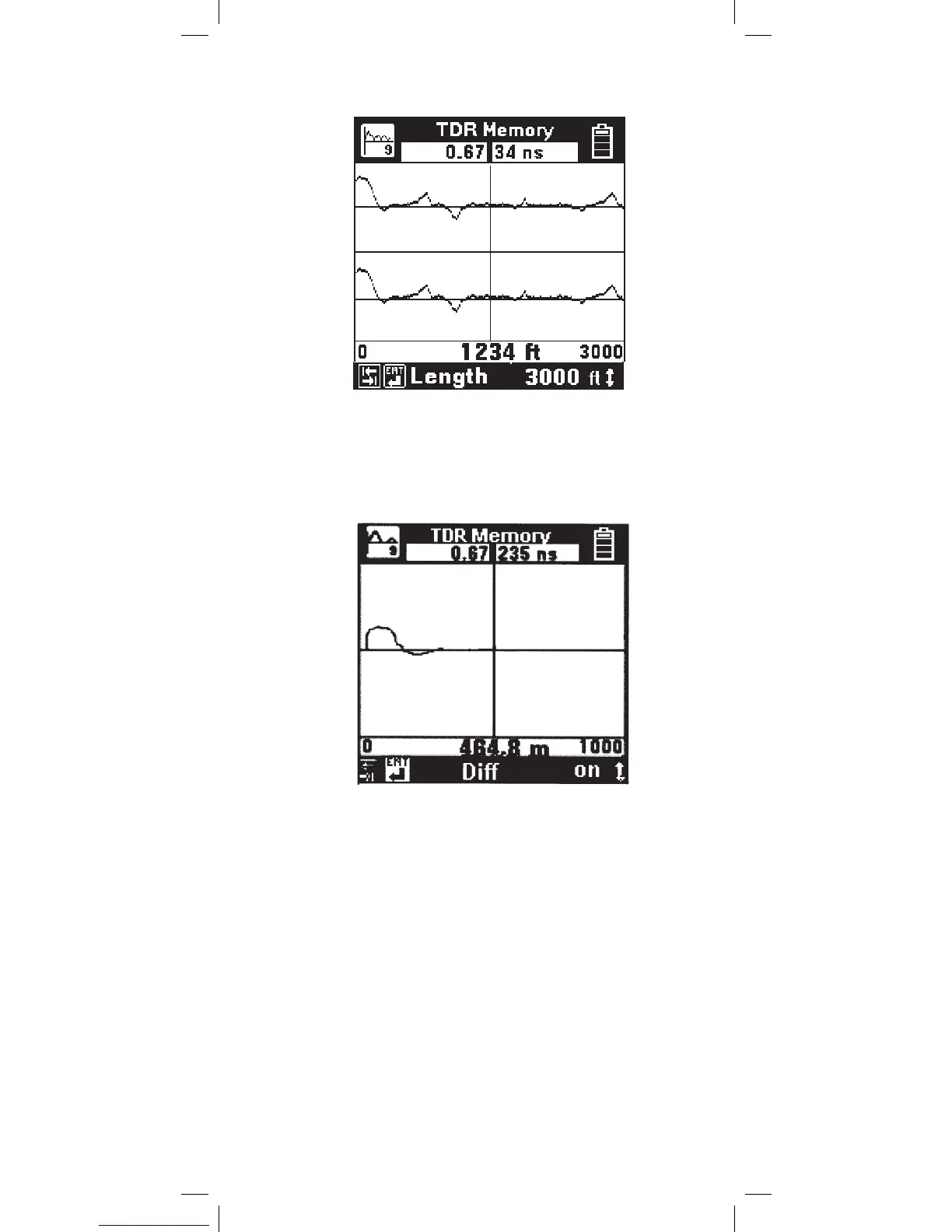

The TDR Memory function includes a Difference
control, accessible from the memory screen by
pressing the [Tab] key. The default is Diff Off. Use
the [Up] or [Down] arrow key to turn Diff on. Diff
combines the live trace with the stored trace to show
the difference in the two readings.
The TDR Memory screen defaults to the control
settings that were active when the stored trace was
saved using the “TDR Save” function.
