A10 Thunder Series 6430(S) ADC/CGN
Overview of 40G Port Splitting
Port Splitting Numbering
In Figure 30, ports 17-20 are 40G Ethernet ports that are renumbered in the following way after the
split:
• Port 17 will have four 10G ports that are numbered as port 17, port 21, port 25, and port 29.
• Port 18 will have four 10G ports that are numbered as port 18, port 22, port 26, and port 30.
• Port 19 will have four 10G ports that are numbered as port 19, port 23, port 27, and port 31.
• Port 20 will have four 10G ports that are numbered as port 20, port 24, port 28, and port 32.

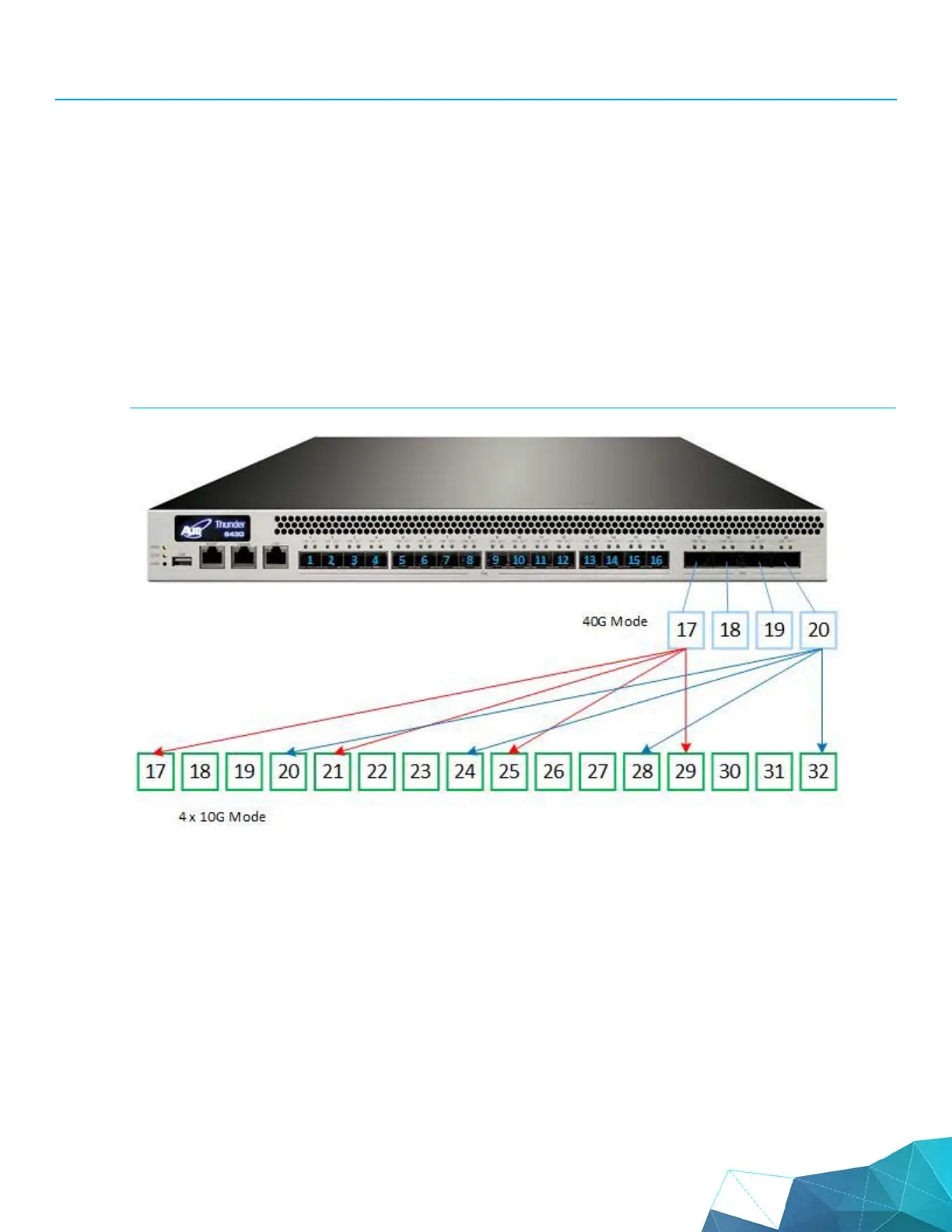

FIGURE 30 Splitting the 40GPorts on a Thunder 6430
Additional Port Splitting Information
After a 40G port is split, a single LED represents the status of any of the four 10G Ethernet ports that is
Up, and the activity indicator displays when any of the four 10G ports is active.
When configuring split ports, all 40G ports are split at the same time; mixing 4x10G ports with 40G
ports is not supported.
The GUI displays an individual LED for each one of the four 10G ports.
