A10 Thunder Series 6430(S) ADC/CGN
Rack-Mount Installation

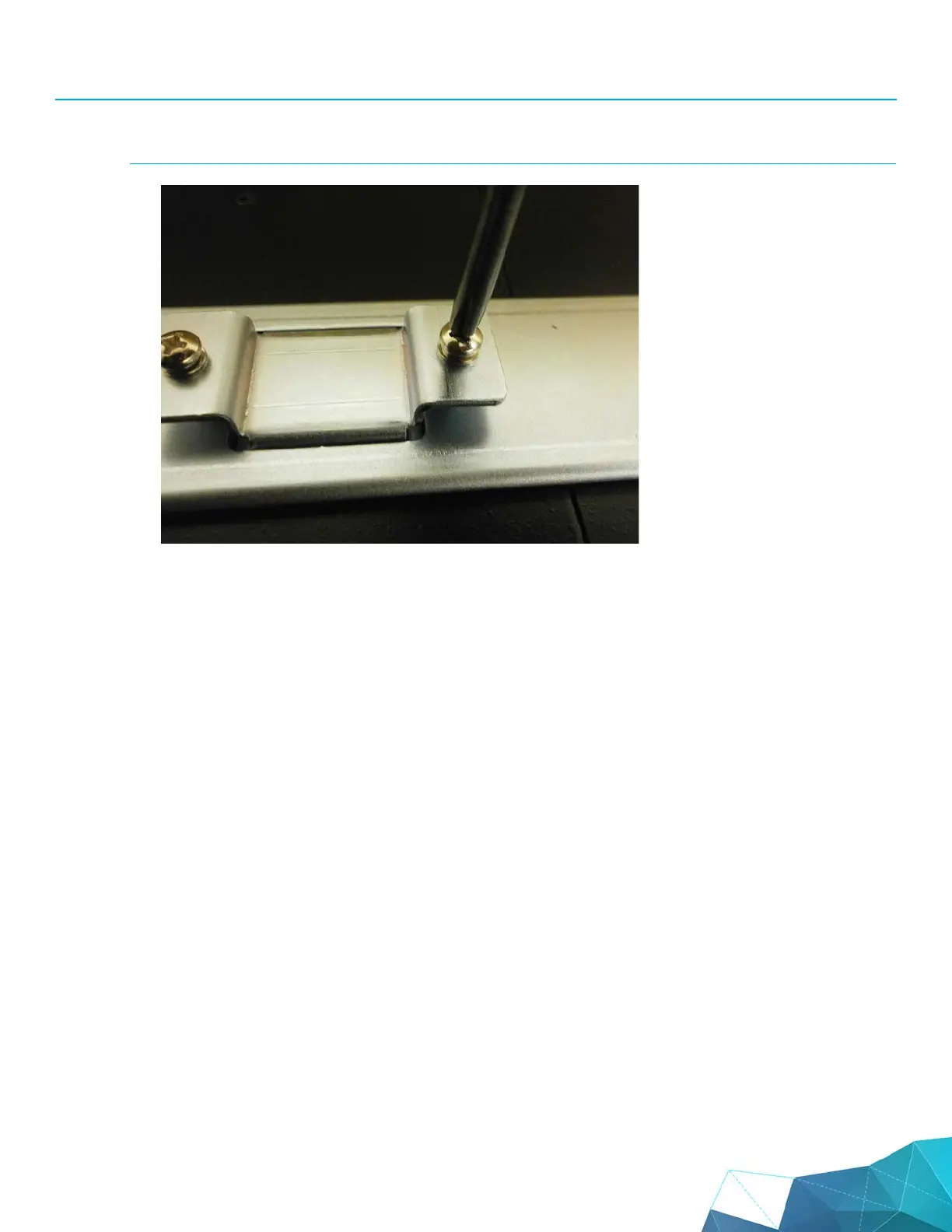

FIGURE 6 Remove end brackets
Attach the Inner Rails to the Chassis
To attach the inner rails to the chassis.
1. Align either one of the inner rails over the 10 screw holes in the side of the device chassis, as
shown in the figure below.
2. Use the #2 Phillips head screwdriver to remove the flat-head screws that are under the screw
holes in the inner rail from the chassis.
3. Use the flat-head screws to attach the inner rail to the chassis.
