A10 Thunder Series - Removing a Fan Module; Inserting a Fan Module

A10 Thunder Series 6430(S) ADC/CGN
Removing a Fan Module
page 26
Removing a Fan Module
Follow the steps below to remove a fan module:
1. Loosen the screws on either end of the Fan module the needs replacing. (Figure 21
)
2. Holding the two loose screws, pull the fan module away from the chassis. (Figure 22
)

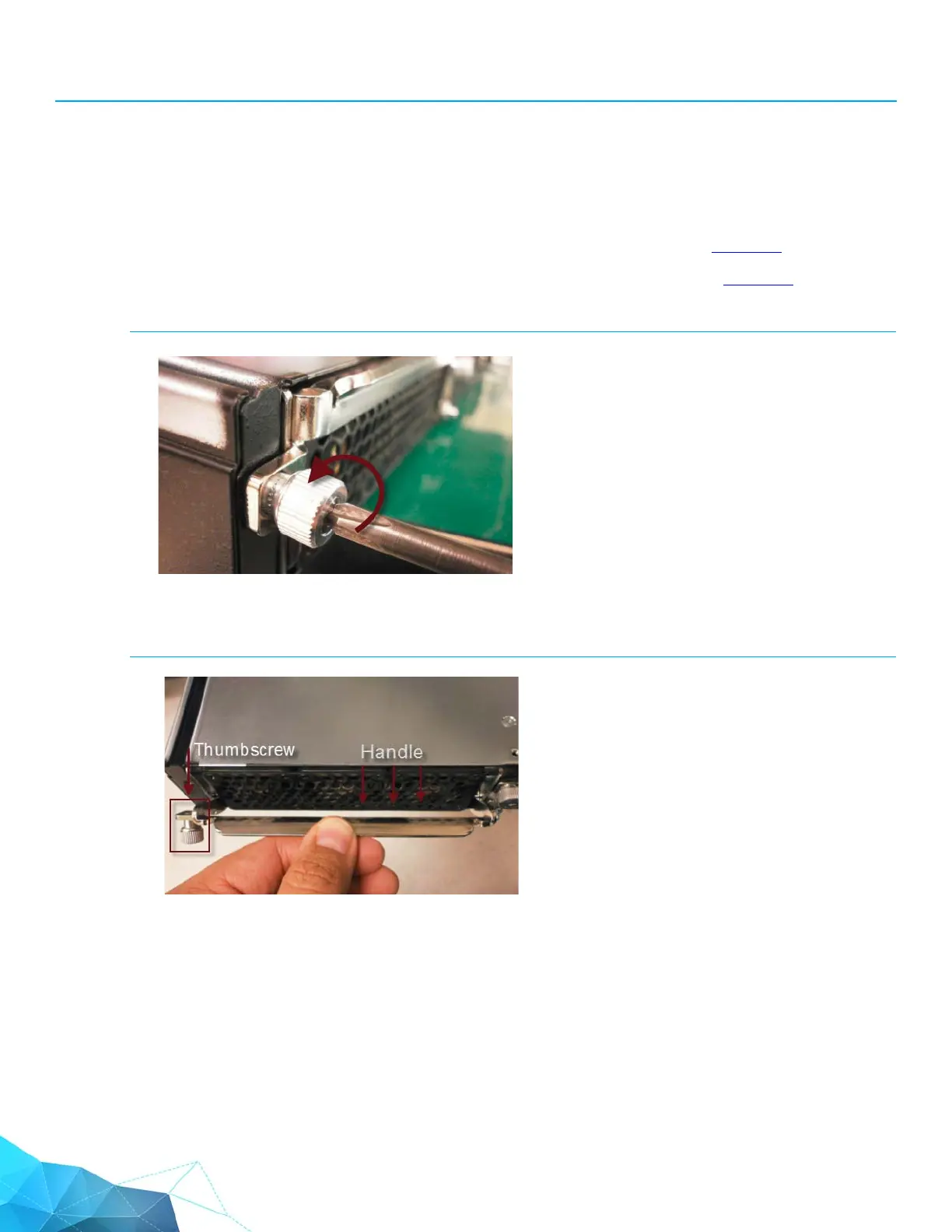

FIGURE 21 Removing a Fan Module - Step 1
FIGURE 22 Removing a Fan Module - Step 2
Inserting a Fan Module
Follow the steps below to insert a fan module:
1. Push the new fan module into its slot.
