page 31
A10 Thunder Series 6430(S) ADC/CGN
DC Power Supply Installation

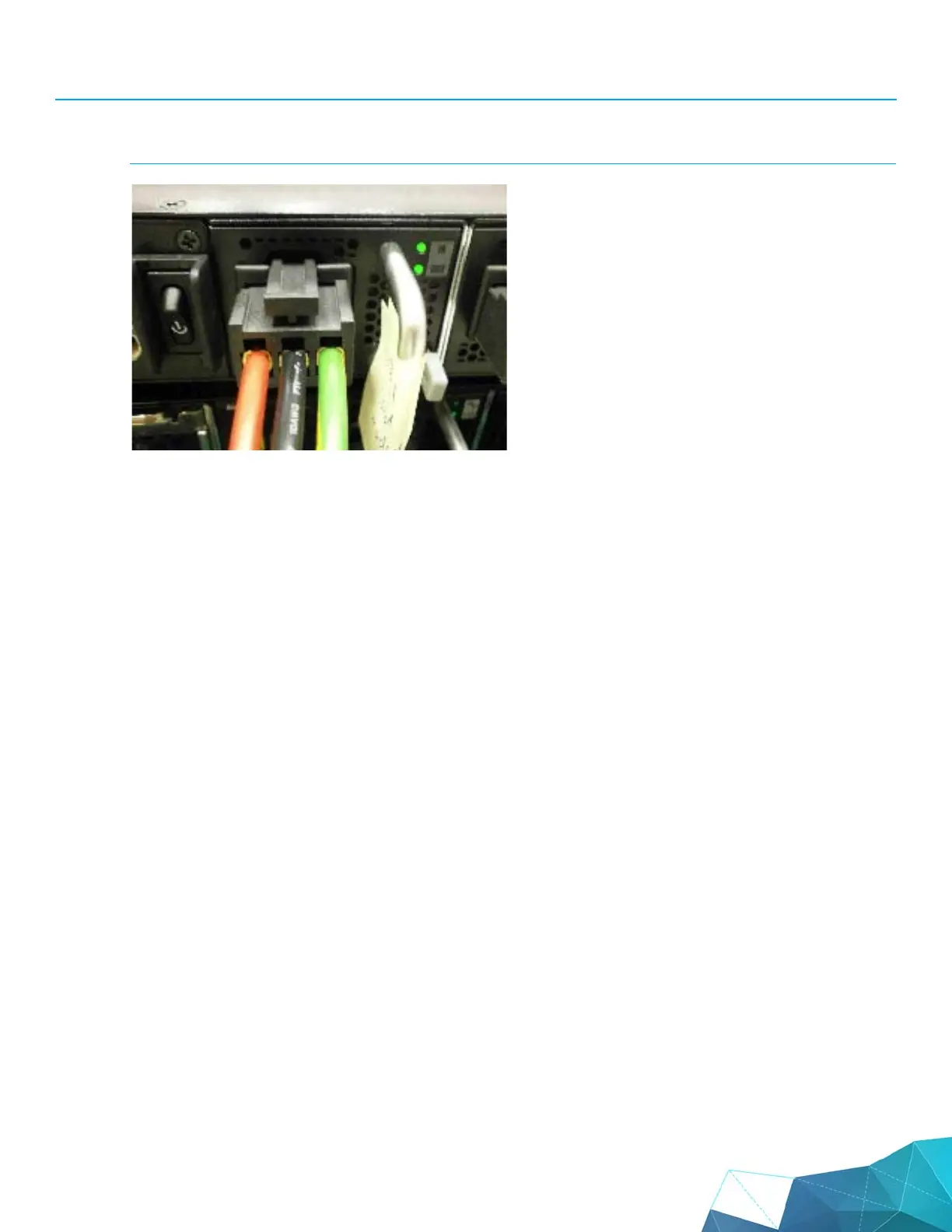

FIGURE 25 Example of DC Power Supply (Assembled - Cable Inserted)
DC Power Supply Installation
Refer to the following instructions and figures for this procedure. (Also see figures on previous page.)
1. Attach Green wire to ground.
2. Attach BLACK -48 volt wire to -48 volt pin on DC power source.
3. Attach RED return wire to return pin on DC power source.
4. Insert DC cable connector.
