ABB 2600T Series Operating Instructions

2600T Series Pressure transmitters | OI/266/PB-EN Rev. E 11
4 Opening the box

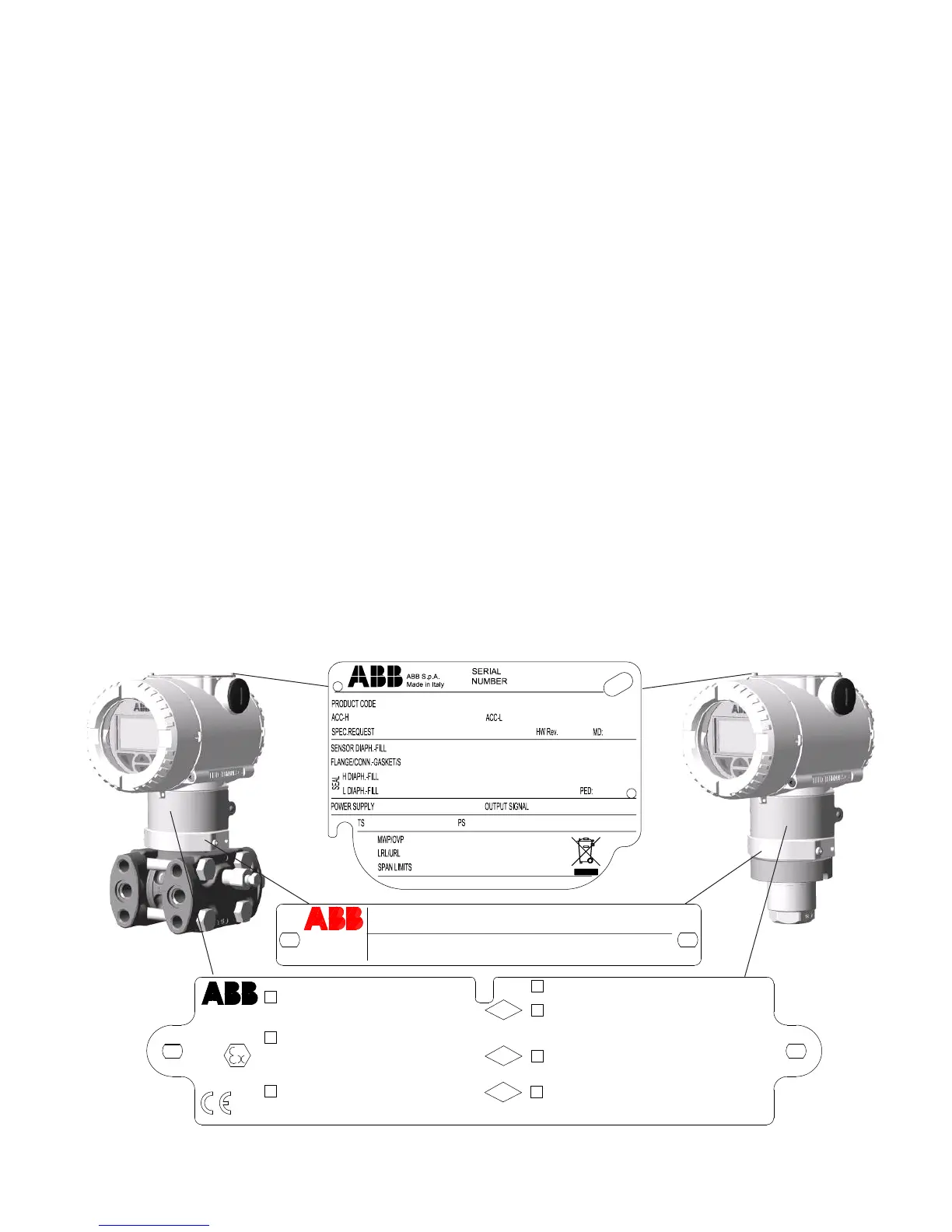

Figure 3: Product identification
IS/Sec. Intrinseque (Entity) CL I, ZONE 0 AEx/Ex ia IIC T6,T5,T4
CL I/DIV1/GP ABCD IS - CL II/DIV1/GP EFG - CLIII DIV1 when
conn. per dwg DH 3173 ENCL 4X "FISCO Field Instrument"-"DUAL SEAL"
II 1 G Ex ia IIC T6 - II 1/2 G Ex ia IIC T6 -
II 1 D Ex iaD 20 T85°C and II 1/2 D Ex iaD 21 T85°C
for electrical parameters see cert. FM09ATEX0024X
IP67 - IECEx FME09.0003X "FISCO Field Instrument"
II 3 G Ex nL IIC T6 - II 3 D Ex tD A22 IP67 T85°C
Ui = 42Vdc Ii < 25mA Ci < 13nF Li < 0,22mH
for electrical parameters see cert. FM09ATEX0025X
IECEx FME09.0004X "FNICO Field Instrument"
General Purpose IP67 Max.Supply Voltage 42 Vdc
XP (US) CL I/DIV1/GP ABCD, DIP CL II, III /DIV1/GP EFG,
XP (Canada) CL I/DIV1/GP BCD, DIP CL II, III /DIV1/GP EFG,
CL I, ZONE 1, AEx/Ex d IIC T4 -50°C<Ta<+85°C
ENCL 4X T AMB=85°C "Seal not required" - "DUAL SEAL"
ABB S.p.A.
Lenno (Co) Italy
0474
0722
APPROVED
FM
II 1/2 G Ex d IIC T6 - II 1/2 D Ex tD A21 IP67
T85°C FM09ATEX0023X - IECEx FME09.0002X
(-50°C<Ta<+75°C) POWER SUPPLY 42 Vdc/2W Max
CUS
CL I, ZONE 2 AEx nC IIC T6,T5,T4
CL I, ZONE 2 Ex nL IIC T6,T5,T4
CL I/DIV2/GP ABCD NIFW when connected per drawing
DH 3173 ENCL 4X "FNICO Field Instrument" - "DUAL SEAL"
APPROVED
FM
CUS
APPROVED
FM
CUS
A
B
C
2600T
Tag
Number
Calib.
Range
PRESSURE TRANSMITTER
4 Opening the box
4.1 Identification
The instrument is identified by the data plates shown in Figure 3.
The certification plate (ref. A): contains the certification related
parameters for use in Hazardous area.
The Nameplate (ref. B), always made of AISI 316 ss, provides
information concerning the model code, maximum working
pressure, range and span limits, power supply, output signal,
diaphragms material, fill fluid, range limit, serial number, maximum
process working pressure (PS) and temperature (TS).
The Tag plate, instead, provides customer tag number and
calibrated range.
Both certification and tag plates are supplied self-adhesive
attached to the electronics housing, as standard. Option I2 allows
to select these plates as metal AISI 316 ss fastened to the
electronics housing with rivets.
The instrument may be used as a pressure accessory (category
III) as defined by the Pressure Equipment Directive 2014/68/EU.
In this case, near the CE mark, you will find the number of the
notified body (0474) that have verified the compliance. 266
pressure transmitters are in compliance with EMC 2004/108/CE*.
The certification plate (ref.A) shown here is issued by ABB
S.p.A, 22016 Tremezzina, Italy, with the numbers:
— FM09ATEX0023X or IECEx FME 16.0002X (Ex d)
— FM09ATEX0024X or IECEx FME 16.0003X (Ex ia)
— FM09ATEX0025X or IECEx FME 16.0004X (Ex ic) (Ex nA)
CE-Identification number of the notified bodies to Pressure
Equipment Directive: 0474, to ATEX certification: 0722, to
IECEx certification: IT/CES/QAR07.0001.
The certification plate (ref.A) shown here may also be issued
for:
— ABB-APR, 32425 Minden, Germany. CE-Identification
number of the notified bodies to Pressure Equipment Directive:
0045, to ATEX certification: 0044, to IECEx certification: DE/
TUN/QAR06.0012/01.
— ABB India Limited, 560058 Bangalore, India.
CE-Identification number of the notified bodies to ATEX
certification: 1725.
— ABB Engineering Limited, Shanghai 201319, P.R. China.
CE-Identification number of the notified bodies to ATEX
certification: 1725.
CE-Identification number of the notified bodies to ATEX
certification: 1725.
* C and F sensors on gauge and absolute pressure transmitters are in compliance with IEC61000-4-6 with B criteria
