ABB 2600T Series Operating Instructions

20 OI/266/PB-EN Rev. E | 2600T Series Pressure transmitters
5 Mounting
5.6 Mounting a P style pressure transmitter
(266G, 266A, 266H, 266N)
The pressure transmitter can be mounted directly on the
manifold.
A mounting bracket for wall or pipe mounting (2” pipe) is also
available as an accessory.
Ideally, the pressure transmitter should be mounted in a
vertical position to prevent subsequent zero shifts.

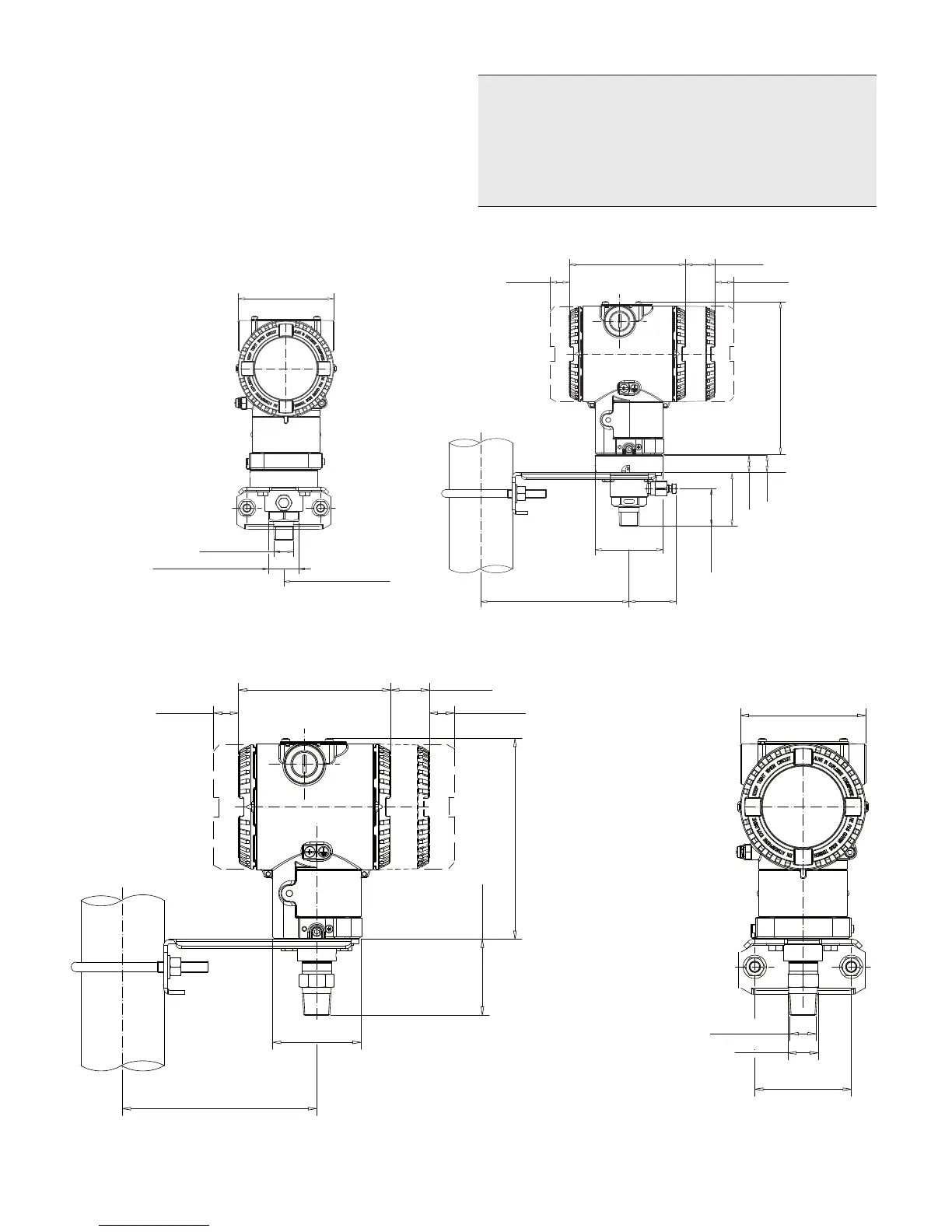

Figure 17: Model 266H or 266N Hi overload resistant P-Style transmitter with barrel housing installed on a 2”pipe with optional bracket
(B1 carbon steel or B2 Stainless Steel 316L)
91 (3.58)
1/2 - 14 NPT
117 (4.60)
32 (1.26) width across
flats of exagon
113 (4.45) 29 (1.14)
18 (0.71) 18 (0.71)
145 (5.71)
Ø65 (2.56)
140 (5.54)
49 (1.93)
39 (1.54)
54 (2.13)
16 (0.63)
18 (0.71)
70 (2.75)
91 (3.58)
CH 22
1/2 - 14 NPT
111 (4.37) 29 (1.14)
18 (0.71) 18 (0.71)
145 (5.71)
140 (5.54)
55 (2.17) Max.
Ø65 (2.56)
Figure 18: Model 266G or 266A P-Style transmitter with barrel housing installed on a 2”pipe with optional bracket
(B1 carbon steel or B2 Stainless Steel 316L)
Important. If the transmitter is installed inclined with respect to the
vertical, the filling liquid exerts hydrostatic pressure on the
measuring diaphragm, resulting in a zero shift. In such an event, the
zero point can be corrected via the zero push-button or via the “set
PV to zero” command. Please refer to the [configuration section] for
further details. For transmitters without diaphragm seals the Vent /
Drain considerations below should be taken into consideration.
