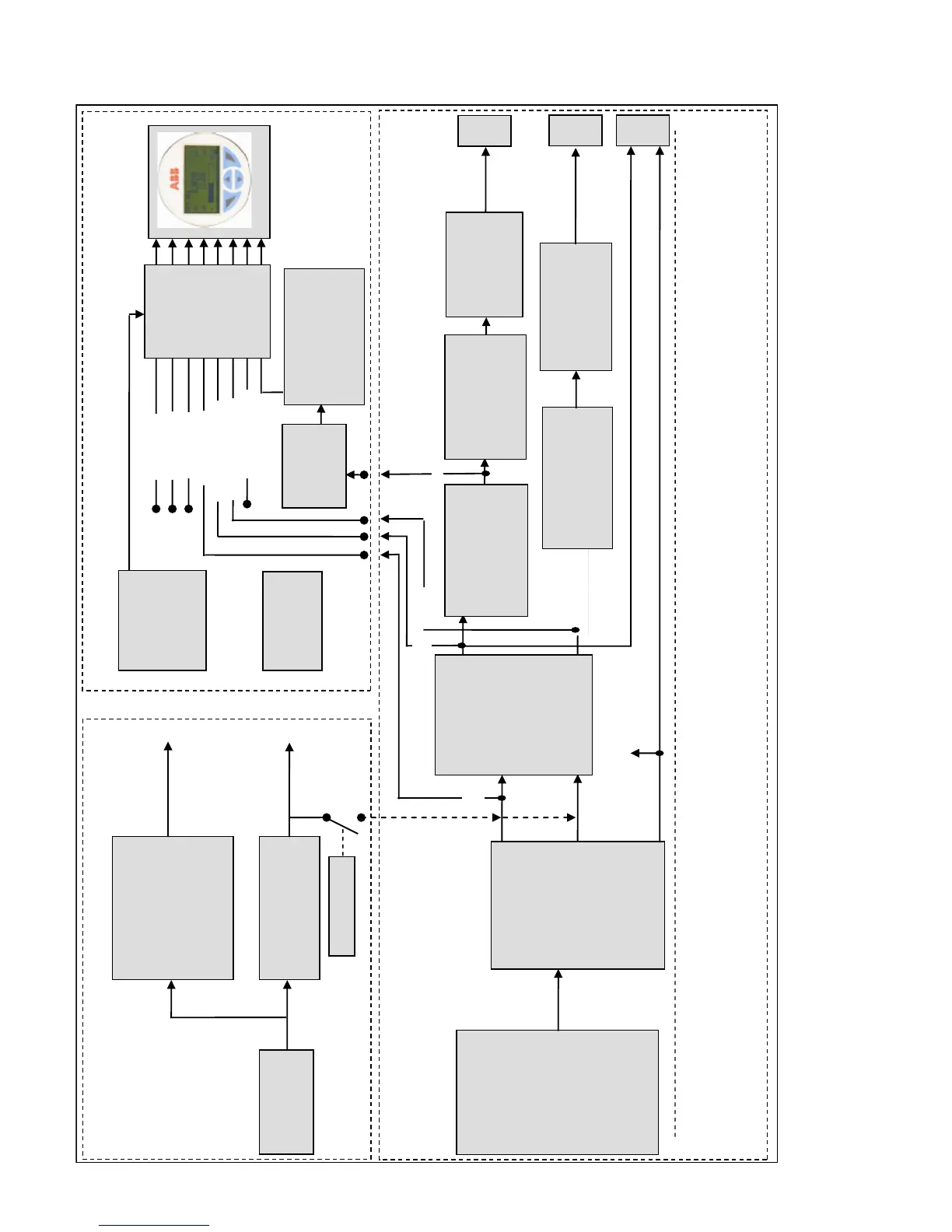

14 Device Block Diagram
14 Device Block Diagram
STATIC_P_SEC
_VALUE_1 (PV)
SECONDARY_VALUE_1
[SECONDARY_VALUE_1_UNIT]
Sensor
SENSOR_TYPE
SENSOR_SERIAL_NUMBER
INTEGRATION_TIME
SENSOR_HI_LIM
SENSOR_LO_LIM
SENSOR_UNIT
STATIC_P_SENSOR_HI_LIM
STATIC_P_SENSOR_LO_LIM
STATIC_P_SENSOR_UNIT
HIGH_TEMPERATURE_LIMIT
LOW_TEMPERATURE_LIMIT
TEMPERATURE_UNIT
SENSOR_VAL
(0)
TRIMMED_
VALUE (1) (MV)
STATIC_P_
TRIM_VALUE (MV)
TEMPERATURE
[TEMPERATURE_UNIT]
SECONDARY_VALUE_1 (2)
(PV)
Static P Scaling/Ranging
STATIC_P_SCALE_IN_100%
STATIC_P_SCALE_IN_0%
STATIC_P_SEC_VALUE_1_UNIT
PdP Output Scale
SCALE_OUT_100%
SCALE_OUT_0%
PRIMARY_VALUE_UNIT
Static P Output Scale
STATIC_P_SCALE_OUT_100%
STATIC_P_SCALE_OUT_0%
STATIC_PRESSURE_UNIT
STATIC_PRESSURE
[STATIC_PRESSURE_UNIT]
PRIMARY_
VALUE (4)
[PRIMARY_
VALUE_UNIT]
Calibration
/ Trimming
CAL_POINT_HI
CAL_POINT_LO
CAL_MIN_SPAN
STATIC_P_CAL_POINT_HI
STATIC_P_CAL_POINT_LO
STATIC_P_MIN_SPAN
SENSOR_TEMP_TRIM_VALUE
PRESSURE TRANSDUCER BLOCK
PV_Bias/ Offset
[PV = MV +/- BIAS_VALUE]
DESIRED_PRIMARY_VALUE
RESET_BIAS
BIAS_VALUE
DESIRED_STATIC_P_VALUE
RESET_STATIC_P_BIAS
STATIC_P_BIAS_VALUE
SECONDARY_VALUE_2 (3)
PdP PV Scaling/
Ranging
SCALE_IN_100%
SCALE_IN_0%
SECONDARY_VALUE_1_UNIT
Transfer Function
LIN_TYPE
LOW_FLOW_CUT_OFF
FLOW_LINEAR_SQRT_POINT
TAB_xxxx
HMI TRANSDUCER BLOCK
VOLUME calculation SECONDARY_VALUE_2 = (SECONDARY_VALUE_1 - SCALE_IN_0) / (SCALE_IN_100 - SCALE_IN_0) PRIMARY_VALUE = (LIN (SECONDARY_VALUE_2) * (SCALE_OUT_100 - SCALE_OUT_0)) + SCALE_OUT_0
PRESSURE or LEVEL calculation SECONDARY_VALUE_2 = (SECONDARY_VALUE_1 - SCALE_IN_0) / (SCALE_IN_100 - SCALE_IN_0) PRIMARY_VALUE = (SECONDARY_VALUE_2) * (SCALE_OUT_100 - SCALE_OUT_0)) + SCALE_OUT_0 FLOW calculation SECONDARY_VALUE_2 = (SECONDARY_VALUE_1 - SCALE_IN_0) / (SCALE_IN_100 - SCALE_IN_0) PRIMARY_VALUE = (SQRT (SECONDARY_VALUE_2) * (SCALE_OUT_100 - SCALE_OUT_0)) + SCALE_OUT_0
AI_1
AI_2
AI_3
*** TEMPERATURE to HMI TB
PILD_Status
PILD_COMMAND
NORMAL
PILD_DETECTION_TIME
PILD_MAX_PRESSURE_DEV
TRAINING
PILD_DETECTION_TIME
PILD_RETRAIN
PILD_TRAIN_TIME
PILD_TRAIN_RETRIES
PILD_SENSITIVITY
PILD_BAND_AUTOTUNING
PILD_BAND_HI
PILD_BAND_LO
PILD_OUTPUT
PILD_TRAIN_OUTPUT
PILD_AFFECT_PV
ADVANCED DIAGNOSTIC TRANSDUCER BLOCK / PILD
Transfer
Function
HMI_LIN_TYPE
Output Scale
HMI_VARIABLE_RANGE_100%
HMI_VARIABLE_RANGE_0%
HMI_VARIABLE_RANGE_UNIT
HMI_VARIABLE_RANGE_DEC
HMI_General
HMI_LANGUAGE
HMI_CONTRAST
From AI_1_OUT
From AI_2_OUT
From AI_3_OUT
HMI Selection
HMI_VARIABLE_1 HMI_VARIABLE_2 HMI_VARIABLE_3 HMI_VARIABLE_4
HMI_Setting
HMI_MODE
HMI_LINE_1 HMI_LINE_2
HMI_BARGRAPH HMI_SEQUENCE
*** TEMPERATURE
from PRESSURE TB
TRIMMED_VALUE
SECONDARY_VALUE_1
STATIC_P_SEC_VAL_1
