2600T Series Pressur
e transmitters |
OI/266/PB-EN Rev
. E 9
3 T
ransmitter Overview
3 T
ransmitter overview
3.
1 T
ransmit
ter components o
ver
view

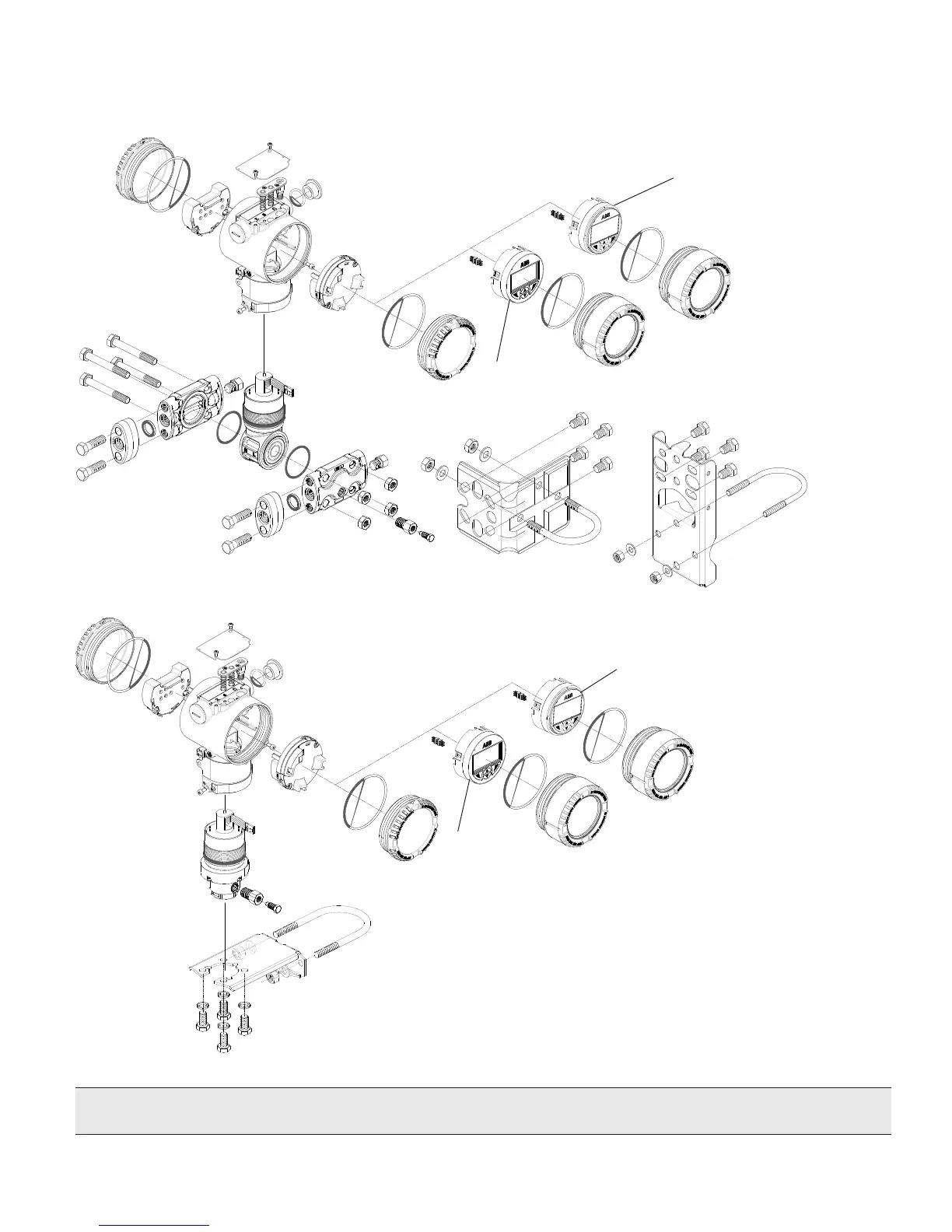

Figure 1: Dif
ferential pressure transmitter components
Figure 2: Gauge / absolute pr
essure transmitter components
1
2
1
2
1
-
TTG display (L5 option)
2
-
LCD display (L1 option)
Important.
These two pictures show only two differ
ent kinds of transmitters equipped with Barrel type housing. Please consider that DIN
housings are available.
