ABB 2600T Series Operating Instructions

2600T Series Pressure transmitters | OI/266/PB-EN Rev. E 21
5 Mounting
5.6.1 B1 and B2 Barrel housing bracket details
1 – U-bolt
2 – U-bolt fixing bolt and washer
3 – Transmitter fixing bolts
4 – B1 or B2 bracket
1
3
4
2

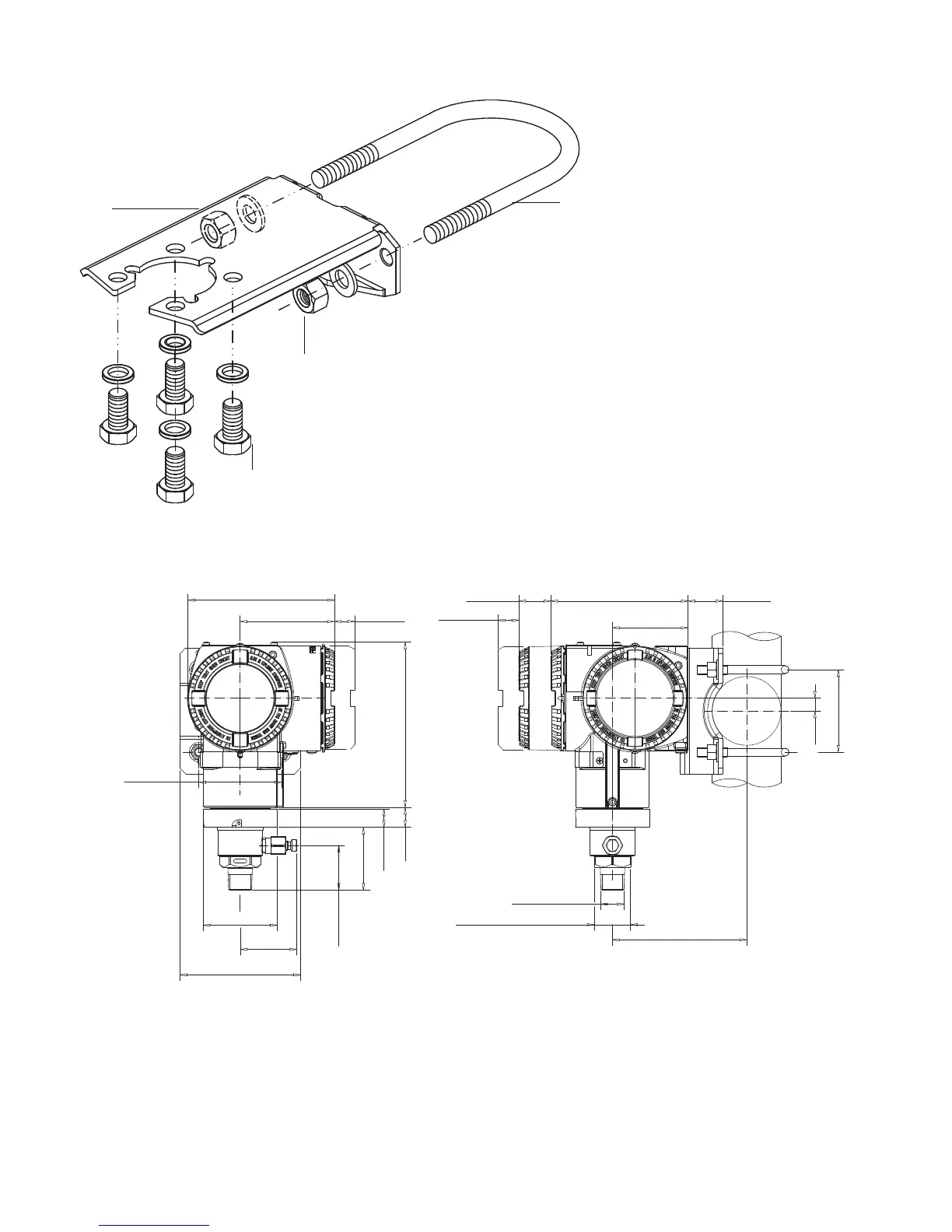

Figure 19: Pipe and wall mounting bracket kit (B1 and B2) for P style transmitter with Barrel housing
66 (2.60)
1/2 - 14 NPT
122 (4.80)29 (1.14)
18 (0.71)
117 (4.60)
30 (1.19)
72 (2.83)
11 (0.43)
128 (5.04)
85 (3.35)
18 (0.71)
145 (5.71)
54 (2.13)
Ø65 (2.56)
39 (1.54)
16 (0.63)
18 (0.71)
72 (2.83)
49 (1.93)
105 (4.13)
32 (1.26) width across
flats of exagon
Figure 20: Model 266H or 266N Hi overload resistant P-Style transmitter with DIN housing installed on a 2”pipe with optional bracket
(B2 Stainless Steel 316L)
