ACS 160 User’s Manual 89
4007 ACT1 INPUT SEL
Source for actual value 1 (
ACT1).
1 = AI 1
Analogue input 1 is used as actual value 1.
2 = AI 2
Analogue input 2 is used as actual value 1.
4008 ACT2 INPUT SEL
Source for actual value 2 (
ACT2).
1 = AI 1
Analogue input 1 is used as actual value 2.
2 = AI 2
Analogue input 2 is used as actual value 2.
4009 ACT1 MINIMUM
Minimum value for actual value 1 (
ACT1). Refer to Figure 22 and to Group 13 parameters for analogue input
minimum and maximum settings.
4010 ACT1 MAXIMUM
Maximum value for actual value 1 (
ACT1). Refer to Figure 22 and to Group 13 parameters for analogue
input minimum and maximum settings.
4011 ACT2 MINIMUM
Minimum value for actual value 2 (
ACT2). Refer to parameter 4009.
4012 ACT2 MAXIMUM
Maximum value for actual value 2 (
ACT2). Refer to parameter 4010.

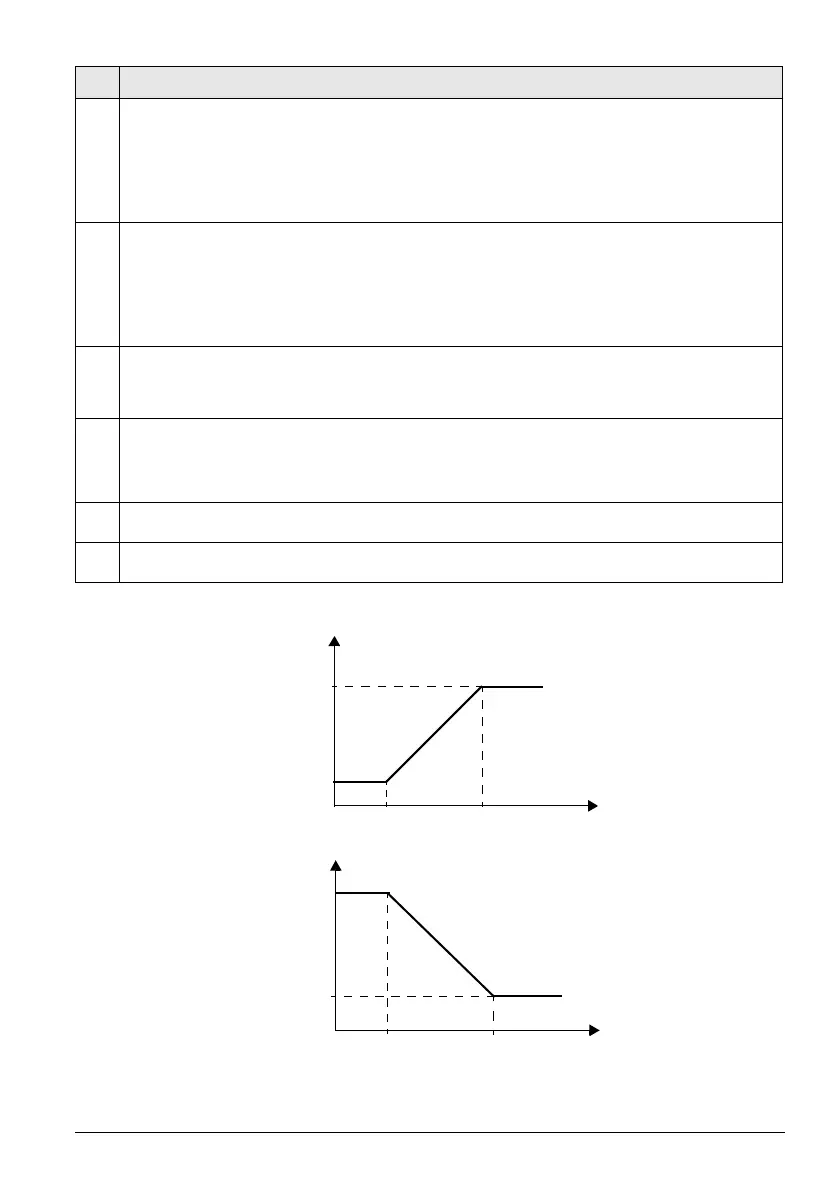

Figure 22 Actual value scaling. The range of the analogue input signal is set by parameters 1301
and 1302 or parameters 1304 and 1305, depending on the analogue input used.
Code Description
ACT1 (%)
Analogue input signal
ACT1 MINIMUM
AI min
AI max
ACT1 (%)
Analogue input signal
ACT1 MINIMUM
ACT
1 MAXIMUM
AI min AI max
ACT1 MAXIMUM
