 Time and date mode
In the Time and date mode, you can:
• show or hide the clock
• change date and time display formats
• set the date and time
• enable or disable automatic clock transitions according to the daylight saving
changes
• start, stop, change the direction and switch between local and remote control.
The assistant control panel contains a battery to ensure the function of the clock
when the panel is not powered by the drive.
How to show or hide the clock, change display formats, set the date and time
and enable or disable clock transitions due to daylight saving changes

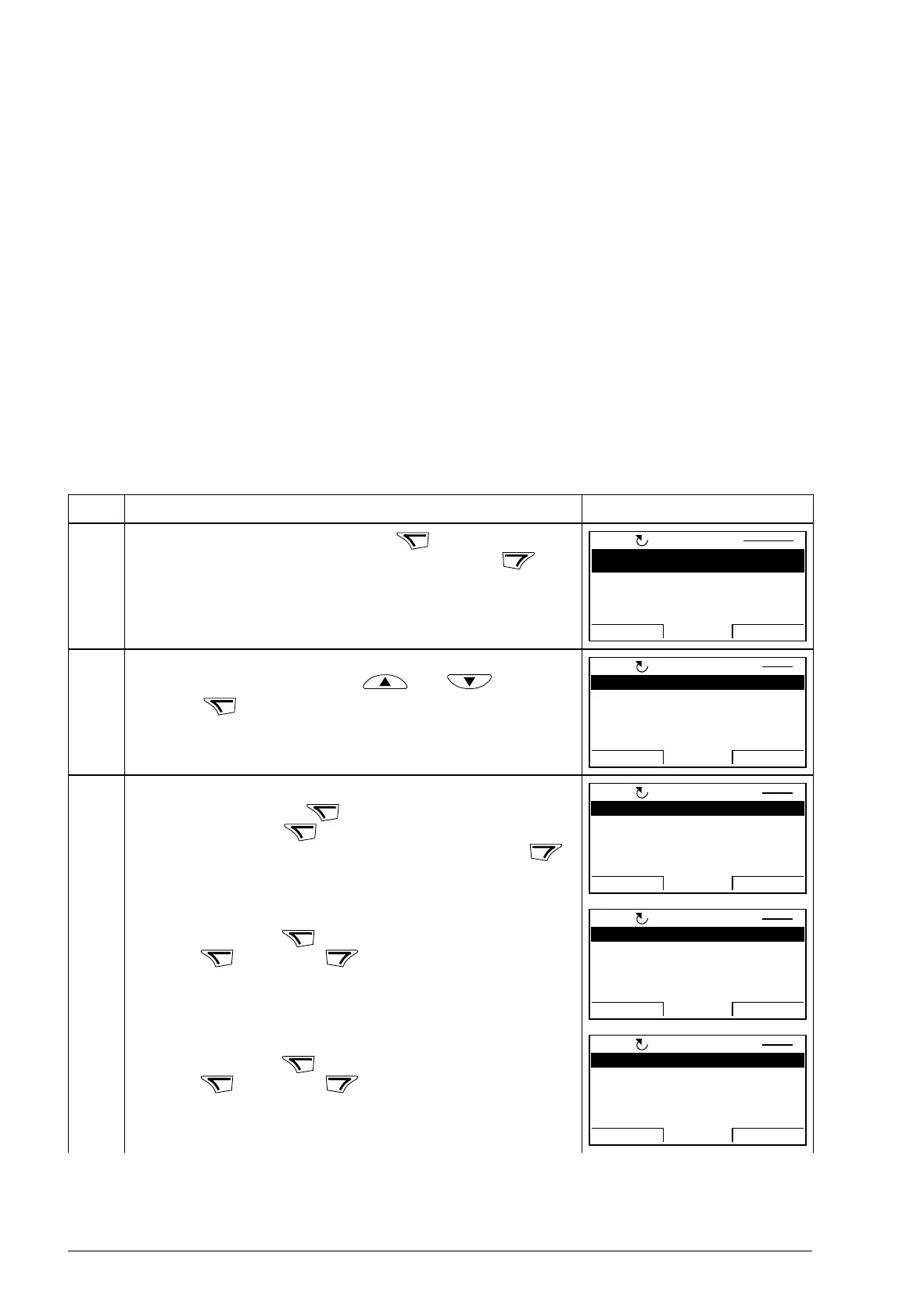

Step Action Display
1. Go to the Main menu by pressing if you are in the
Output mode, otherwise by pressing repeatedly until
you get to the Main menu.
2. Go to the Time and date mode by selecting TIME &
DATE on the menu with keys and , and
pressing .
3. • To show (hide) the clock, select CLOCK VISIBLILITY
on the menu, press , select Show clock (Hide
clock) and press , or, if you want to return to the
previous display without making changes, press .
• To specify the date format, select DATE FORMAT on
the menu, press and select a suitable format.
Press to save or to cancel your changes.
• To specify the time format, select TIME FORMAT on
the menu, press and select a suitable format.
Press to save or to cancel your changes.
MENU
EXIT
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT
ENTER
00:00
LOC
MAIN MENU 1
ENTER
CLOCK VISIBILITY
TIME FORMAT
DATE FORMAT
SET TIME
SET DATE
EXIT
SEL
00:00
LOC
TIME & DATE 1
SEL
SEL
EXIT
Show clock
Hide clock
EXIT
SEL
00:00
LOC
CLOCK VISIB 1
SEL
OK
CANCEL
dd.mm.yy
mm/dd/yy
dd.mm.yyyy
mm/dd/yyyy
CANCEL
OK
00:00
LOC
DATE FORMAT 1
SEL
OK
CANCEL
24-hour
12-hour
CANCEL
SEL
00:00
LOC
TIME FORMAT 1
