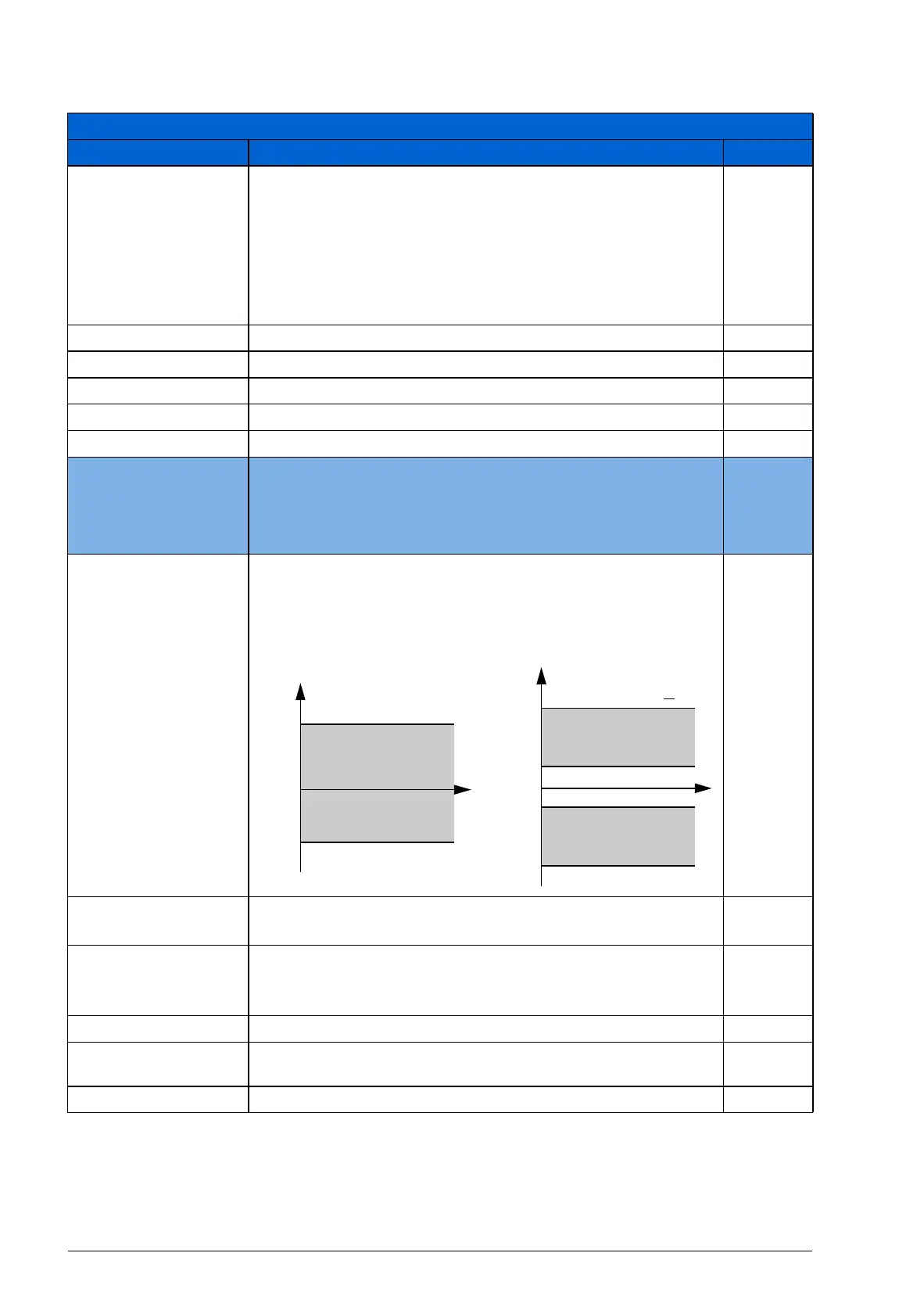

ABB ACS355 - 20 Limits

214 Actual signals and parameters
DI1 Start/stop command through digital input DI1.
When parameter 1001 EXT1 COMMANDS value is
COUNTER STOP: 1 = start. Stop when counter limit defined
by parameter 1905 COUNTER LIMIT has been exceeded.
When parameter 1001 value is COUNTER START: 1 =
stop. Start when counter limit defined by parameter 1905
has been exceeded.
1
DI2 See selection DI1.2
DI3 See selection DI1.3
DI4 See selection DI1.4
DI5 See selection DI1.5
ACTIVATE External start/stop command, eg through fieldbus 6
20 LIMITS Drive operation limits.
Speed values are used in vector control and frequency
values are used in scalar control. The control mode is
selected by parameter 9904 MOTOR CTRL MODE.
2001 MINIMUM
SPEED
Defines the allowed minimum speed.
A positive (or zero) minimum speed value defines two
ranges, one positive and one negative.
A negative minimum speed value defines one speed range.
0rpm
-30000…
30000 rpm
Minimum speed 1 = 1 rpm
2002 MAXIMUM
SPEED
Defines the allowed maximum speed. See parameter 2001
MINIMUM SPEED.
E: 1500 rpm
/
U: 1800 rpm
0…30000 rpm Maximum speed 1 = 1 rpm
2003 MAX
CURRENT
Defines the allowed maximum motor current. 1.8 · I
2N
A
0.0…1.8 · I
2N
A Current 1 = 0.1 A
All parameters
No. Name/Value Description Def/FbEq
2002
2001
0
Speed
2001 value is < 0
2001 value is > 0
2002
2001
0
-(2001)
-(2002)
t
t
Allowed
speed range
Allowed
speed range
Allowed
speed range
Speed
