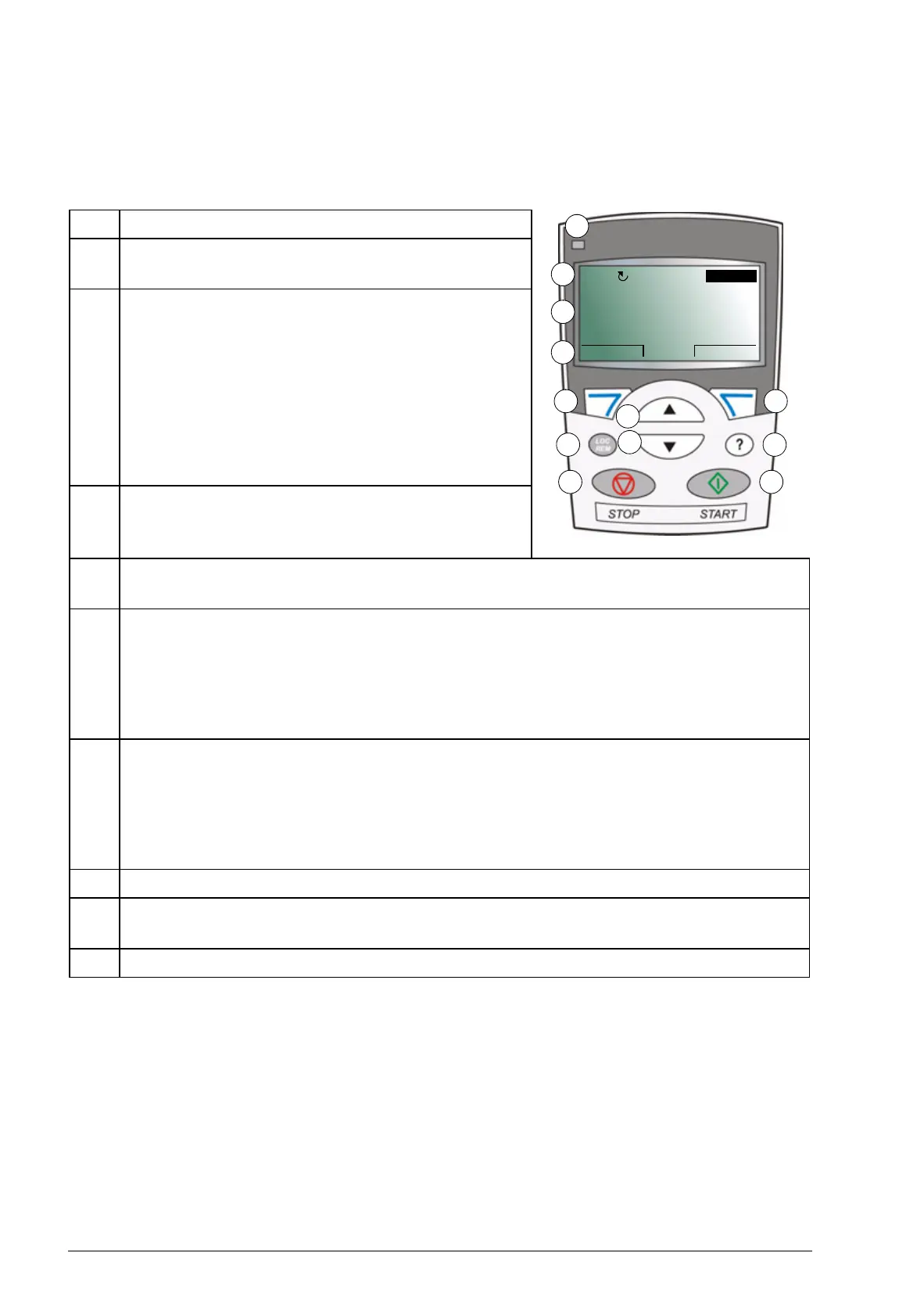

No. Use
1 Status LED – Green for normal operation. If LED is
flashing, or red, see section LEDs on page 356.
2 LCD display – Divided into three main areas:
f. Status line – variable, depending on the mode of
operation, see section Status line on page 89.
g. Center – variable; in general, shows signal and
parameter values, menus or lists. Shows also
faults and alarms.
h. Bottom line – shows current functions of the two
soft keys and, if enabled, the clock display.
3 Soft key 1 – Function depends on the context. The
text in the lower left corner of the LCD display
indicates the function.
4 Soft key 2 – Function depends on the context. The text in the lower right corner of the
LCD display indicates the function.
5 Up –
• Scrolls up through a menu or list displayed in the center of the LCD display.
• Increments a value if a parameter is selected.
• Increments the reference value if the upper right corner is highlighted.
Holding the key down changes the value faster.
6 Down –
• Scrolls down through a menu or list displayed in the center of the LCD display.
• Decrements a value if a parameter is selected.
• Decrements the reference value if the upper right corner is highlighted.
Holding the key down changes the value faster.
7 LOC/REM – Changes between local and remote control of the drive.
8 Help – Displays context sensitive information when the key is pressed. The information
displayed describes the item currently highlighted in the center of the display.
9 STOP – Stops the drive in local control.
