ABB ACS55 - Dimensions

FR 111

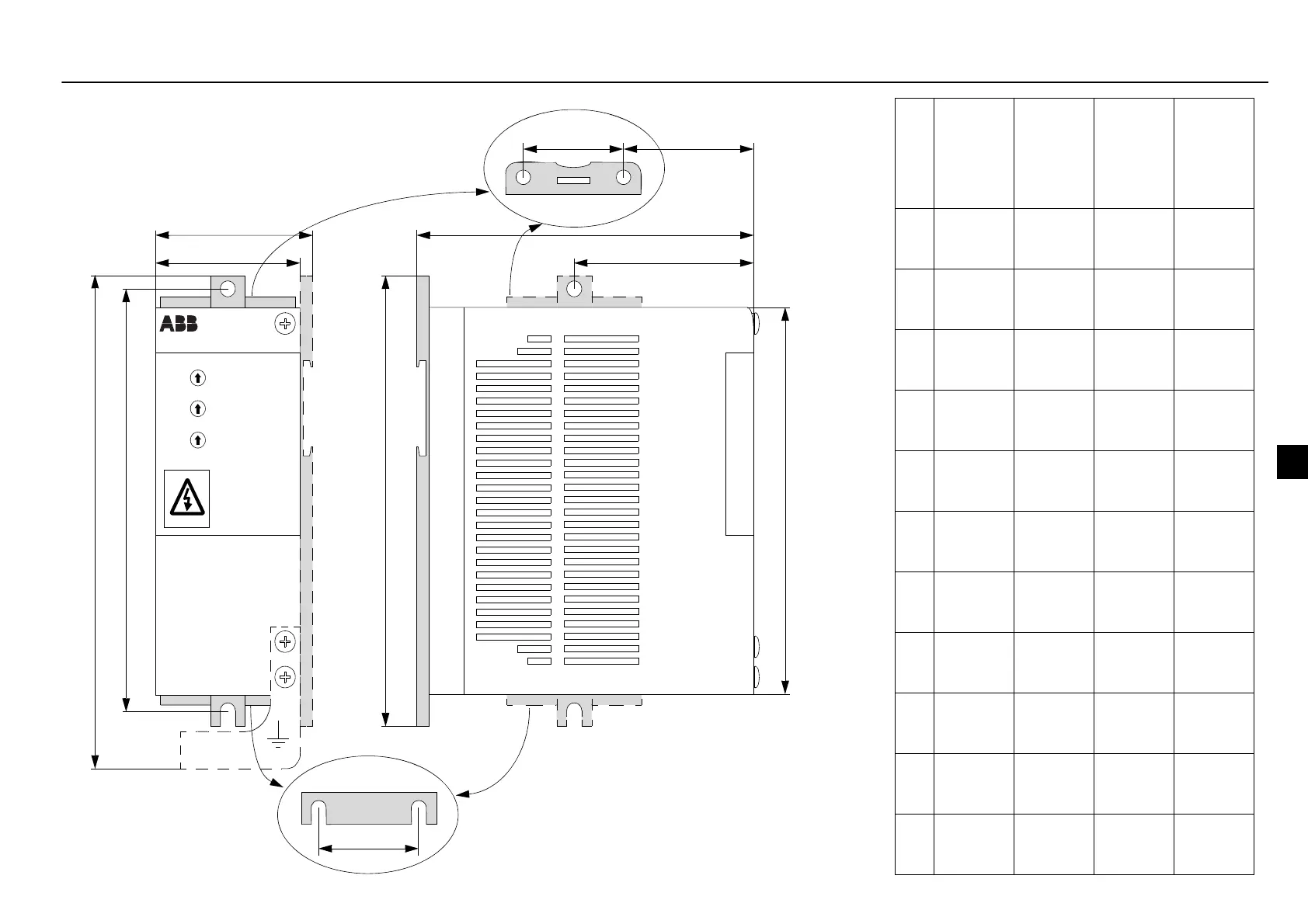

Dimensions
f
e
Taille
A
mm
(in.)
Taille
B
mm
(in.)
Taille
C
mm
(in.)
Taille
D
mm
(in.)
a53
(2.09)
72
(2.83)
74
(2.91)
74
(2.91)
b45
(1.77)
67.5
(2.66)
70
(2.76)
70
(2.76)
c128
(5.04)
128
(5.04)
159
(6.26)
159
(6.26)
d67.5
(2.66)
67.5
(2.66)
--
e- - 77
(3.03)
77
(3.03)
f- - 40
(1.57)
40
(1.57)
g- - 40
(1.57)
40
(1.57)
h183
(7.20)
183
(7.20)
- 230
(9.06)
i156
(6.14)
156
(6.14)
182
(7.17)
214
(8.43)
j170
(6.69)
170
(6.69)
194
(7.64)
226
(8.90)
k146.5
(5.77)
146.5
(5.77)
171
(6.73)
203
(7.99)
b
a
d
c
g
h
i j
k
