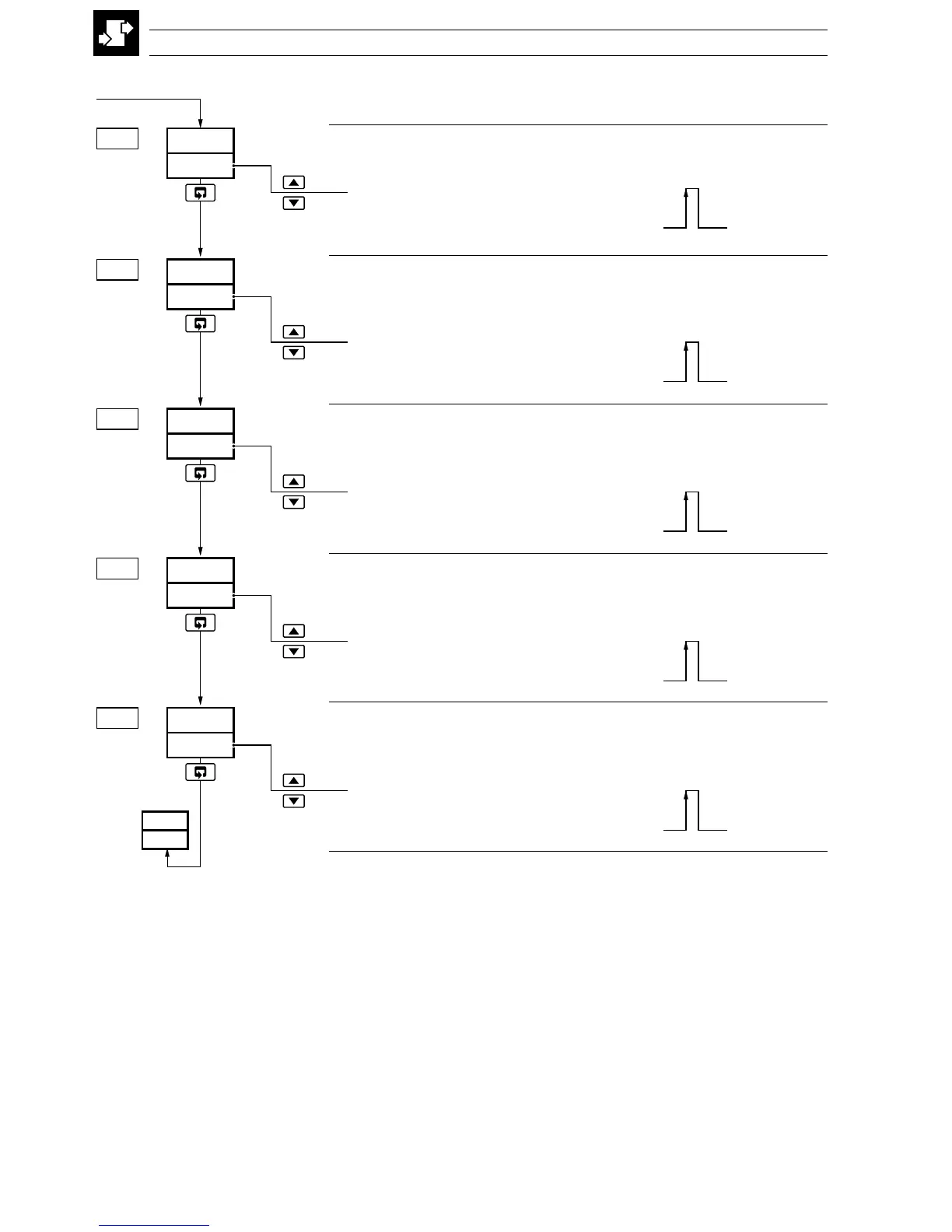

Auto Mode Selection Source
Select the digital source used to activate auto mode.
See Rear Fold-out/ Table C –
Digital Sources.
Tune Parameter Source 1 (Gain Scheduling)
Determine the digital source used to select the proportional 1 and integral
1 terms as the tuning parameters.
See Rear Fold-out/ Table C –
Digital Sources.
Tune Parameter Source 2 (Gain Scheduling)
Determine the digital source used to select the proportional 2 and integral
2 terms as the tuning parameters.
See Rear Fold-out/ Table C –
Digital Sources.
Tune Parameter Source 3 (Gain Scheduling)
Determine the digital source used to select the proportional 3 and integral
3 terms as the tuning parameters..
See Rear Fold-out/ Table C –
Digital Sources.
Tune Parameter Source 4 (Gain Scheduling)
Determine the digital source used to select the proportional 4 and integral
4 terms as the tuning parameters.
See Rear Fold-out/ Table C –
Digital Sources.
Return to top of page.
OFF
A.5rC
A.18
OFF
t4.Sr
A...22
OFF
t3.5r
A...21
OFF
t2.Sr
A..20
OFF
t1.Sr
A.19
•2
•2
•2
Select
Pb-1
and
IAt.1
•2
Manual
•1Auto
LEVA
CNtL
•1
Select
Pb-2
and
IAt.2
•1
Select
Pb-3
and
IAt.3
•1
Select
Pb-4
and
IAt4
•1
•1 Digital inputs are active when a volt free contact is closed or a low TTL signal is applied.
•2
PB–x and INt.x values are set in Level 2 – see Section 3.2, Tune/Proportional Band x and Integral Action
Time x. This function is not applicable to Auto/Manual Station or Indicator templates.
